• Model NO.：PE01
• Compressive Strength (For Crushing)：>300MPA
• Crushing Degree：Coarse Crusher
• Finished Surface：Outer Surface Process
• Certification：ISO
• Condition：New
• Color：Yellow
• Name：Jaw Crusher
• Series：PE Series
• Structure：Casting,Welding Body
• Spare Parts：Available
• Function：Primary,Secondary Jaw Crusher
• Quality：High Level
• Certificate：ISO
• Transport Package：by Container or Loose Packing
• Specification：high manganese steel
• Trademark：GTCO
• Origin：China
• HS Code：847420900
• Production Capacity：2,Day

Basic Info.

Model NO. PE01 Compressive Strength (For Crushing) >300MPA Crushing Degree Coarse Crusher Finished Surface Outer Surface Process Certification ISO Condition New Color Yellow Name Jaw Crusher Series PE Series Structure Casting/Welding Body Spare Parts Available Function Primary/Secondary Jaw Crusher Quality High Level Certificate ISO Transport Package by Container or Loose Packing Specification high manganese steel Trademark GTCO Origin China HS Code 847420900 Production Capacity 2/Day

Product Description

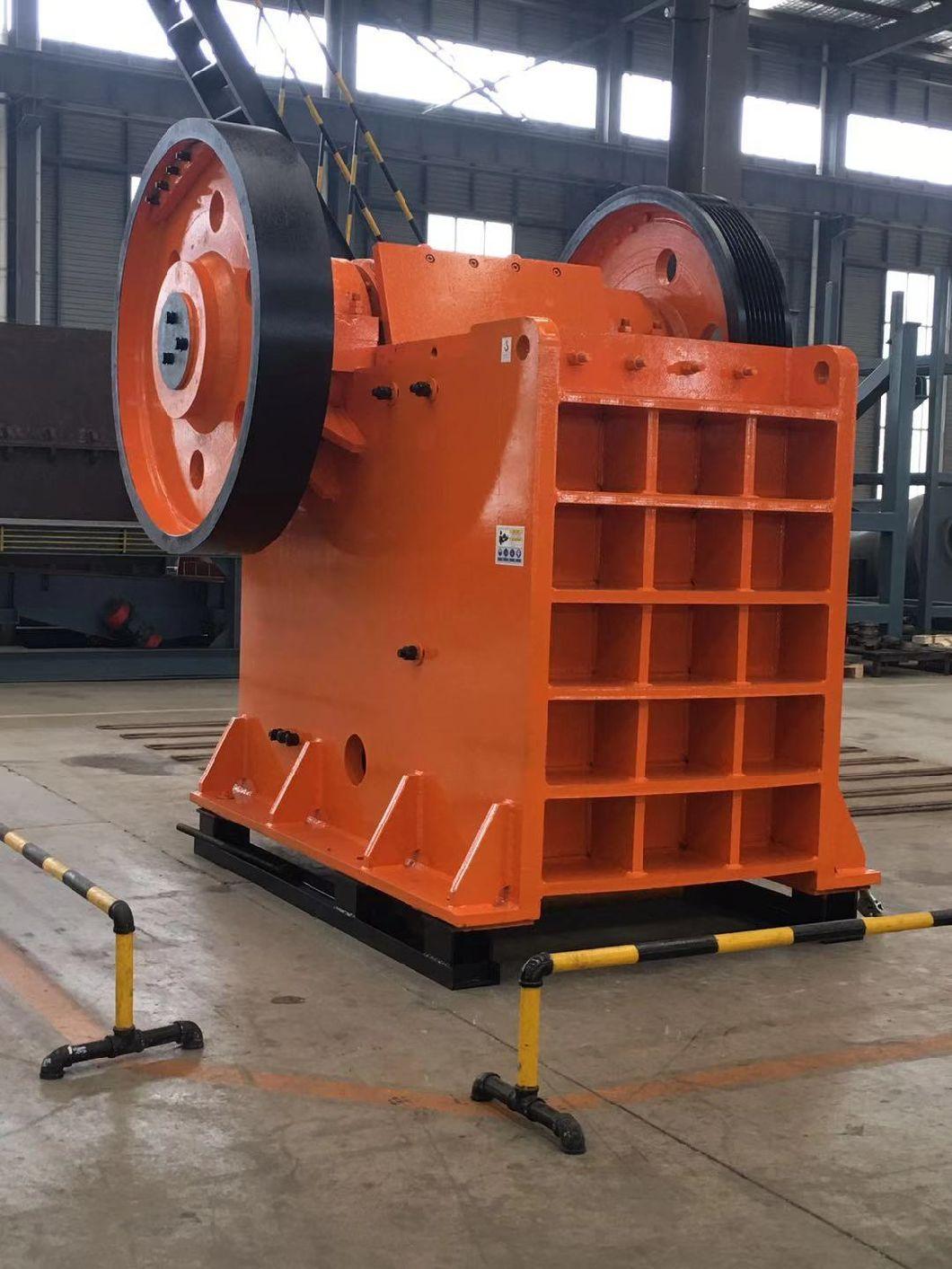

Stone Jaw Crusher Price Stone Crushing Machine Manufacturer PE 600X900 Jaw Crusher

Crusher :
The motor passes the motive power to the eccentric shaft end's pulley, making the eccentric shaft under
the lead of the motor do rotatory movement according to the demanded speed rate; the dynamic jaw
head propelled by the eccentric shaft's eccentric force makes regular fixed track compressive movement
to break the materials.

Characters of Jaw Crusher:
1. Feeding Granularity is big; breaking ratio is big; Outturn is large.
2. The operation is stable and reliable, fixed with over-loading protective device.
3. The energy consumption is low, the wearing parts are little, and the maintenance cost is low.
4. The adjusting parts are reinforced emphatically and finish machining, reducing repair frequence.
5. The axle bearing adopts with labyrinth seall, prolonging its operation life.
6. Using modules lubrication, which is easier and more convenient for the maintenance.
7. The belt pulley adopts new locking craft, keyless connection, making maintenance more convenient.

Applicability of Jaw Crusher:
1. Widely applied to all sorts of ore, rock, etc., the breaking compressive strength not exceeding 320Mpa.
2. Being widely used in mine, metallurgy, roads and bridges, building materials, water conservancy and
chemical industry etc.




Specifications

Model	Max. Feed Size (mm)	Discharge Size  (mm)	Capacity (t/h)	Motor power (KW)
PE-400X600	≤340	40-90	15-40	30
PE-500X750	≤420	50-100	20-52	55
PE-600X900	≤520	65-130	50-150	75
PE-700X1000	≤600	70-140	80-170	90
PE-750X1060	≤630	80-140	100-180	110
PE-800X1100	≤700	100-200	120-230	110
PE-900X1100	≤800	100-200	130-250	132
PE-900X1200	≤800	100-230	180-280	132
PE-1000X1200	≤900	140-250	200-400	132
PE-1100X1300	≤1000	170-280	300-600	160
PE-1200X1500	≤1100	180-300	400-800	160
PEX-250×1000	≤210	25-60	10-40	30
PEX-250×1200	≤210	25-60	15-50	37
PEX-300×1300	≤250	25-90	20-70	75
PEX-300×1500	≤250	25-120	30-100	75
PEX-500×1500	≤350	25-120		90
PEX-500×2000	≤350	25-120		160

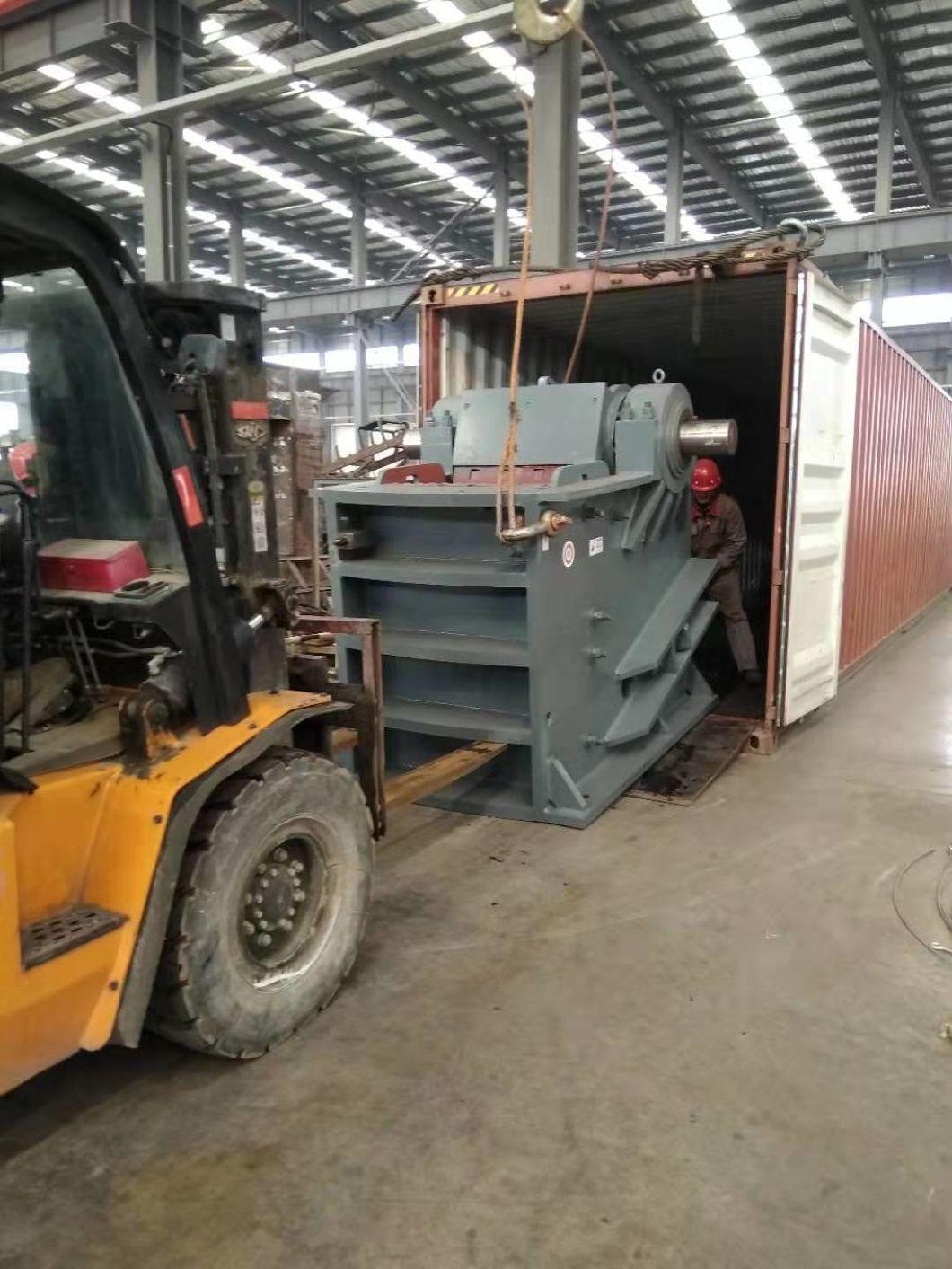

Loading
