• Model NO.：GTG250D
• Grinding Method：Dry and Wet Grind
• Certification：ISO, CE
• Condition：New
• Rated Voltage：220V
• Power：2.2kw,3HP
• Speed：1410rpm
• Weight：70kg
• Transport Package：Wooden Case, Pallet
• Specification：750mmx500mmx800mm
• Trademark：Corediam
• Origin：China
• HS Code：8479109000
• Production Capacity：5000 Pieces,Year

Basic Info.

Model NO. GTG250D Grinding Method Dry and Wet Grind Certification ISO, CE Condition New Rated Voltage 220V Power 2.2kw/3HP Speed 1410rpm Weight 70kg Transport Package Wooden Case, Pallet Specification 750mmx500mmx800mm Trademark Corediam Origin China HS Code 8479109000 Production Capacity 5000 Pieces/Year

Product Description

1. CGM250 Floor Grinder introduction

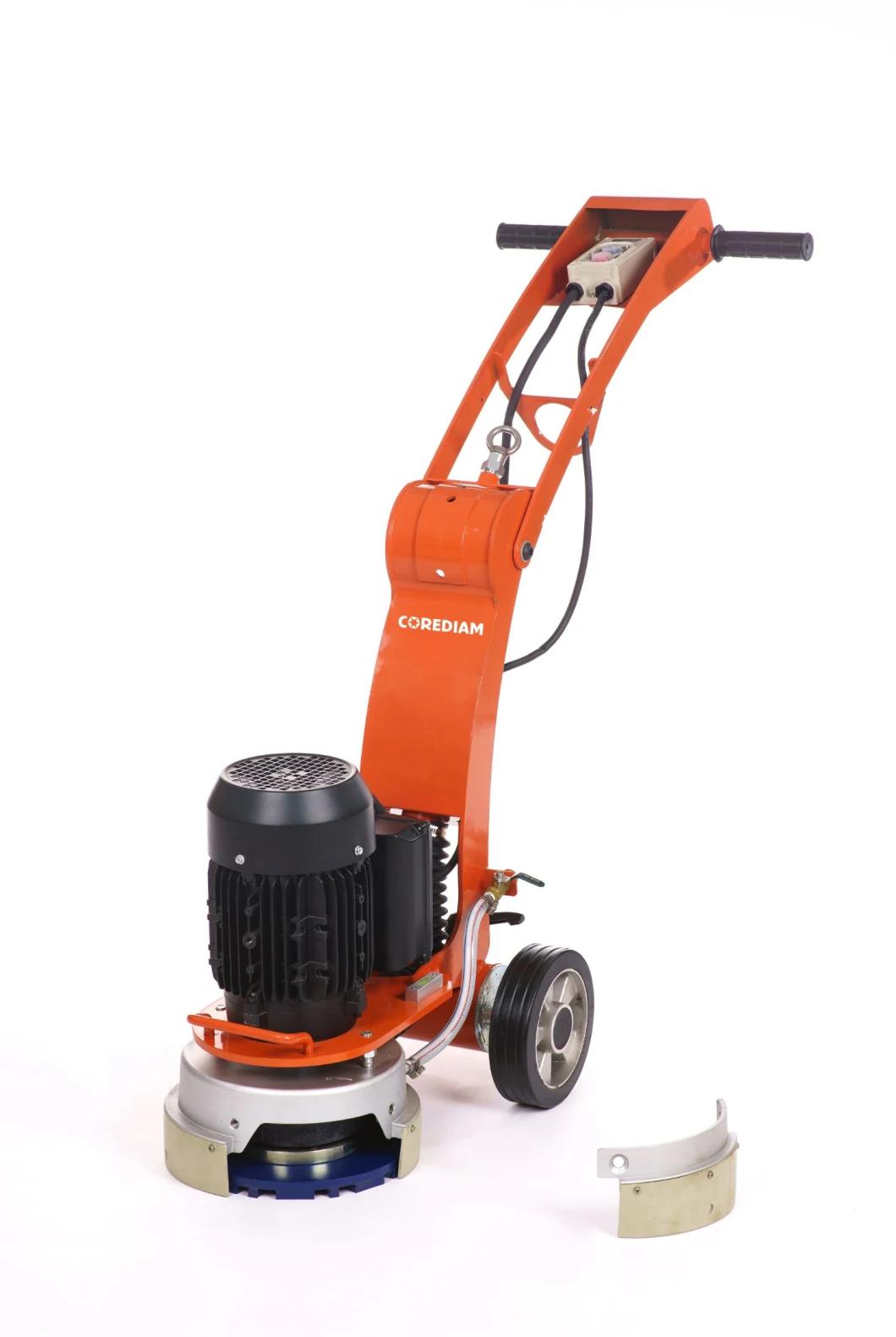

The Floor Grinder is a sturdy, reliable and easy to use the machine.
The Floor Grinder is fitted 2.2kw single phase motor. This motor offers a direct drive to the grinding plate with the incorporation of a flexible coupling between the motor and the plate.
Especially convenient for adjusting the direction of the head to better grind the corner, please refer below picture:



The shroud system is unique in design, automatically adjusting to suit segment height and floor angle. This shroud system, when used in conjunction with an appropriate industrial vacuum unit, eliminates dust loss during grinding. The shroud has 2 removable sections to enable the operator to grind close up to the wall etc.
 Please note that dust loss is possible when this section is removed.The Floor Grinder comes complete with a water connection for wet grinding should this be required. This incorporates a ball valve allowing the operator to regulate the water supply to obtain the best grinding results.The Floor Grinder has a foldable handle which enables it to be easily transported in the trunk of most small vehicles. The rear wheels can also be extended outward should the operator want more stability from the grinder. This requires the use of a 10mm wrench. The operator can also raise or lower the height of the handle to maximize their comfort when using the grinder.And the newly designed lifter system makes the operator handy to use.


2.Specification


Model Spec.	GTG250D
Rated Voltage	220V
Power	2.2KW/3HP
Speed	15000rpm
Plate Type	Standard 250mm Grinding Disc or Grinding Plate
Plate Bolt Types	M12x25 Countersunk socket head
Packing Size	500mmx410mmx410mm
Weight	70kg
Quantity	145pcs./40 container                 70pcs./20container

3.Application

Rough surface grinding different kinds of concrete and masonry materials with superior efficiency.



4.Delivery time

2 week for sample order, and  2-3 weeks for batch orders.



6.Corediam introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing the manufacturing and marketing diamond tools industry. We have the most extensive, innovative, and powerful range of diamond tools for construction, stone, and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
