Marble Block Cutting Machine&Frame Saw

Eaststar Machinery Co., Ltd.
  • After-sales Service：Yes
  • Warranty：Yes
  • Type：CNC Cutting Machine
  • Usage：Jadestone, Cement Brick, Concrete Curb, Granite, Marble
  • Application：Stone Industry
  • Source Voltage：220V

Base Info

  • Model NO.：G-2500
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Control：CNC
  • Certification：CE, SGS
  • Main Motor Power：110kw
  • Blade Quantity：100-120 PCS
  • Transport Package：2*40 Op Container,Set
  • Specification：3200(L)*2500(W)*2050(H)
  • Trademark：Eaststar
  • Origin：Quanzhou, China
  • HS Code：846410
  • Production Capacity：50-1000mm, Hour

Description

NO.major parameters of the equipmentUnitG-2250 max dimensions of blocks can be processedmm3200*2250*2050 Main motor powerKW110 equipment dimensionsmm12425*4950*3800 sawing speedmm/h50-1000 range of the sawmm800 specification of the sawmm4400(or4350)*(≥1.5) water consumptionL/Min/Pcs11 saw installation quantitypiece100-120 weightTon58

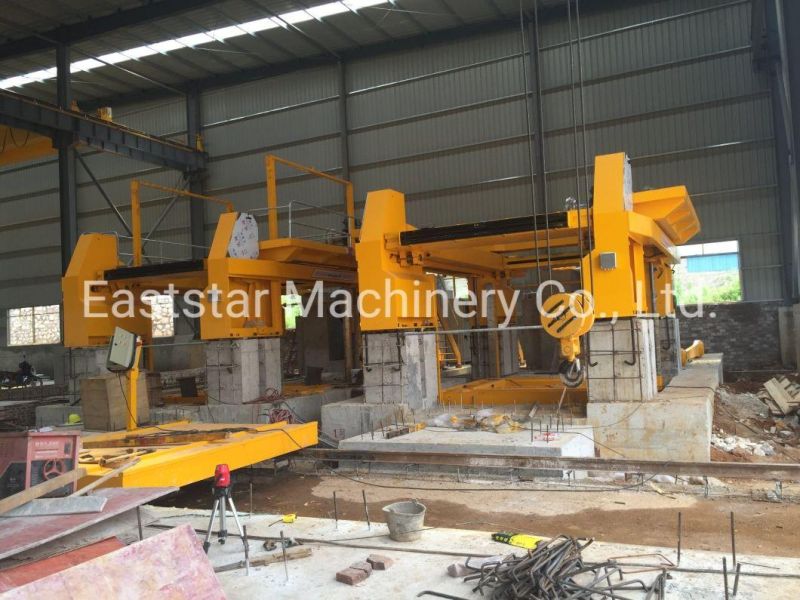

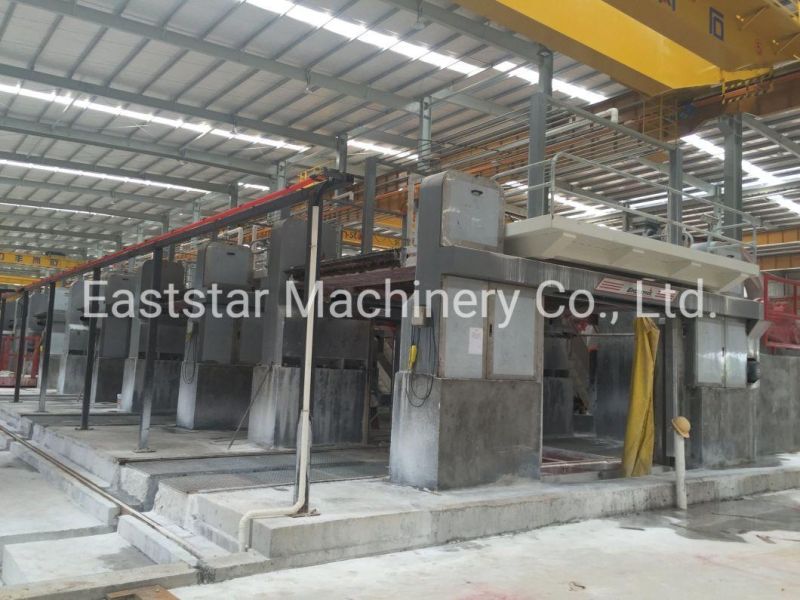

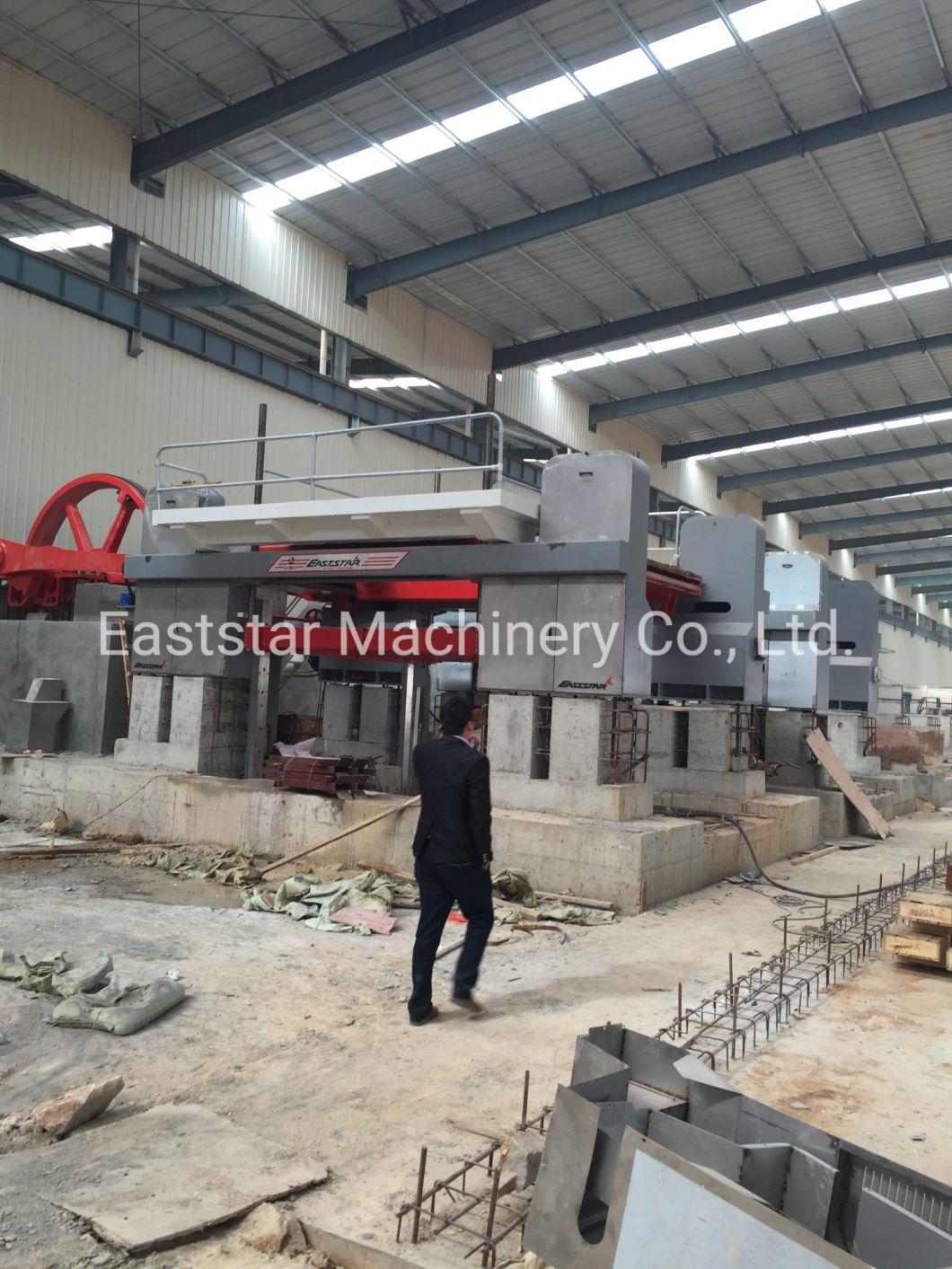

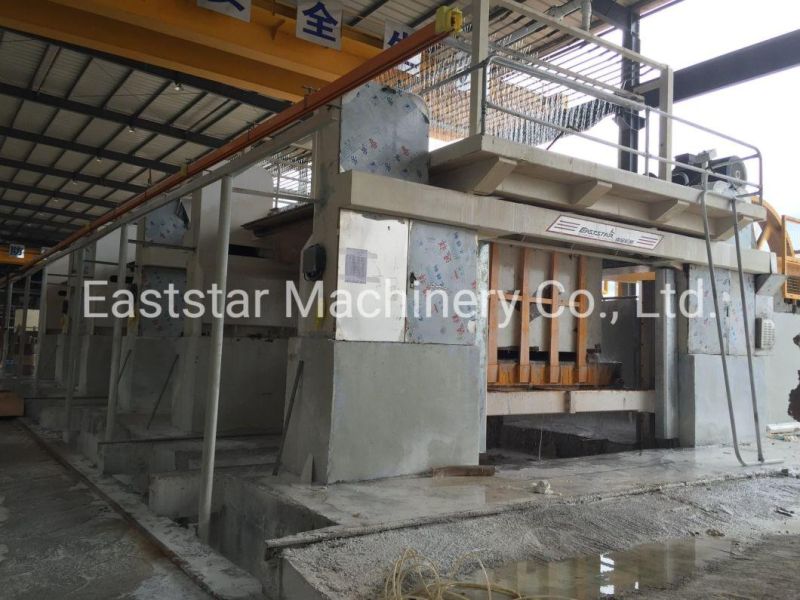

Manufacturing Factory photo :
Marble Block Cutting Machine&Frame SawMarble Block Cutting Machine&Frame SawMarble Block Cutting Machine&Frame SawMarble Block Cutting Machine&Frame Saw
