• Model NO.：1325
• Current：AC
• Application：Stone Industry
• Customized：Customized
• Power(W)：4.5kw (Water Cooling)
• Operating System：Ncstudio,DSP Hand Controller
• Warranty：2 Years
• Table Structure：T-Slot Table
• Driving System：Servo Motor,Stepper Motor
• Command：G Command
• Guide Rail：Square Rail
• Spindle Speed：0-24000 (R, Min)
• Service：Offering Oversea Service
• Working Size：1300mmx2500mm
• Material：Marble or Grantite
• Spindle Power：5.5kw or 7.0kw
• Lathe Bed：Cast Steel
• Transmision for X,Y,Z：Original Taiwan Hiwin Square Rails
• Water Tank：with
• Transport Package：Woodencase Package
• Specification：1300x2500x300mm
• Trademark：ALLWIN
• Origin：Jinan, Shandong, China
• HS Code：8465990000
• Production Capacity：5000

Basic Info.

Model NO. 1325 Current AC Application Stone Industry Customized Customized Power(W) 4.5kw (Water Cooling) Operating System Ncstudio/DSP Hand Controller Warranty 2 Years Table Structure T-Slot Table Driving System Servo Motor/Stepper Motor Command G Command Guide Rail Square Rail Spindle Speed 0-24000 (R/ Min) Service Offering Oversea Service Working Size 1300mmx2500mm Material Marble or Grantite Spindle Power 5.5kw or 7.0kw Lathe Bed Cast Steel Transmision for X,Y,Z Original Taiwan Hiwin Square Rails Water Tank with Transport Package Woodencase Package Specification 1300x2500x300mm Trademark ALLWIN Origin Jinan, Shandong, China HS Code 8465990000 Production Capacity 5000

Product Description

Application:
Marble, granite, tombstone, , headstone, wood, acrylic, organic glass, crystal, fabric, paper, leather, rubber, ceramic, glass and other non-metal materials, etc.
Furniture decoration, Musical Instruments industry, wooden crafts industry, large area plank plane
 sculpture,
solid wood furniture, annatto furniture, real wood art mural, density board paint-free door, Wood composite door,  wardrobe, cabinets,  beside cupboard, screen engraving and so on.
Brief  Description
CNC stone engraving machine 1530/stone carving machine 1325
1. 5.5KW water cooling spindle
2. Weihong NK105 DSP system
3. Taiwan Hiwin 25 linear guide rail
4.Leadshine M860 stepper motor
5.Fuling inverter
6.stainless steel water tank
Features:
1.The frames is welded by thick-walled rectangular steel and tempered at high temperature
2.No deformation,high rigidity,with over 3 tons of load-bearing frame
3.Taiwan imported rails and sliders,HIWIN,high precision,low noise,durable.
4.Transmission parts are imported rack with high precision and speed.
5.The machine cable and Electrical adopts international famous brand,which makes the machine works in steady and high efficient condition.
6.Unique domestic water circulation system,energy saving and environment protection.
7.Newest design of triaxial enclosed totally,dustproof,waterproof.

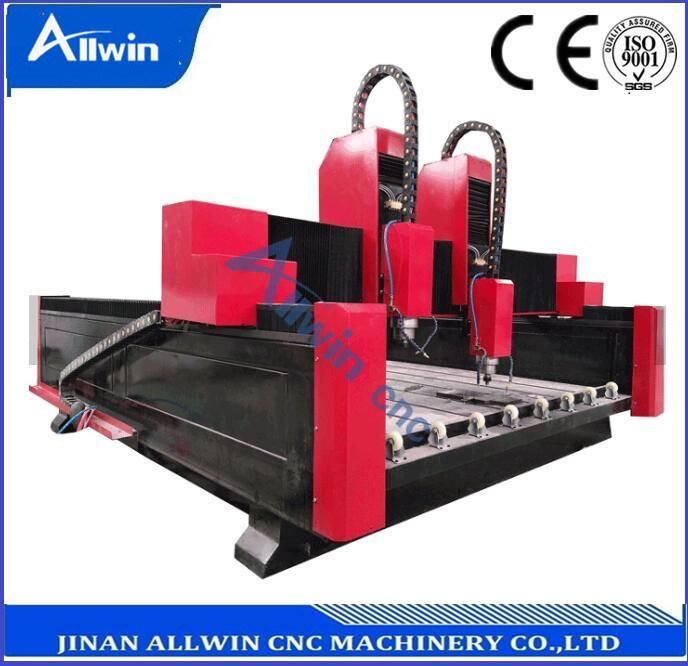

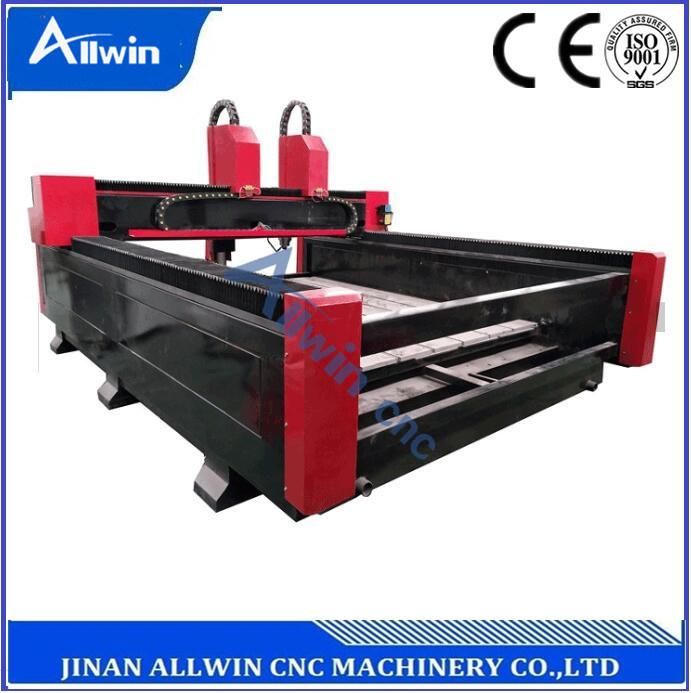

Stone, Marble, Granite, Tombstone, Headstone CNC Cutting Carving Engraving Machine
Technical parameters:

Standard	CE
Model	1325,1530, 2030
Working area(x,y,z axis)	1300x2500mm,1500x3000mm,2000x3000mm
Spindle	4.5kw,5.5kw,6kw,9kw can option
Control system	WEIHONG DSP NK105 control system (NC can option)
Motor	Leadshine Servo motor (Japan Servo can option)
Inverter	5.5kw fulling inverter (TaiDa can option)
X Y Z axis	Original Taiwan Hiwin square rails
Transmission	XY axis is gear rack transmission, Z axis is Taiwan TBI ballscrew transmission
If have vacuum pump	Yes, include 7.5kw  (Please note this)
Table	Aluminum profile T-slot table with Vacuum adsorption table
Structure	Heavy Cast iron body
Lubrication	Semi-automatic Lubrication system
If have the dust collector	Yes, include
Tool Box	All the standard tools included
limited switch	Japan Omron high sensitivity limited switch
components	Schneider electronic components
Other parts	Tool sensor, tools, etc...
4th Rotary axis	depend on Customer
Other cnc router types	400x400mm,600x900mm,1200x1200mm,1200X1800mm, 900x1500mm,1200x2400mm,9500x2000mm,1300x2500mm,1500x3000mm, 2000x3000mm,ATC1325,ATC1218,ATC6090,Multi heads cnc routers

TrainingCustomers can get free technical training. Mainly training are as follow:
1. Software operation.
2. Machine operation and maintenance.
3. Instruction of technical parameters, as well as their setting ranges.
4. Solutions for common problems.
Equipment Maintenance1. One year free maintenance, lifelong caring.
2. Free technical consultant and software updating.
3. Customer Service responding in 2 hours.
4. Continuous support with software and hardware after free maintenance. GuaranteeThe guarantee period shall be 12 months counting from the date on which the machine arrives destination port. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.
A Guarantee:
1. 12 months for the whole machine.
2. Within 12 months under normal use and maintenance,
    If something is wrong with machine, you will get spare part for free.
3. Out of 12 months, you will get spare part at cost price.
4. You will also get technical support and service all the lifetime.

B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas

C After sales services:
1 Normal machine is properly adjusted before dispatch.
2 You will be able to use the machines immediately.
3 You will be able to get free training advice towards our machine in our
    factory.
