Granite Marble 3D Stone Carving CNC Router Machine for Sale

Jinan Eastrise Innovations Co., Ltd.

Warranty：3 Years
Function：Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
Application Material：Marble
Automation：Automatic
Control：CNC
Motor Power：Small Power

Base Info

Engraving Head Speed Adjustability：Wide Adjustable Range
Certification：CE, ISO, GOST, SONCAP, UL, CCC, API
Current：AC
Application：Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
Customized：Customized
Controller：DSP,Nc Studio,Mach3,Syntec
Motor：Stepper ,Servo
Rail：Taiwan PMI,Hiwin,Shac
Software：Artcam,Jdpaint
Table：T Slot Table and Water Tank
Spindle Power：5.5kw
Spindle Brand：Hqd,CS
Payment Item：30% in Advance, 70% Before Shipment
Package：Water-Proof Film and Plywood
Transport Package：Plywood
Specification：1300*2500mm
Trademark：Eastrise
Origin：Jinan, China
HS Code：8465990000
Production Capacity：5000 Sets,Year

Description

Basic Info.

Engraving Head Speed Adjustability Wide Adjustable Range Certification CE, ISO, GOST, SONCAP, UL, CCC, API Current AC Application Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry Customized Customized Controller DSP/Nc Studio/Mach3/Syntec Motor Stepper /Servo Rail Taiwan PMI/Hiwin/Shac Software Artcam/Jdpaint Table T Slot Table and Water Tank Spindle Power 5.5kw Spindle Brand Hqd/CS Payment Item 30% in Advance, 70% Before Shipment Package Water-Proof Film and Plywood Transport Package Plywood Specification 1300*2500mm Trademark Eastrise Origin Jinan, China HS Code 8465990000 Production Capacity 5000 Sets/Year

Product Description

Granite Marble 3D Stone Carving Cnc Router Machine for sale

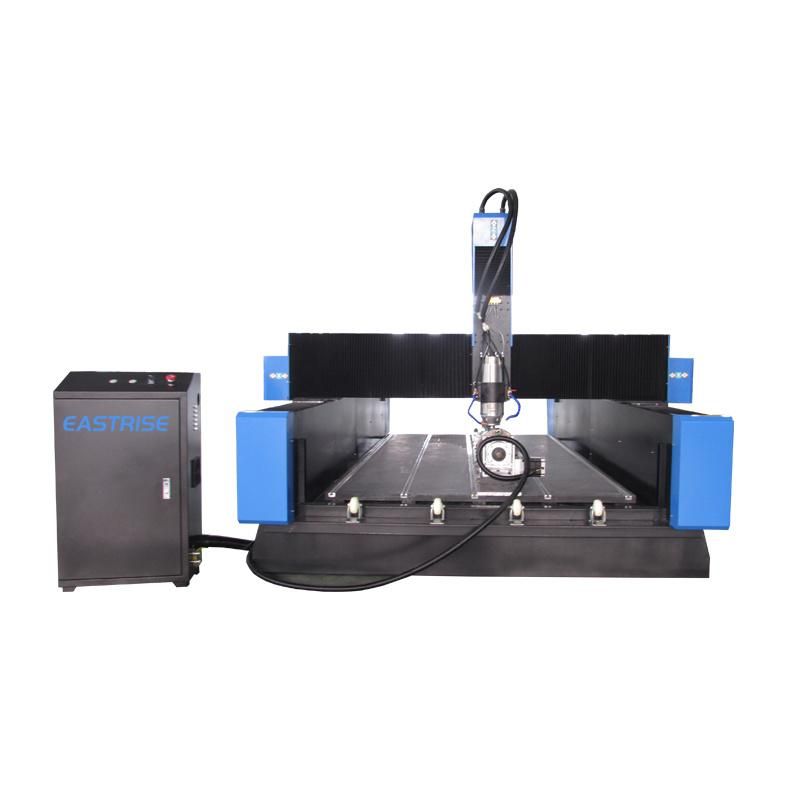

Granite Marble 3D Stone Carving CNC Router Machine for Sale

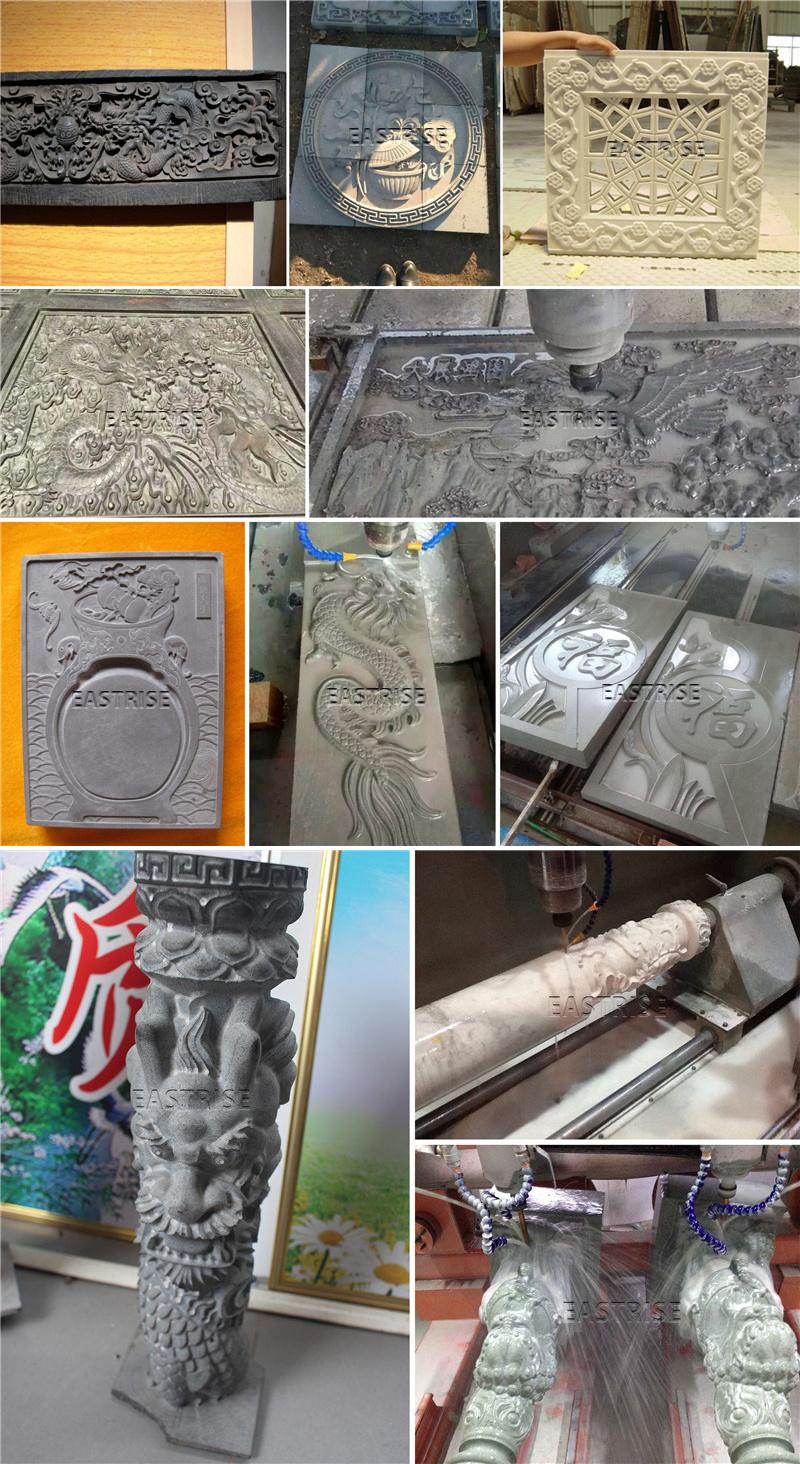

Application

This 3D Tombstone/Marble/Granite/Stone engraving cnc router machine adopts robust structure, powerful spindle motor, precise and efficient control system,coming with professional software. It is easy to install and operate.
Granite Marble 3D Stone Carving CNC Router Machine for Sale

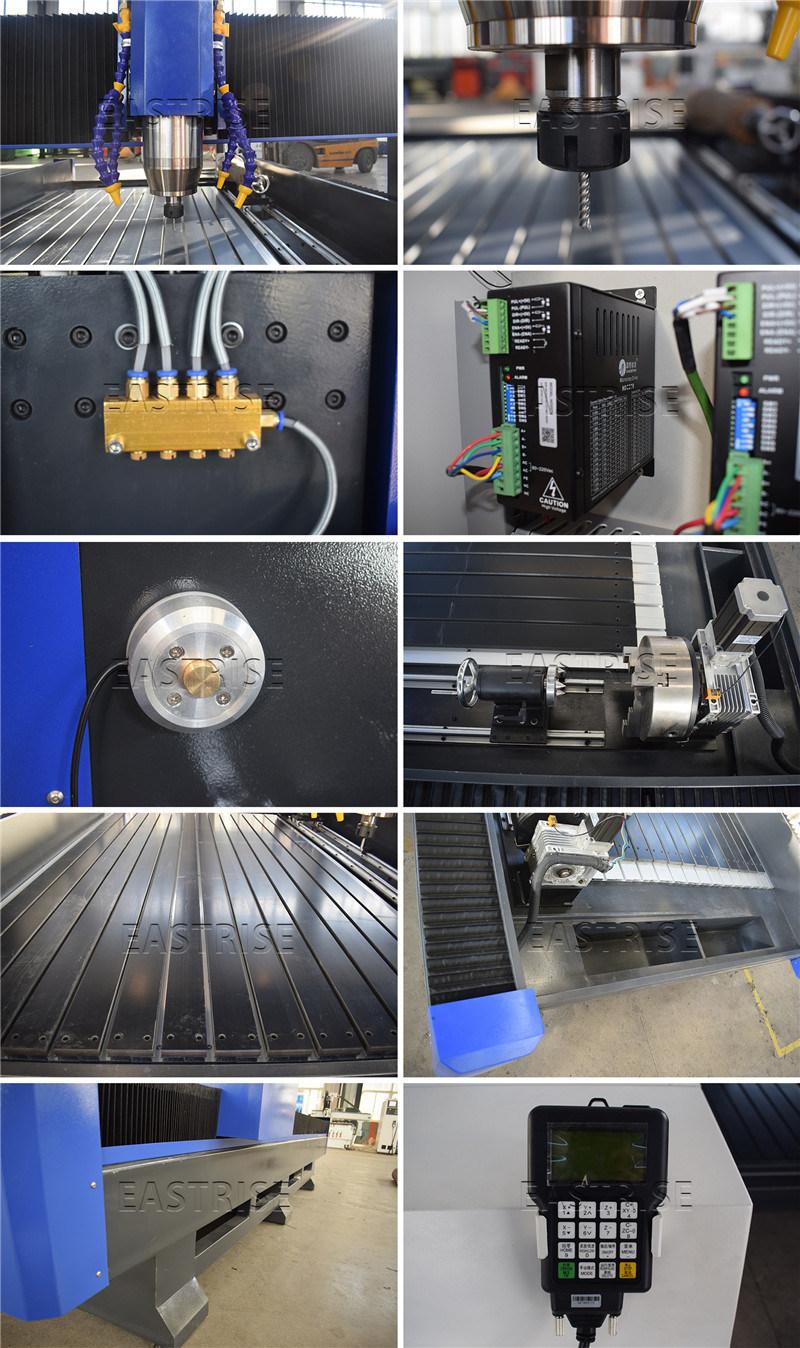

Advantage

1.Seamless square steel tube welding for the whole machine, good rigidity, not easy to deformation, T type heavy
duty machine structure, good weight bearing capacity, high stability, can bearting the more than 1000kg materials.

2.Adpoting the Taiwan linear square guide rail, double row four columns, large loading capacity, sable operation,
higher precision.

3.Big powerful double motor and driver for Y-axis, stable moving for whole machine, fast speed, the traveling speed
can reach to 40m/min or more.

4.Big power spindle, greating cutting indensity, high efficiency, lowe noise.

5.The special designed Z-axis structure, increasing the stone relief precision effectively, making the ball screw
broken of Z-axis failure rate to the lowest.

6.Using the high precision rack and pinion transmission, higher precision, fast speed and powerful.

7.Gantry moving, more fast, stable, uniformity, no shaking for the whole machine.

8.Stainless steel water slot cooling system, ensuring the tools get the adequate cooling, prolong the tools life time,
getting the more better engraving effect.

9.Continuing working after the break point/power failure, lower the rejection rate.

10. Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software,
2D/3D processing, more convenient to using.

Optional items

- Servo motors (Taiwan Delta servo motor, Japan Yaskawa servo motors)

- 4th rotary axis, diameter 400mm, working length 1200mm, choose HBS2206 863S70-1000 simple servo system

- Z axis height can be customized
Granite Marble 3D Stone Carving CNC Router Machine for Sale

Technical parameters

Working size	13002500mm 15003000mm
Max feeding height	400mm(Customized)
Max traveling speed	40m/min
Transmission	Rack and opinion
Software environment	WindowsXP/7/8/10
Spindle power	5.5KW(Optional)
Power without spindle	2KW
Voltage	220V/380V
Spindle speed	6000-24000rpm/min
