• Model NO.：pew series
• Application：Construction, Mineral Industry, Stone Industry
• Drive：Electric
• Crushing Style：Grinding & Impact
• Compressive Strength (For Crushing)：>300MPA
• Crushing Degree：Coarse Crusher
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：80sets,Month
• Package size per unit product：500.00cm * 300.00cm * 400.00cm
• Gross weight per unit product：5000.000kg

Basic Info.

Model NO. pew series Application Construction, Mineral Industry, Stone Industry Drive Electric Crushing Style Grinding & Impact Compressive Strength (For Crushing) >300MPA Crushing Degree Coarse Crusher Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 80sets/Month

Packaging & Delivery

Package size per unit product 500.00cm * 300.00cm * 400.00cm Gross weight per unit product 5000.000kg

Product Description

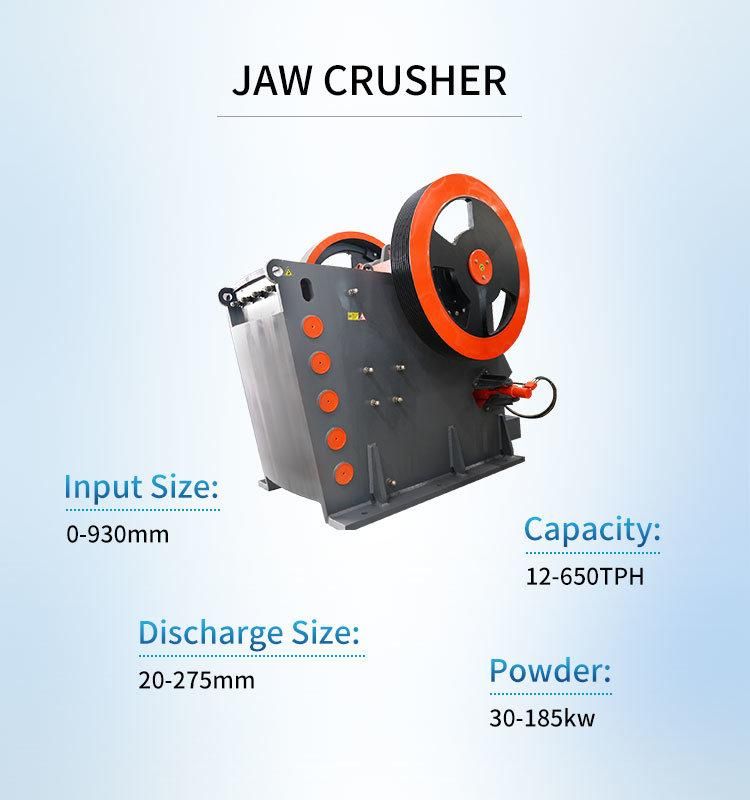

European PEW Mineral Limestone Crushing machine Primary Jaw Crusher

Introduction of European PEW Mineral Limestone Crushing machine Primary Jaw Crusher

European PEW Mineral Limestone Crushing machine Primary Jaw Crusher -----small gold ore jaw crusher is usually used as primary crusher in quarry production lines, mineral ore crushing plants and powder making plants. small gold ore jaw crusher can be described as obbligato machine in mining, building construction, construction wastes crushing, Hydropower and Water Resource, railway and highway construction and some other industries.

European PEW Mineral Limestone Crushing machine Primary Jaw Crusher Features

1. The application of world-class manufacturing processes and high-tech materials.
2. Integrated steel structures are used for the base of bearing;
3. The broken cavity using "V"-shaped structure, so that the actual width of feed is same as nominal width;
4. The broken cavity is deep and without dead zone, increased capacity and output feed;
5. Lubrication system is safe and reliable, convenient of replace parts, easy to maintenance;
6. The outlet employs pad-style adjustment devices, convenient and reliable, and increase the flexibility of the equipment;
7. Low noise, less dust;

Working principle of European PEW Mineral Limestone Crushing machine Primary Jaw Crusher:

European PEW Mineral Limestone Crushing machine Primary Jaw Crusher mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part and spring.

The movable jaw goes upward and downward through eccentric shaft when belt and belt wheel are driven by the motor. The angle between movable jaw and bracket turns big when the movable jaw goes upward, which pushes the movable jaw plate to come closely to fixed jaw plate. At the same time, materials are crushed with the movement of the movable jaw.

When the movable jaw goes downward, the angle between movable jaw and bracket turns small. Under the force of spring and connecting bars, the movable jaw plate leaves fixed jaw plate, and the crushed materials with qualified size are discharged from the crushing cavity. With the continuous rotation of the motor, the mini stone crusher machine price and discharges materials, which, in turn, realizes the goal of mass production.

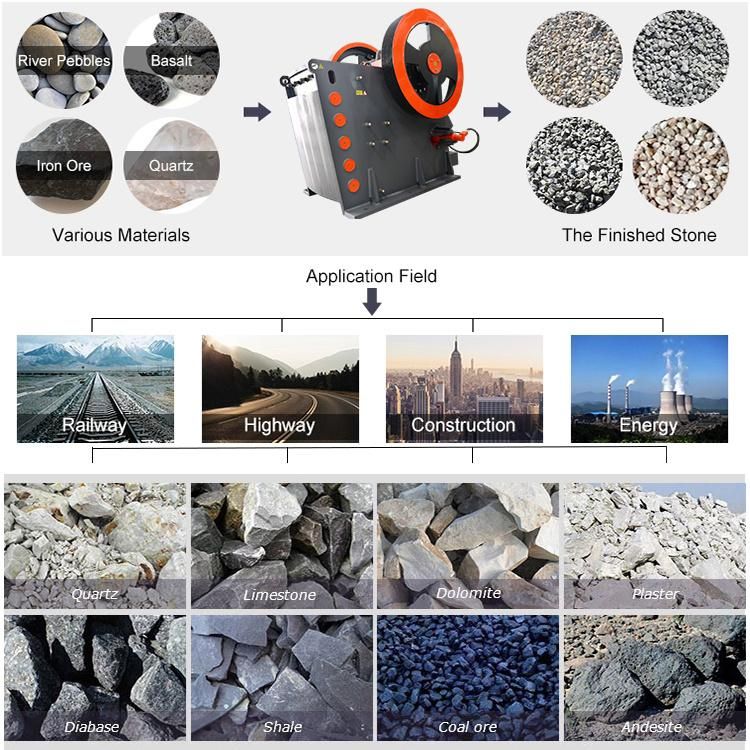

European PEW Mineral Limestone Crushing machine Primary Jaw Crusher application:

European PEW Mineral Limestone Crushing machine Primary Jaw Crusher is widely used in mine ore crushing, recycling of construction waste, construction aggregate, highway, railway, bridge and the production of construction industry.
Suitable Materials: It is widely used in all kinds of hardness of rock materials and ore crushing, such as granite, diabase, basalt, shale, sandstone, quartz stone, gravel, limestone, iron ore, copper ore, manganese ore, coal, nonferrous metal ore, stone etc.

European PEW Mineral Limestone Crushing machine Primary Jaw Crusher technical data:

Model	Feed opening (mm)	Maximum feeding size (mm)	Range of discharge opening (mm)	Capacity (t/h)	Speed (r/min)	Power (kW)	Overall dimension (mm)
PEW250×1000	250×1000	220	20-40	15-50	330	30	1400×1850×1310
PEW250×1200	250×1200	220	20-40	20-50	330	37	1400×2050×1310
PEW400×600	400×600	350	35-85	15-70	250	37	1920×1460×1840
PEW760	760×1100	640	75-200	150-350	270	110	2600×2500×2200
PEW860	860×1100	720	100-225	200-500	240	132	3300×2320×3120
PEW1100	1100×1200	930	150-275	300-650	210	185	4140×2660×3560
