• Model NO.：HLSQ-650
• Usage：Ceramics, Granite, Marble
• Application：Art & Craft, Stone Industry
• Source Voltage：380V
• Automation：Automatic
• Cutting Ability：High Speed
• Control：Siemens PLC
• Certification：ISO, CE
• Color：Red and Ivory
• Guide Rail：Linear Guide
• Dimensions of Working Table：3300*2000
• Touch Screen：Siemens
• Gearing：Rack Gear
• Head Rotation：0,90,180,270 Degree
• Head Tilting：0,45 Degree
• Table Rotation：0-360 Degree
• Table Tilting：0-85 Degree
• Max. Cutting Thickness and Length：100mm,3300mm
• Transport Package：Polypropylene Plastics Packing
• Specification：5750(L)*3600(W)*3400(H)
• Trademark：Hualong
• Origin：Putian, Fujian, China
• HS Code：84641010
• Production Capacity：50 Pieces,Month

Basic Info.

Model NO. HLSQ-650 Usage Ceramics, Granite, Marble Application Art & Craft, Stone Industry Source Voltage 380V Automation Automatic Cutting Ability High Speed Control Siemens PLC Certification ISO, CE Color Red and Ivory Guide Rail Linear Guide Dimensions of Working Table 3300*2000 Touch Screen Siemens Gearing Rack Gear Head Rotation 0/90/180/270 Degree Head Tilting 0/45 Degree Table Rotation 0-360 Degree Table Tilting 0-85 Degree Max. Cutting Thickness and Length 100mm/3300mm Transport Package Polypropylene Plastics Packing Specification 5750(L)*3600(W)*3400(H) Trademark Hualong Origin Putian, Fujian, China HS Code 84641010 Production Capacity 50 Pieces/Month

Product Description

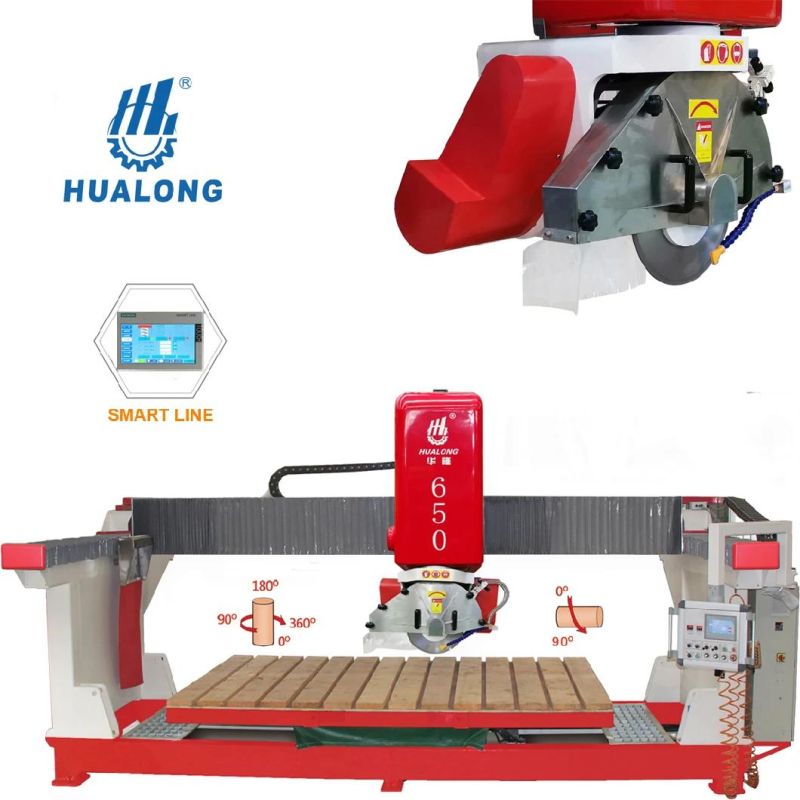

Full Automatic Bridge Stone Cutting Machine HLSQ-650 with function of 0°-90°-180°-270° full automatic positioning, chamfering and cutting,  is suitable for  processing stone slab cut to size, tombstone, skirtboard etc.




Main Features

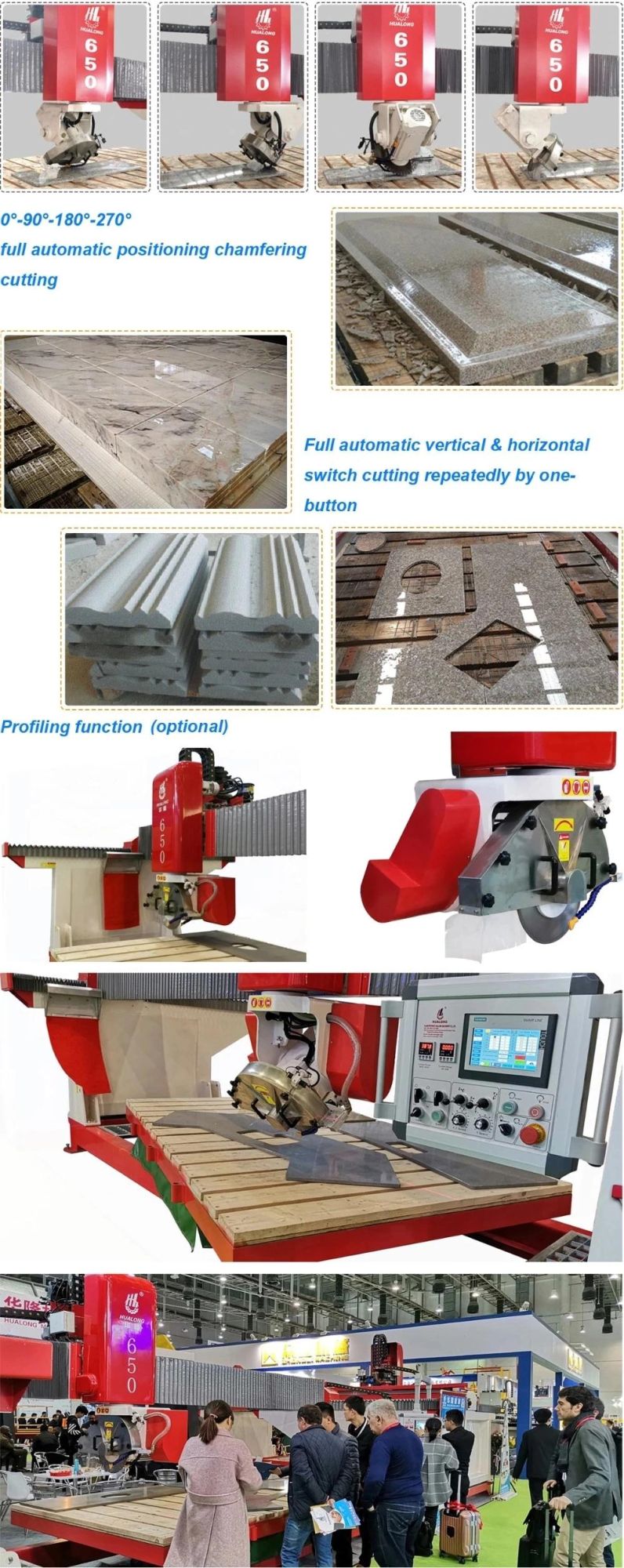

1.Blade can tilt 0-90° ,full automatic vertical and horizontal switch cutting repeatedly by one-button, 0°-90°-180°-270° automatic positioning chamfering cutting.

2.Worktable can rotate 0-360° and tilt 0-85°, easy for cutting direction changing and slab loading.

3. Crossbeam and carling adopt Taiwan's Hiwin linear guide to move, which ensure high precision of cutting and long life.

4. Using Siemens PLC control system with and touch-sensitive screen offer friendly and inteligent control.

5. Electric components adopts Siemens or Schneider brand

6. Laser checking and calibration instrument to aid in lining up the cut.



Detailed Images

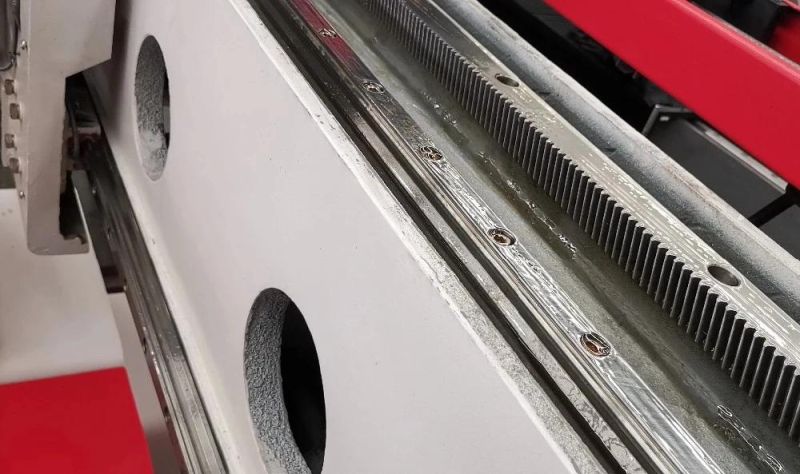

Linear Guide

Brand: Hiwin

Original: Taiwan, China


Famous products, top quality use on crossbeam and carling for good performance and long lifespan.

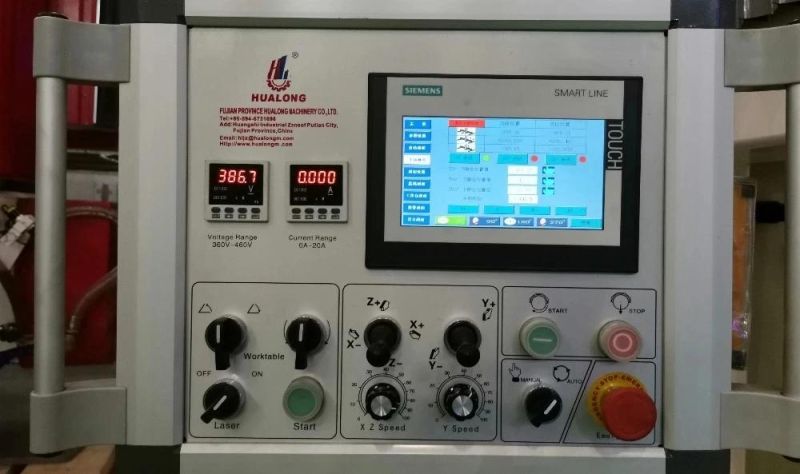

Control system


Brand: Siemens

Use advanced PLC control system with touch screen to achieve multi programming methods, including manual programming or PC processing operation for powerful functions.

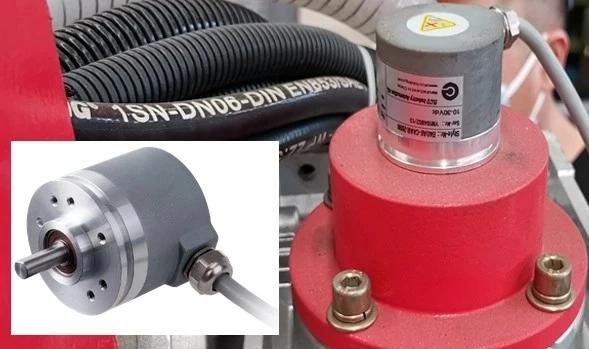

Machine Part

Name: Incremental Encoder

Brand: ELCO from Germany


For the determination of head movement in  X, Y, Z direction and worktable rotation to ensure position precision without the slightest deviation.
