Xg-75kw New Generation Wire Saw Machine for Granite and Marble Quarry Cutting

Jiangxi Xinguang Diamond Tools Co., Ltd.
  • After-sales Service：Online Service
  • Warranty：1years
  • Type：CNC Cutting Machine
  • Usage：Jadestone, Granite, Marble, Kuartz and Other Natural Stone
  • Application：Machinery & Hardware, Stone Industry
  • Source Voltage：380V

Base Info

  • Model NO.：XG 75W
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Control：CNC
  • Certification：ISO
  • Advantage：Weight Is More Weisght
  • Motor：75kw
  • Weight：3, 2t
  • Main Moto Power：75kw
  • Delievery Time：25-35 Days
  • Transport Package：Plywood Case
  • Specification：2200*1650*1700mm
  • Trademark：singoon
  • Origin：Jiangxi
  • HS Code：8464909000
  • Production Capacity：2000 PCS,Year

Description

AC330V~420V, 50/60HzWeight(T)2.8T2.8T2.6T2.6T3.2T
Main Advantage
  1. All electrical accessories of the equipment (such as contactors, intermediate relays, air switches, etc.) are imported from France Schneider and Japan Omron.

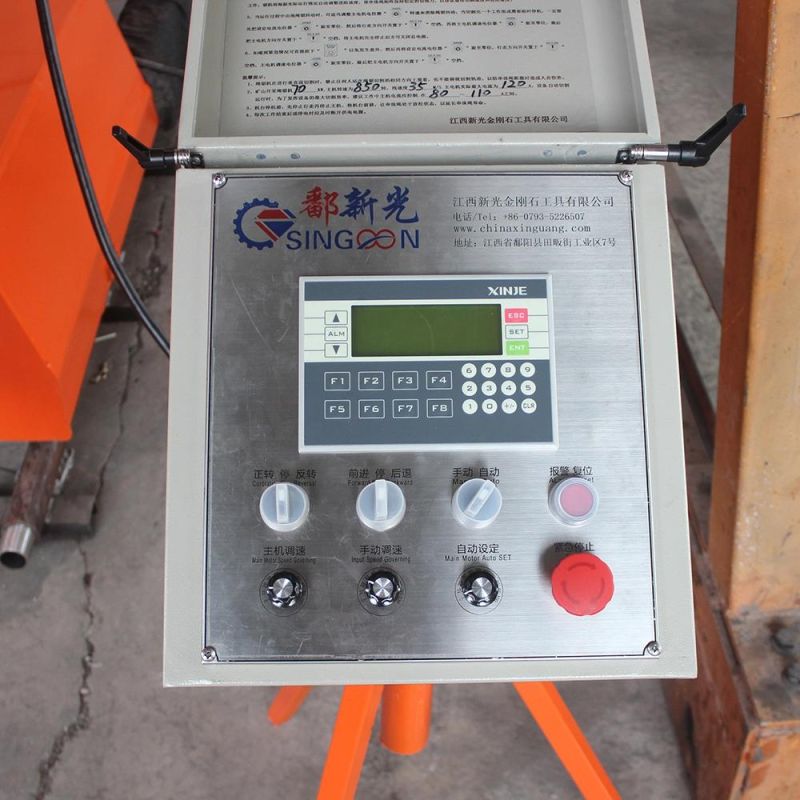

  2. The operating desk panel selection switch uses the ABB products imported by Switzerland and strong dustproof. The speed control potentiometer on the console uses Japanese imported multi-ring potentiometers, which has the characteristics of high control system, high stability, low failure rate.
  3. The machine does not require the phase of the power supply, and there is no need to identify and exchange the power phase so that the mine workers operate and improve work efficiency.
  4. Both movement and rotation angles (360 °) of the head are electrically driven and the photoelectric proximity switch is installed, and it works fine in a harsh environment of moisture and dust.
  5. Machine head lifting and rotation can be controlled by the work desk, and the staff can remotely operate the machine.
  6. Automatic refueling and refueling ports are installed in the main gear and screw active parts of the equipment, which makes the equipment maintenance easier.
  7. All the control switches of our wire saw machine are 24V volt human safety voltage, which can effectively protect the safe operation of workers;
  8. Our wire saw machine has a derailive alarm design, and the equipment is automatically stopped when the equipment is complete during night and unmanned.
  9. The main motor adds a bearing refueling column to improve the motor working efficiency and increase the service life of the motor bearing.
  10. The equipment control cabinet has a fully sealed constant temperature control cabinet of our company's invention patent, and the door frame adds a dust-proof seal strip to avoid dust from entering the machine
  11. The console control cable is a special cable customized by our company according to the special environment of the mine. This cable has strong tensile resistance, high and low temperature resistance, oil resistance, acid and alkali resistance.
  12. The protection levels of all motors are IP55, the button switch and the electric control box are IP65, and the whole machine protection level is IP55.

Application

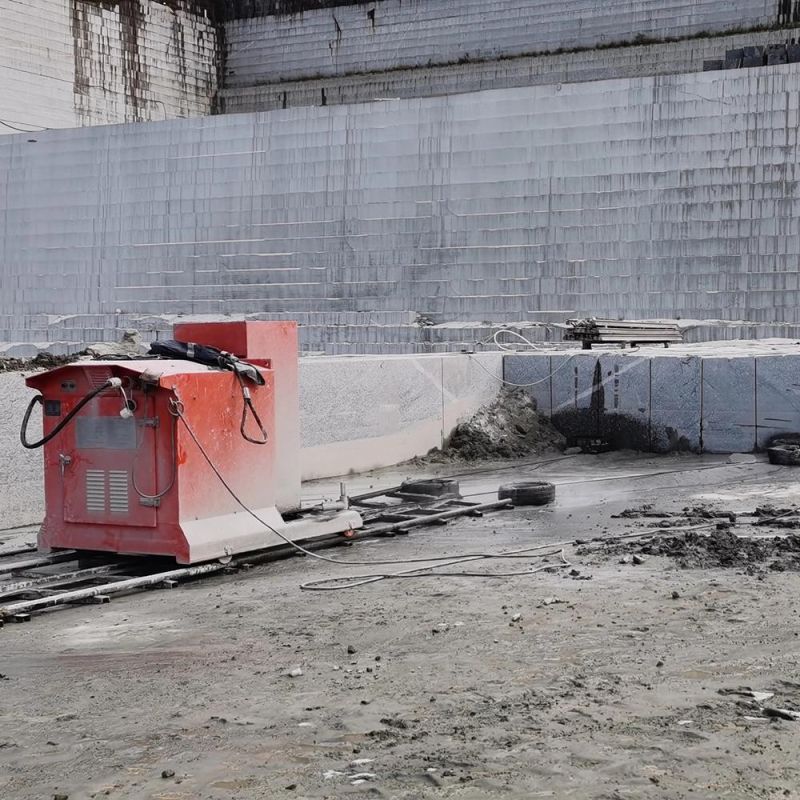

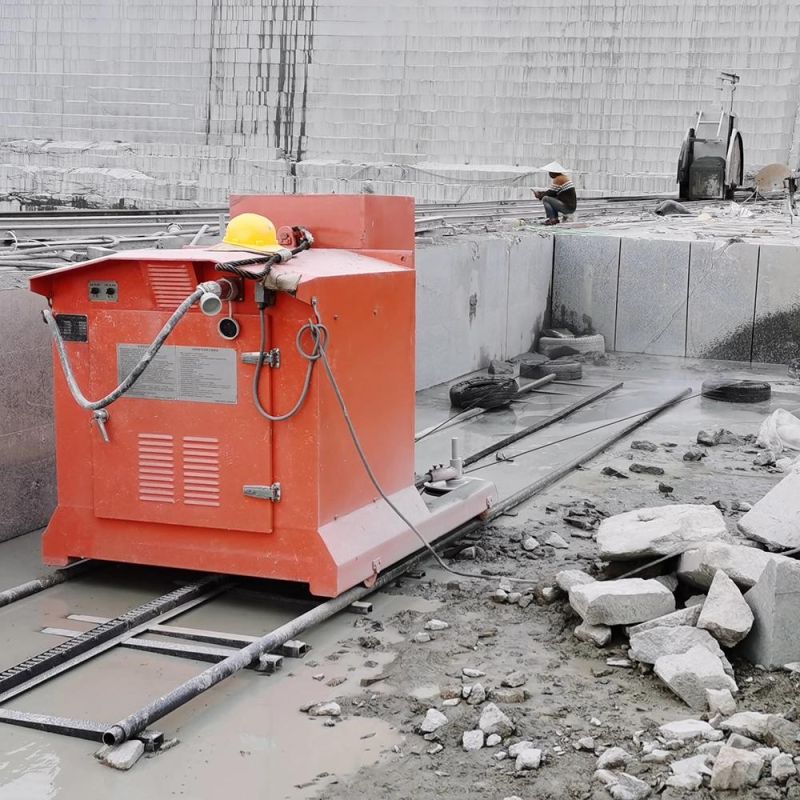

Granite and Marble Quarry
Xg-75kw New Generation Wire Saw Machine for Granite and Marble Quarry Cutting

Xg-75kw New Generation Wire Saw Machine for Granite and Marble Quarry CuttingXg-75kw New Generation Wire Saw Machine for Granite and Marble Quarry Cutting

Quarry Stone Diamond Wire Saw Cutting Machine
Quarry Stone Diamond Wire Saw Cutting MachineQuarry Stone Diamond Wire Saw Cutting Machine
