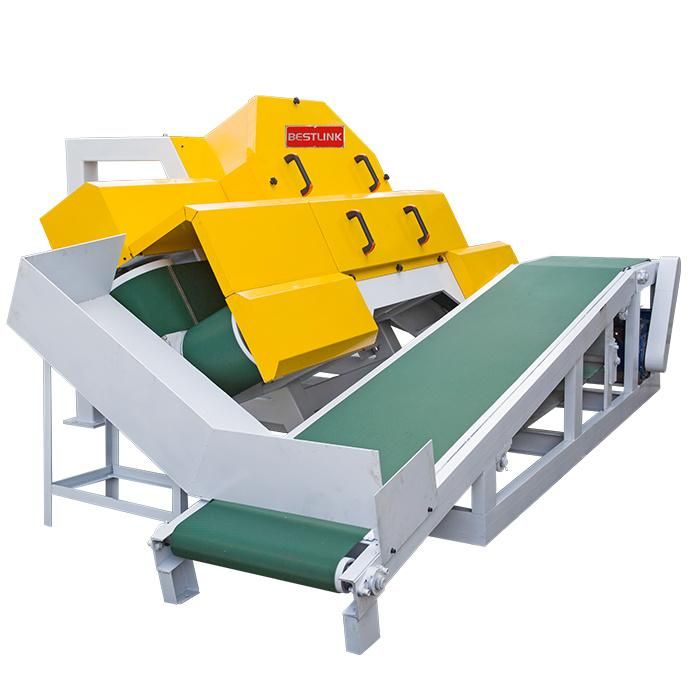

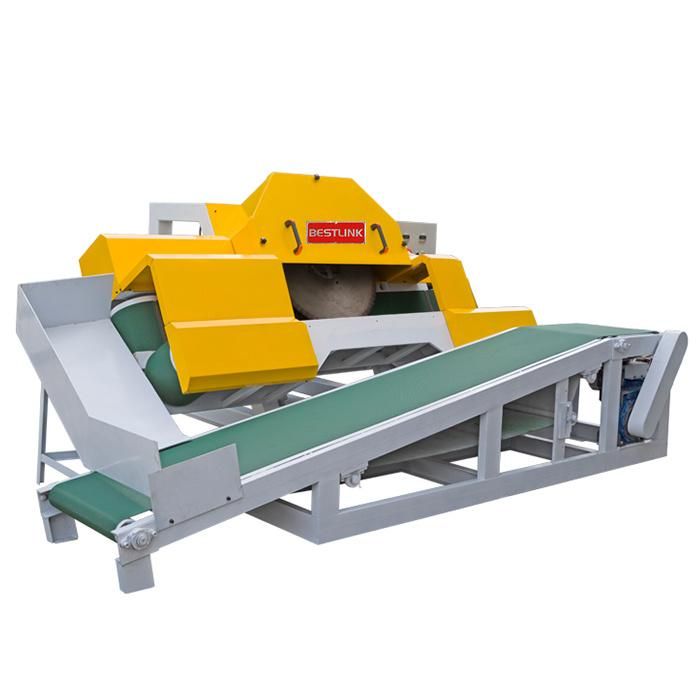

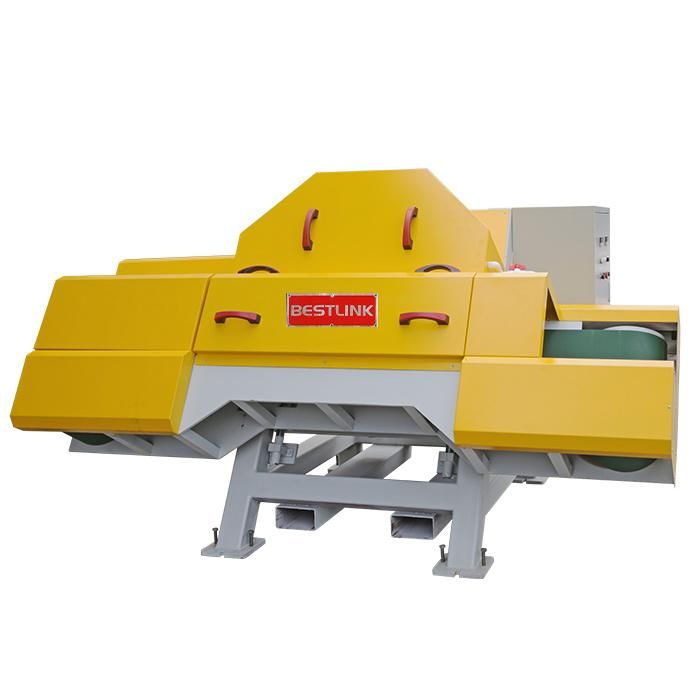

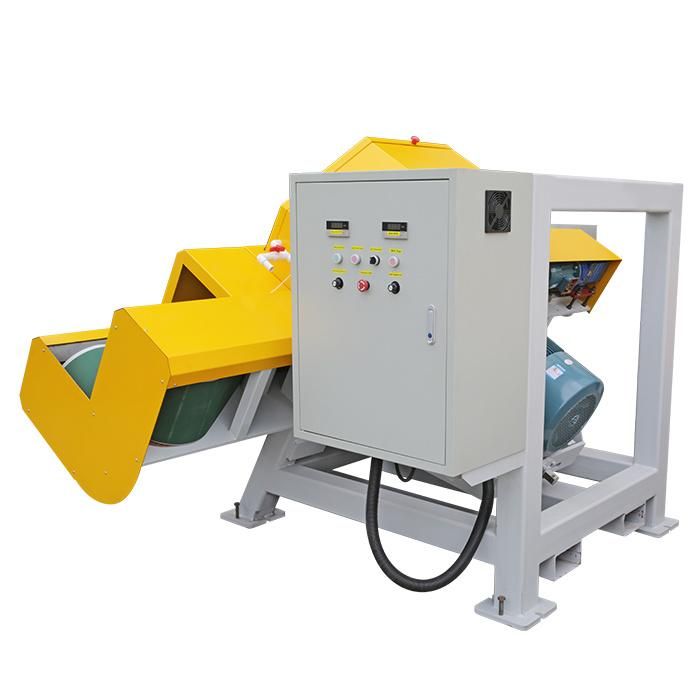

Thin Stone Veneer Rock Sawing System with Belt 30HP 60HP

Xiamen Bestlink Factory Co., Ltd.

Usage：Granite, Marble, Limestoe
Application：Construction, Mineral Industry, Stone Industry

Base Info

Model NO.：30HP 60HP
Source Voltage：380V
Automation：Automatic
Cutting Ability：High Speed
Control：CNC
Certification：ISO
Transport Package：Naked
Specification：750mm-1200mm
Trademark：BESTLINK
Origin：China
HS Code：84791090
Production Capacity：200sets Per Month

Description

Technical Parameter60HP30HPDimensions (L×W×H)3700mm×1600mm×1730mm3100mm×1600mm×1730mmMachine Weight2720kg2040kgMain Motor Power45kw22kwElectricity3 Phase, 240/460V3 Phase, 240/460VAmperage172/86A86/43AWater Consumption3.5m³/h3m³/hBlade Size1000mm-1200mm750mmBlade Speed Standard(Adjustable)780rpm900rpmMax. Cutting Depth300mm250mmConveyor Belt Speed(Adjustable)600mm/min-2450mm/min600mm/min-2450mm/min
Thin Stone Veneer Rock Sawing System with Belt 30HP 60HP

Thin Stone Veneer Rock Sawing System with Belt 30HP 60HP

Thin Stone Veneer Rock Sawing System with Belt 30HP 60HP

Thin Stone Veneer Rock Sawing System with Belt 30HP 60HP

Thin Stone Veneer Rock Sawing System with Belt 30HP 60HP

Thin Stone Veneer Rock Sawing System with Belt 30HP 60HP

Thin Stone Veneer Rock Sawing System with Belt 30HP 60HP

Thin Stone Veneer Rock Sawing System with Belt 30HP 60HP

Thin Stone Veneer Rock Sawing System with Belt 30HP 60HP

Thin Stone Veneer Rock Sawing System with Belt 30HP 60HP

Category

Artificial Stone Machinery

Other Stone Processing Machinery

Stone Carving Machine

Stone Cutting Machine

Stone Drilling Machine

Stone Polishing & Grinding Machine

Recommended

Thin Stone Veneer Saw Equipment with Belt 30HP 60HP
Technical Parameter60HP30HPDimensions (L×W×H)3700mm×1600mm×1730mm3100mm×1600mm×1730mmMachine Weight2720kg2040kgMain Motor Power45kw22kwElectricity3 Phase, 240/460V3 Phase, 240/460VAmperage172/86A86/43AWater Consumption3.5m³/h3m³/hBlade Size1000mm-1200mm7

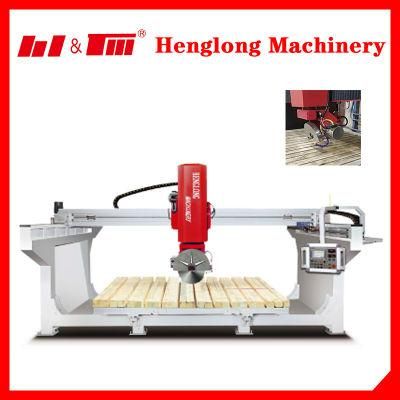

Machinery & Hardware Edge Profiling 5axis CNC Bridge Saw Cutting Machine
