• Model NO.：PEM-3015-4D
• Control：CNC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, SGS
• Name：Stone Cutting Machine (Diamond Wire Saw Machine)
• Function：Cutting Marble, Granite, Slate, Nature Stone, etc
• Max Processing Size：1300*2500mm
• Main Motor：5.5kw
• Number of Spindles：1PC
• Gross Weight：2000kg
• Water Consumption：1m3,H
• Control Type：CNC
• Certificates：CE, SGS, ISO9001
• Transport Package：Load in a 20 Feet Container
• Specification：4200*2410*2200mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. PEM-3015-4D Control CNC Certification API, CCC, UL, SONCAP, GOST, ISO, CE, SGS Name Stone Cutting Machine (Diamond Wire Saw Machine) Function Cutting Marble, Granite, Slate, Nature Stone, etc Max Processing Size 1300*2500mm Main Motor 5.5kw Number of Spindles 1PC Gross Weight 2000kg Water Consumption 1m3/H Control Type CNC Certificates CE, SGS, ISO9001 Transport Package Load in a 20 Feet Container Specification 4200*2410*2200mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

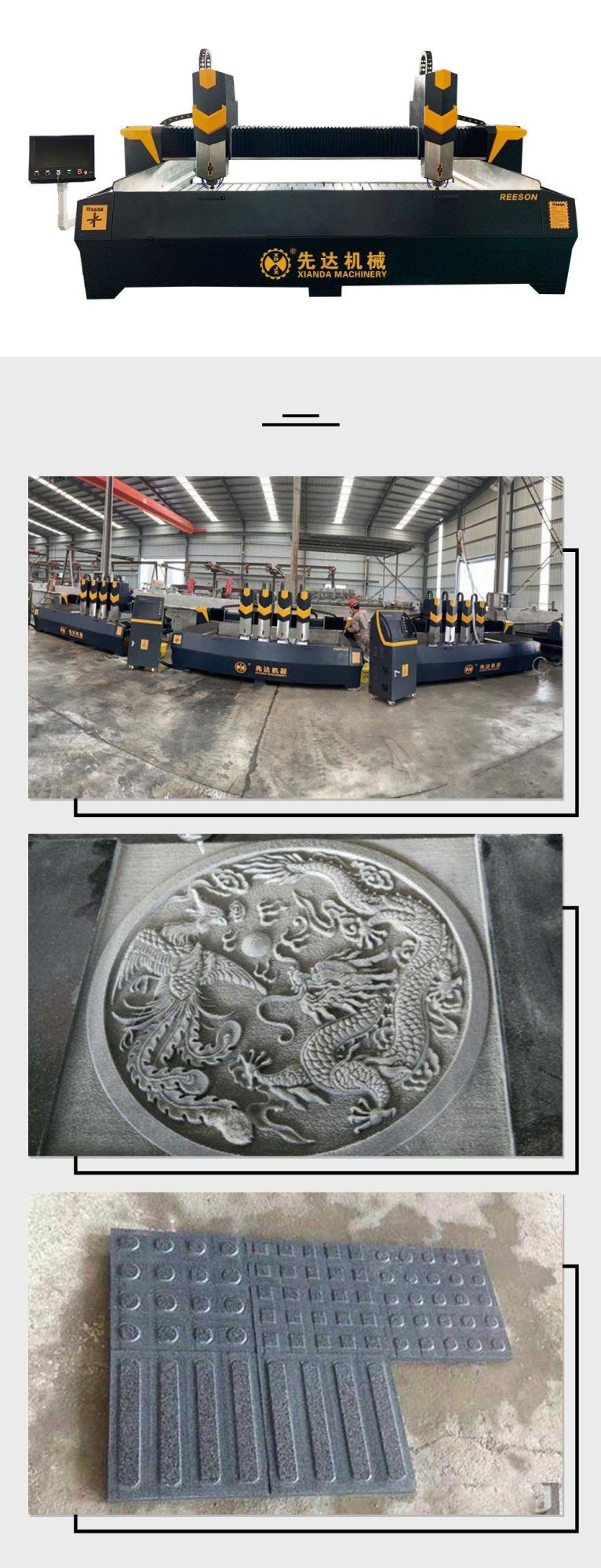

Marble Granite CNC STONE CARVING MACHINE


Application

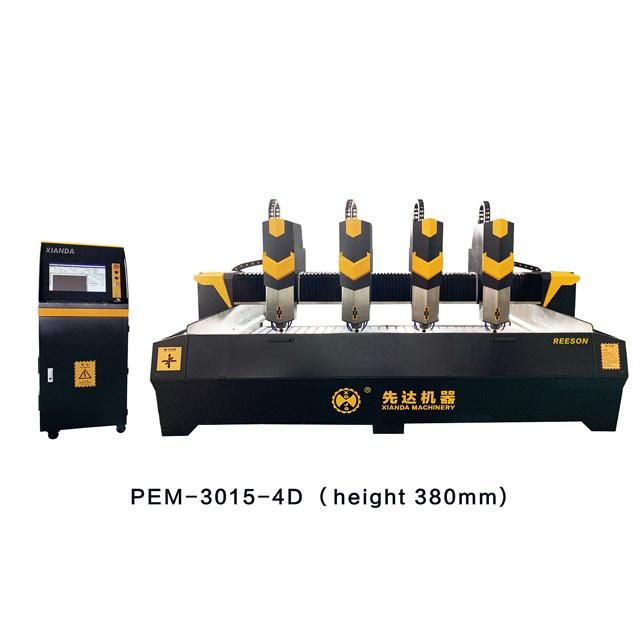

PEM-3015-3D-4D


This machine adopts numerical control system, three -axis linage, doulbe row four-row slider, constant power spindle motor, two -way toll colling system, with stable running , high efficiency advantages,suitable for processing marble, granite, aluminum plate and other materials.





Technical Parameter

Parameter	Unit	PEM-3015-3D	PEM-3015-4D
Dimension of worktable	mm	3000*1500	3000*1500
Feed height	mm	≤380	≤380
Air Speed	m/min	13	10
Machining speed	m/min	10	10
Number of spindles	pcs	3	4
Spindle Power	kw	5.5	5.5
Outline dimension(L*W*H)	mm	4200*2410*2200	4200*2410*2200
Water consumption	M3/h	3	4

Fujian  XianDa Machinery Co.Ltd was established in 1985 and covers an area of 20,000 square meters.We are dedicated to the development and production of series of column making machine,wire saw stone cutting machine,block trimming machine,Infrared bridge saw,profiling stone machine.

With rapid development,we have attained ISO9001 standard,CE,and won many honorary titles, including international Gold Plant Quality Award,China construction recommend building materials production enterprises.etc.

Since its foundation in 1985,we keep ''Advanced Technology and High Quality'' as our aim, moreover,our company dare innovate and develope,and invite the high quality engineers and own a group of strong team with modern technology.





Exhibition


Our after-sale service Team


We are a vigorous and creative team with great passion, we are always trying to provide better service for you, if you meet any problems about stone cutting machine, please contact us at any time suits you.

Other stone cutting machines we produce: Diamond wire saw machine, bridge cutting machine, bridge saw and a series of stone machine for special shape processing.



FAQ

1. Manufacturer Profiles

We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.

We are a company which is specially for producing stone machines for exporting.

2. Quality Control

We have our own experienced QC.

Our machine will be strictly inspected.

We will provide a Testing Video for each machines before shipping out if required by customer.

3. Delivery time

Based on order quantity, normally three weeks against payment.

4. Warranty

All the machines have one year warranty.

5. After Services



Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.
