Xianda Zdqj-700 Tiltable Type with 45 Degree Marble Grante Stone Cutting Machine
Fujian Xianda Machinery Co., Ltd.- Type：Bridge Cutting Machine
- Usage：Granite, Marble
- Application：Construction, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：ZDQJ-700
- Control：PLC
- Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
- Blade Diameter：Φ300-Φ700
- Max Processing Size：3200*2000*230mm
- Dimension of Worktable：3200*2000mm
- Workable Tilting Degree：0-85°
- Worktable Rotation Degree(Optional)：0-90° , 0-360°
- Main Motor：18.5kw
- Gross Motor：24kw
- Water Consumption：4m3,H
- Outline Dimension：6000*4800*3100mm
- Gross Weight：5750kg
- Transport Package：Load in a 20 Feet Container
- Specification：6000*4800*3200mm
- Trademark：Xianda
- Origin：Jinjiang, Fujian, China
- HS Code：84641090
- Production Capacity：1000 Sets,Year
Description
Basic Info.
Model NO. ZDQJ-700 Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Blade Diameter Φ300-Φ700 Max Processing Size 3200*2000*230mm Dimension of Worktable 3200*2000mm Workable Tilting Degree 0-85° Worktable Rotation Degree(Optional) 0-90° / 0-360° Main Motor 18.5kw Gross Motor 24kw Water Consumption 4m3/H Outline Dimension 6000*4800*3100mm Gross Weight 5750kg Transport Package Load in a 20 Feet Container Specification 6000*4800*3200mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/YearProduct Description

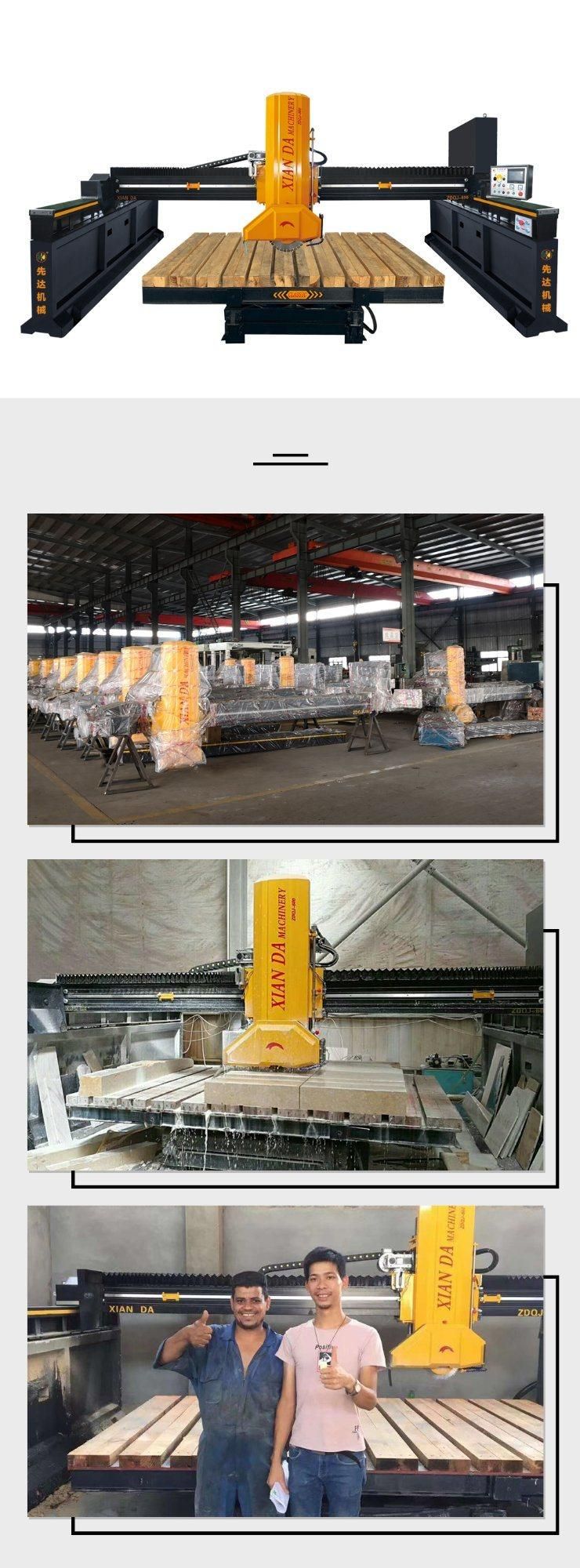

Zdqj-700 Automatic Stone Cutting Machine Bridge Saw
Product Description
ZDQJ-700 infrared automatic stone bridge cutting machine has three type, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control leftright feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials.
The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble.
Technical Parameter
| Parameter | Unit | ZDQJ-450 | ZDQJ-600 | ZDQJ-700 |
| Blade diameter | mm | 300-450 | 350-600 | 350-700 |
| Max processing size | mm | 3200*2000*120 | 3200*2000*180 | 3200*2000*230 |
| Dimension of worktable | mm | 3200*2000 | 3200*2000 | 3200*2000 |
| Worktable tilting degree | ° | 0-85° | 0-85° | 0-85° |
| Worktable rotation degree | ° | 0-90°/0-360° | 0-90°/0-360° | 0-90°/0-360° |
| Main motor | kw | 15 | 18.5 | 18.5 |
| Gross motor | kw | 21 | 24 | 24 |
| Water consumption | m³/h | 4 | 4 | 4 |
| Outline dimension | mm | 6000*4800*2900 | 6000*4800*3100 | 6000*4800*3200 |
| Gross weight | kg | 5250 | 5500 | 5750 |
Xianda Machinery
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.
