• Model NO.：PC
• Finished Surface：Thread Process
• Certification：CE, ISO, SGS
• Condition：New
• Installation：Under The Guidance of Engineer
• Usage：Ore, Rock, Stone, etc.
• Warrenty：1year
• After-Sale Service：Training, Technical Support, etc.
• Port：Qingdao, Shanghai, Dalian
• Transport Package：International Packing Standard
• Specification：ISO, CE, SGS
• Trademark：TYM
• Origin：Henan, China
• HS Code：8474201000
• Production Capacity：60sets,Month

Basic Info.

Model NO. PC Finished Surface Thread Process Certification CE, ISO, SGS Condition New Installation Under The Guidance of Engineer Usage Ore, Rock, Stone, etc. Warrenty 1year After-Sale Service Training, Technical Support, etc. Port Qingdao, Shanghai, Dalian Transport Package International Packing Standard Specification ISO, CE, SGS Trademark TYM Origin Henan, China HS Code 8474201000 Production Capacity 60sets/Month

Product Description

Product introduction

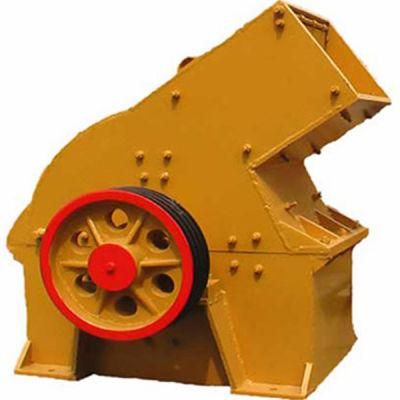

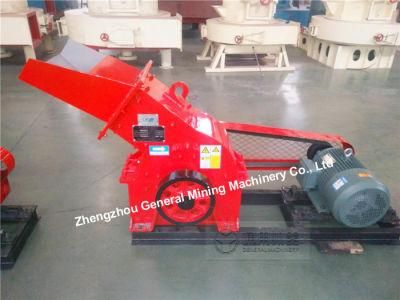

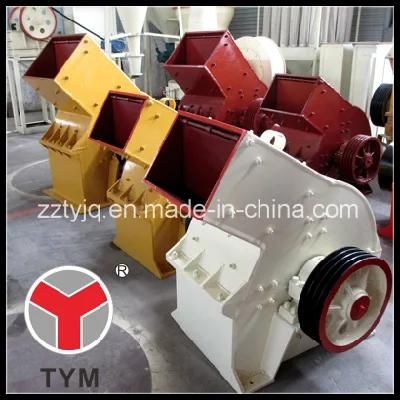

The hammer crusher (hammer mill) crushes by the collisions between high-speed hammer and material, and the hammer crusher features are in its simple structure, high reduction ration, high efficiency, etc. The PC hammer crusher were developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries.

Working principle

The motor drives the rotor rotate of the hammer crusher at a high speed through the belt, and on the rotor there are series hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size.








Technical parameter

Model	Capacity (t/h)	Max Feed Size (mm)	Discharge Size (mm)	Motor Power (kw)	Weight(t)	Quotation (USD)
PC400×300	5-10	≤100	≤10	11	0.8
PC600×400	10-25	≤120	≤15	18.5	1.5
PC800×600	20-35	≤120	≤15	55	3.1
PC1000×800	20-40	≤200	≤13	115	7.9
PC1000×1000	30-80	≤200	≤15	132	8.65
PC1300×1200	80-200	≤250	≤19	240	13.6

Pre-sale services:

(1) Device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) Training technical personnel for clients.
(4) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program

Sales tracking:

(1)Product acceptance.
(2)Help customers to develop construction programs.

After-sale services:

(1) Free to assign a dedicated service personnel, arriving at the scene and guiding customers' installation.
(2) Equipment installation.
(3) On-site training of operators.
(4) Complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.


We hope our perfect products and service can satisfy you, and welcome to our factory to visit. Looking forward to building long-term relationship with you!


About us

Zhengzhou General Mining Machinery Co., Ltd was founded in 2004, aiming to serve the need in mining, metallurgy, construction, chemical industry etc. We manufacture TYM brand Mining Machinery which are 100% of our own design, production detection and marketing.

What distinguishes our machine from other 's worldwide is our invention and innovation on practical and easy crushing, milling system. We believe that quality should be integrated into every part of our machine.

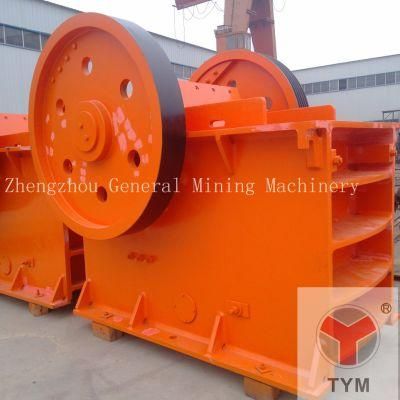

Our main products are Powder Grinder, Raymond Grinders, High Pressure Suspention Grinders, High Pressure Micro-powder Grinders, Vertical Shaft Impact Crushers, Impact Crushers, Jaw Crushers, Cone Crushers, Vibrating Screens, Sand Washing Machines, nine series of products with more than 30 kinds of specifications.

They are all designed, produced, manufactured and tested in accordance with the standard of ISO9001: 2000 international quality system standard. Our products are recognized as quality products by technical supervision departments.

Every year, we export our grinders and crushers to South Asia, Africa, South America, middle East and other regions in quantity. And our Machines enjoy a high reputation in the foreign market. We welcome you visit our company, and hope we have chance to cooperate with you. Thank you.

We hope our perfect products and service can satisfy you, and welcome to our factory to visit. Looking forward to building long-term relationship with you!


Contact us

If you are interested with our products, please don't hesitate to contact us. We will provide you the most satisfying product and service. You can tell me the following questions, then I can send you accurate quotation soon, including additional discount!

1. Which machine do you need? like stone crusher, grinding mill or ball mill , etc.

2. what is your raw material plan to process? like limestone, granite or marble  ore, etc.

3. The capacity you need. Like 100 tones per hour or 2000 tones per day.

4. Your contact information. Both Email and phone number are essential, we can contact you easier.

Company name: Zhengzhou General Mining Machinery Co.,Ltd.
Zhengzhou General Mining Machinery Co.,Ltd.
Contact with Miss. Lily Jin
Tel: 86-371-68612899
 Mob: 008615225099166
