• Model NO.：ZDBL-450
• Control：PLC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Blade Diameter：Φ300-Φ600
• Max Processing Size：3200*2000*100mm
• Dimension of Worktable：3200*2000mm
• Workable Tilting Degree：0-85°
• Worktable Rotation Degree(Optional)：0-90° , 0-360°
• Main Motor：15kw
• Gross Motor：20.5kw
• Water Consumption：4m3,H
• Outline Dimension：5850*3500*2650mm
• Gross Weight：6500kg
• Transport Package：Load in a 40 Feet Container
• Specification：5850*3500*2650mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. ZDBL-450 Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Blade Diameter Φ300-Φ600 Max Processing Size 3200*2000*100mm Dimension of Worktable 3200*2000mm Workable Tilting Degree 0-85° Worktable Rotation Degree(Optional) 0-90° / 0-360° Main Motor 15kw Gross Motor 20.5kw Water Consumption 4m3/H Outline Dimension 5850*3500*2650mm Gross Weight 6500kg Transport Package Load in a 40 Feet Container Specification 5850*3500*2650mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

Product Description

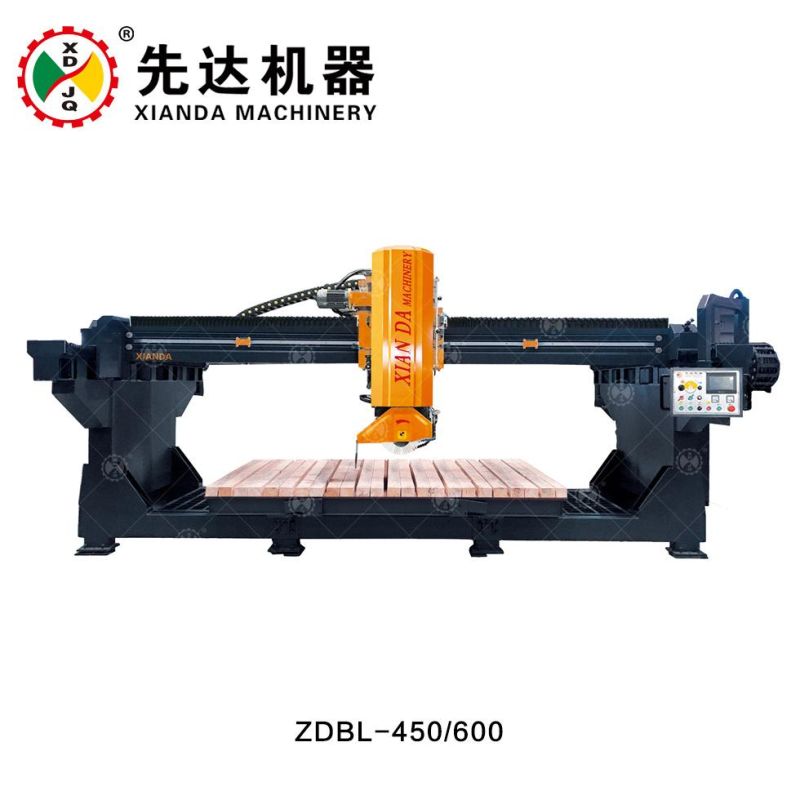

ZDBL-450
Integrated bridge cutting machine

It adopts  PLC system and human-machine intelligent operation interface. The main engine uses doub le hydraulic lifting combined with chrome guide sleeve, which is small clear nace and wearable and beautiful. The design of multi-layer seal in the guide sleeve is waterproff, dustproof and leakproof.
The sidebeam adopts high precision linear slide track. The left -right foward-backward movement are all use  encoder to control. with high precision megnetic railing ruler to detect, it can adjust the speed according to stone materials, theus the accuracy is higher. It uses  the dedicated motor of stone machinery. the cutting head can rotate 0° and 90°, enhancing the processing speed. The b lade can tilt 0° and 45°, enlarging the range of application. It is an integrated machine with compacted structure, easy operation and efficient cutting  precision, which is the first choice for processing and chamfering for high value granite and marble.


Technical Parameter

Parameter	Unit	ZDBL-450	ZDBL-600
Blade diameter	mm	300-450	350-600
Max processing size	mm	3200*2000*100	3200*2000*180
Dimension of worktable	mm	3200*2000	3200*2000
Worktable tilting degree	°	0-85°	0-85°
Worktable rotation degree	°	0-90°	0-90°
Main motor	kw	15	18.5
Gross motor	kw	21	24
Water consumption	m³/h	4	4
Outline dimension	mm	6000*4800*2900	6000*4800*3100
Gross weight	kg	5250	5500

Xianda Machinery

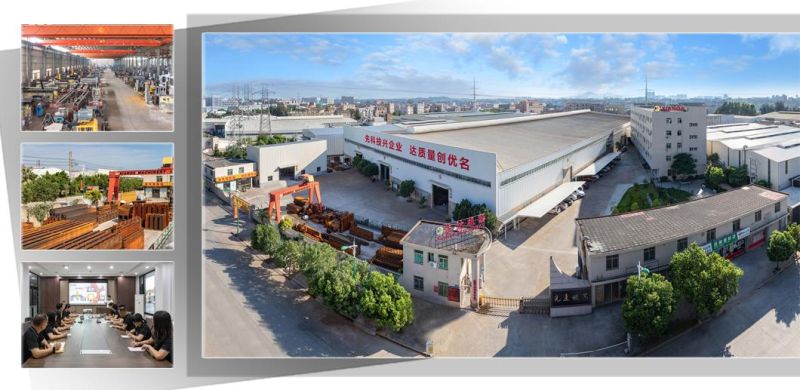

Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition

Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
