• Model NO.：APM-350-2000-12
• Control：PLC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Column of Diameter：Φ350mm-Φ2000mm
• Max Cutting Width：1300mm
• Outline Dimension：5800*1700*2900mm
• Grinding Number：12
• Gross Motor：32kw
• Efficiency：≈8 Min,M2
• Water Consumption：7 M3,H
• Gross Weight：6000kg
• Color：White,Blue
• Transport Package：Load in a 20 Feet Container
• Specification：5800*1700*2900mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. APM-350-2000-12 Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Column of Diameter Φ350mm-Φ2000mm Max Cutting Width 1300mm Outline Dimension 5800*1700*2900mm Grinding Number 12 Gross Motor 32kw Efficiency ≈8 Min/M2 Water Consumption 7 M3/H Gross Weight 6000kg Color White,Blue Transport Package Load in a 20 Feet Container Specification 5800*1700*2900mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

Product Description

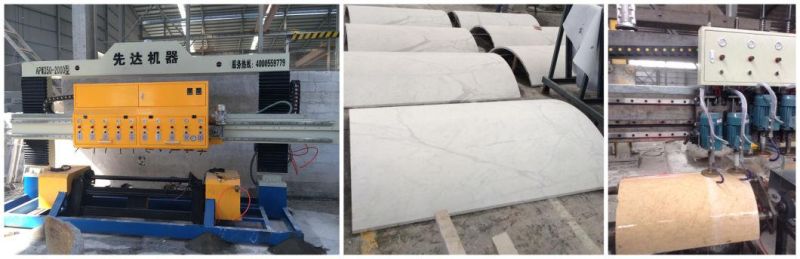

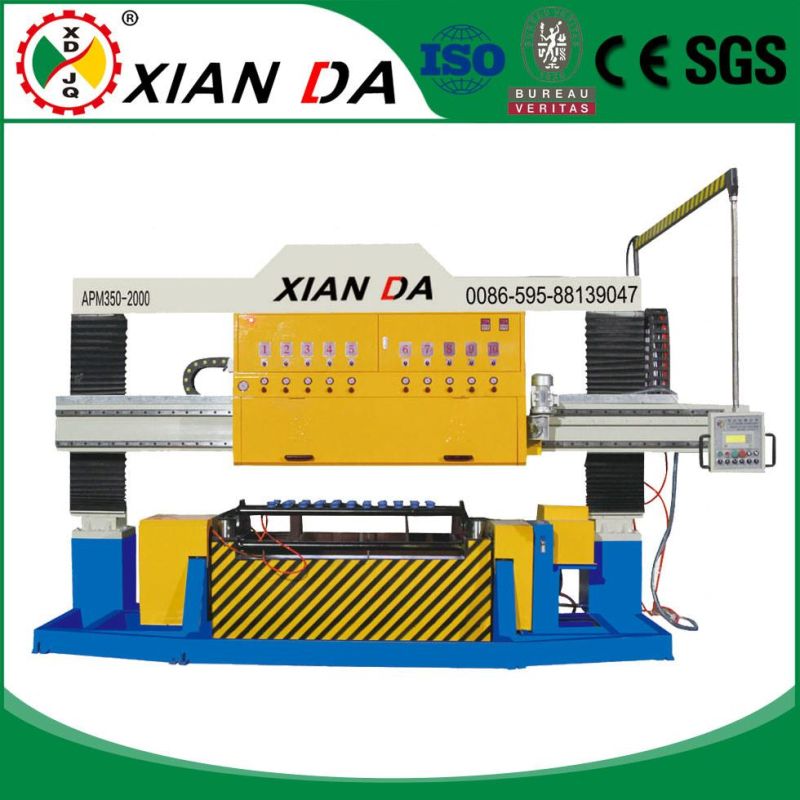

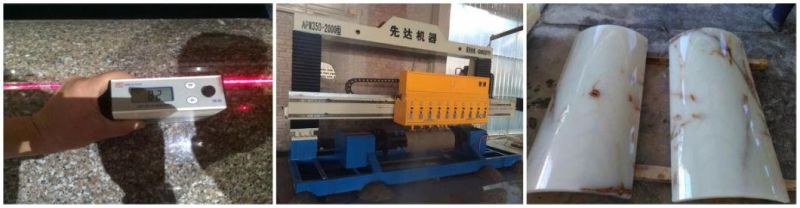

APM350-2000,Arc Slab Polishing Machine fix the arc slab by vacuum sucker, replaced conventional clamping fixing on both sides, solved the deviation of the squareness andXianda APM-350-2000 Natural Stone Circular Slab Polishing Machine inclination which were generated by the steps trimming-grinding, at the meanwhile, clear the customer's concerns about arc slab edge&angle damage. Machine adopt linear guides, multi grinding head and PLC system. it has a high-precision, high efficiency, easy operation and others, it is the ideal equipment for arc slab polishing.

This machine is better than fix by gripping two sides.And solve the problem which caused verticality and inclination mistake after trimming.It won't broke the edge of column slabs.

Technical Parameter

Parameter	Unit	APM-350-2000-12
Processing diameter	mm	350-2000
Processing length	mm	1300
Grinding number	piece	12
Gross motor	kw	32
Efficiency	min/M2	≈8
Outline dimension	mm	5800*1700*2900
Water consumption	m³/h	7
Gross weight	kg	6000

Xianda Machinery

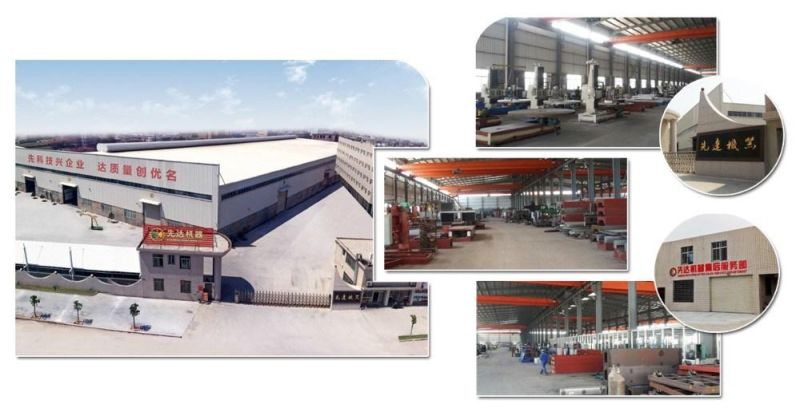

Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition

Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
