• Model NO.：WKQ-1200
• Control：PLC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Max Blade Diameter：1200mm
• Max Lifting Travel：760mm
• Dimension of Worktable：3000*2000mm
• Workable Tilting Degree：0-85°
• Worktable Rotation Degree：0° ,90°
• Water Consumption：6m3,H
• Main Motor：22kw
• Gross Motor：28kw
• Outline Dimension：6400*4800*4400mm
• Gross Weight：6800kg
• Transport Package：Load in a 40 Feet Container
• Specification：6400*4800*4400mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. WKQ-1200 Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Max Blade Diameter 1200mm Max Lifting Travel 760mm Dimension of Worktable 3000*2000mm Workable Tilting Degree 0-85° Worktable Rotation Degree 0° ,90° Water Consumption 6m3/H Main Motor 22kw Gross Motor 28kw Outline Dimension 6400*4800*4400mm Gross Weight 6800kg Transport Package Load in a 40 Feet Container Specification 6400*4800*4400mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

STONE CUTTING MACHINE FOR MIDDLE SIZE BLOCK

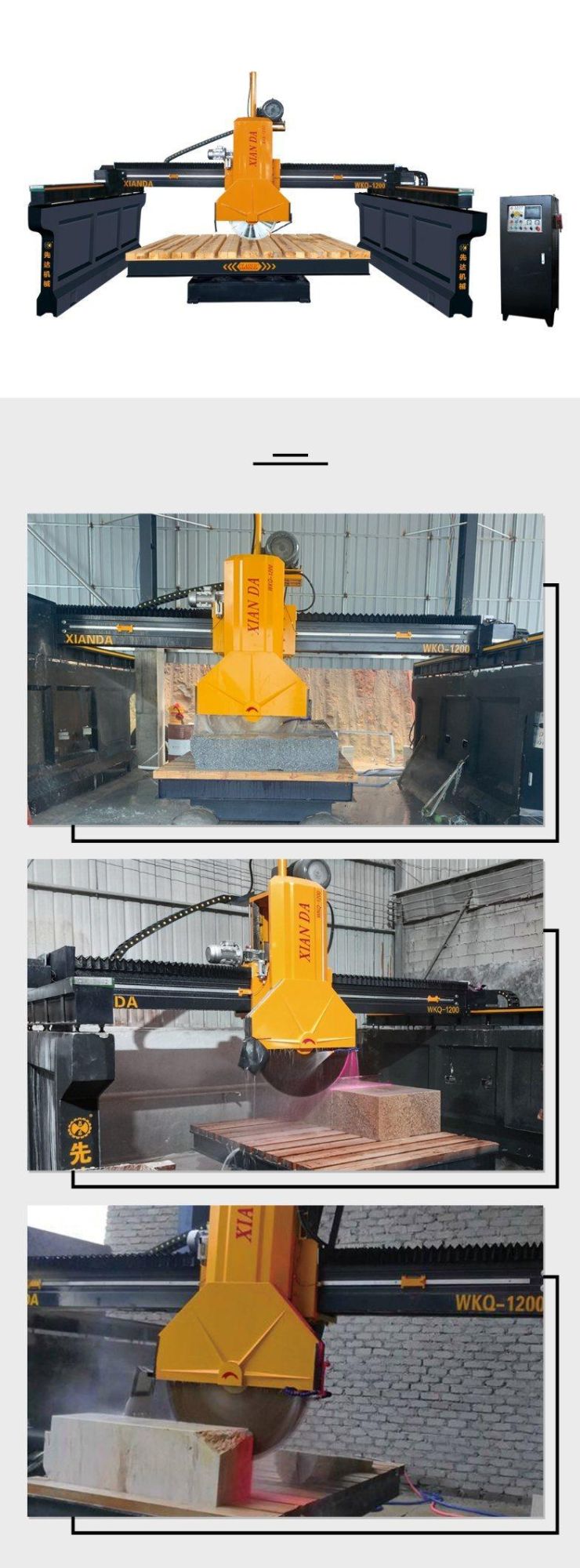

Wkq-1200 Granite and Marble Stone Bridge Block Cutting Machine

Product Description

China Xianda WKQ-1200 bridge block cutting machine for granite marble,which be designed by reasonable structure, adopting PLC system and Human-machine interface, togethering Chinese & English double operation language and infrared device, equipting with ultra-high precision rotary encoder, using inverter to control left-right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through slide plate, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials. Thus the whole machine is featured as high cutting efficiency,high stability,esay-operating, specially cutting shaped stone products,tombstone and curb stone.

Technical Parameter

Parameter	Unit	WKQ-1200
Max blade diameter	mm	1200
Max lifting travel	mm	760
Worktable size	mm	3000*2000
Worktable rotating degree	°	0-90°
Water consumption	m³/h	6
Main motor	kw	22
Gross motor	kw	28
Outline dimension	mm	6400*4800*4400
Gross weight	kg	6800

Xianda Machinery

Fujian  Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition

Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
