• Model NO.：BRT-160T
• Color：Green
• Press：160t
• Weight：5000kg
• Power：15lw
• Transport Package：Wooden
• Specification：CE
• Trademark：BESTLINK
• Origin：Xiamen, Fujian
• HS Code：84791090
• Production Capacity：1000sets,Year

Basic Info.

Model NO. BRT-160T Color Green Press 160t Weight 5000kg Power 15lw Transport Package Wooden Specification CE Trademark BESTLINK Origin Xiamen, Fujian HS Code 84791090 Production Capacity 1000sets/Year

Product Description

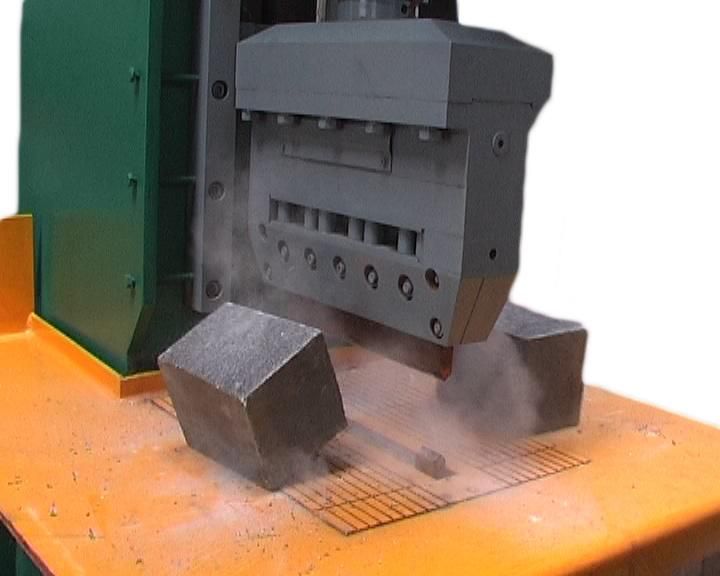

Hydraulic stone cutting machine

Online video of Hydraulic stone cutting machine:HTTP://xmbestlink.en.made-in-china.com

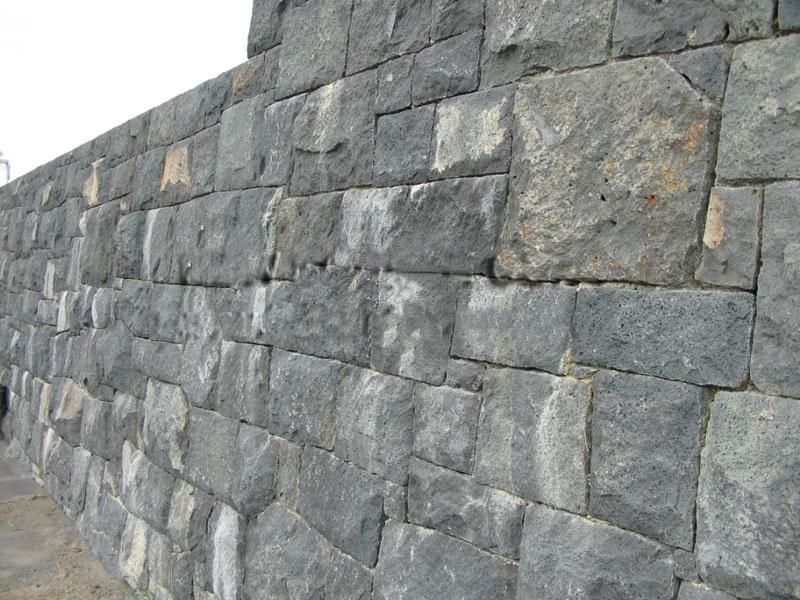

Hydraulic stone cutting machine is suitable for splitting all types of natural and artificial stones, cube stone/curb stone/wall stone/blockstone/tiles/pavingstone/countertops/vanity tops.Every splitting machine can be integrated in a production line.It could be especially designed according to your equirements.

The main characters of our hdyraulic stone cutting machines are:
1.The electrical control cabinet adopt the French Schneider, with internal layout reasonable and neat, and
Through the senor switch to facilitate rapid signal to make the movements of the machine consecutive and accurate.
2.The hydraulic system adopts from German Bosch Rexroth, providing sustainable, stable and sufficient
Power to the machine.
3.The motor is Siemens motor.4.With intelligent gear cutting head, itcould adjust itself according to the smooth condition of the stone surface.
5.We can design a perfect stone cutting line from blocks to paving stone, wall stone, mosaic, cobble stone, etc, upon the demand of customers.

Stone Splitter	BRT160T-500×550-RB30×15
Technical Specification of Item 4:
DESCRIPTIONS	UNIT	VALUE
Blade Width	Mm	500
Piston extend	Mm	570
Max splitting power	Ton	160
Max splitting width	Mm	500
Max splitting height	Mm	550
Dimension of main machine(L*W*H)	Mm	1970*1200*3230
Electric power	KW	15
Electric voltage	U	380V,50HZ
Weight	Kg	7500
Oil tank capacity	L	670
Blade with adaption(mm)	Mm	30(upper)*15(Lower)
