Monthly Deals Stone Edge Cutting Machine CNC Bridge Saw Granite Marble Cutting Machine for Stone Processing
Xiamen Aga Import and Export Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：Laser Cutting Machine
- Usage：Granite, Marble
- Application：Machinery & Hardware, Mineral Industry, Stone Industry
- Source Voltage：380V
Base Info
- Model NO.：HQ400
- Automation：Automatic
- Cutting Ability：High Speed
- Control：CNC
- Certification：ISO
- Max.Cut Size：3200*2000mm
- Max.Cut Thick：230mm
- Table Tilting：0-85degree
- Table Rotation：360degree
- Table Size：3200*2000mm
- Blade Tilting：0-45degree
- Max.Blade Size：700mm
- Spindle Motor：18.5kw
- Dimention：6*5.8*3.5m
- Transport Package：20gp
- Specification：6m*5.8m*3.5m
- Trademark：AGA
- Origin：China
- HS Code：84141080
- Production Capacity：50sets,Month
Description

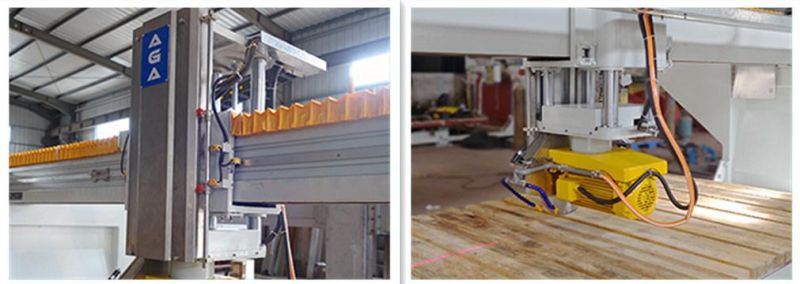

PRODUCT FEATURES:
1. Mono-block structure, side beams are fixed on the steel, solid and stable.
2. Equipped with infrared device for precise cutting location
3. Wide crossbeam of bridge structure for large size of slab cutting and it is made of strong cast iron to avoid distortion after long-term use.
4. Guide rail on the crossbeam is in an oil bath and it is protected from water and dust
5. Dustproof design of the slide track ensures the precise guide movement & long lifespan
6. Vertical movement of the machine head is driven by an accurate hydraulic system, and the stroke is adjustable
7. Cross movement of the machine head on the crossbeam is driven by a motor equipped with OMRON rotary encoder by which the precision is guaranteed
8. The crossbeam is installed on the side beams by a lineal guide track that results in less friction force and provides better flexibility and reliability
9. Worktable can tilt 0-85°

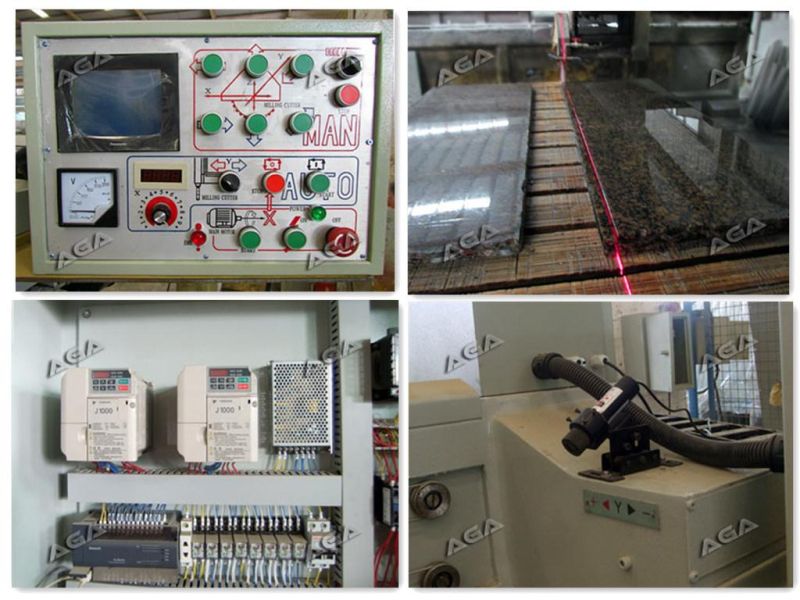

10. Equipped with PANASONIC frequency transducer and PLC, programmable and fully automatic
11.Touch-sensitive operating system, friendly human-machine interface design

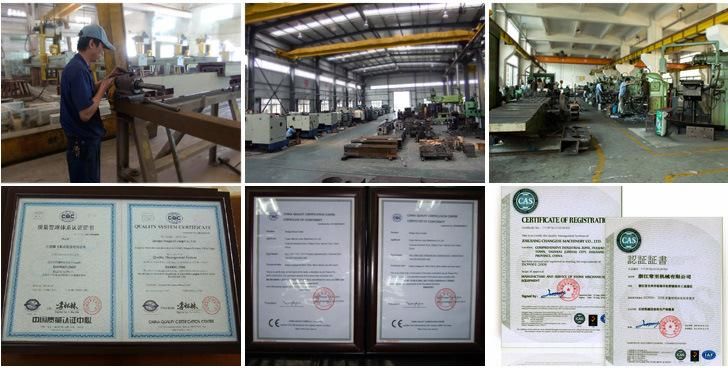

ABOUT US
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. the products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. the equipments have been successfully exported to world stone market in usa, canada, europe, mid east, egypt, india, etc.
AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers in their pursuit of a true competitive advantage. our philosophy is all about professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately.
