• Model NO.：XZQQ625A
• Control：CNC
• Certification：ISO, CE
• Max.Cut Size(L*W)：3200*3200mm
• Table Tilting：0-85°
• Blade Tilting：0-45°
• Table Rotation：0-360°
• Spindle Motor：15kw
• Transport Package：Plastic
• Specification：6*5*2.6m
• Trademark：AGA
• Origin：China
• HS Code：84641010
• Production Capacity：50sets,Month

Basic Info.

Model NO. XZQQ625A Control CNC Certification ISO, CE Max.Cut Size(L*W) 3200*3200mm Table Tilting 0-85° Blade Tilting 0-45° Table Rotation 0-360° Spindle Motor 15kw Transport Package Plastic Specification 6*5*2.6m Trademark AGA Origin China HS Code 84641010 Production Capacity 50sets/Month

Product Description

Introduction of  Bridge Saw:
This monobloc bridge saw machine is computer control and able to program for up to 99 repeat cuts automatically and also capable of manual operation.
The mechanical body is made of very strong cast iron for stability and long lifetime. It also provides covered oil bath for the movements of bridge rails.

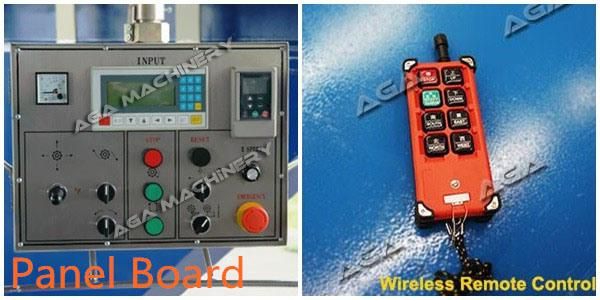

Also all the functions are operated on the control panel that make it very user friendly.

Structure:
Automatic Bridge Saw for cutting granite marble and other stones.
The machine is a popular bridge saw that widely used in trimming and fabricating slab, tile, countertops, etc. It is able to cut 3200mm length and 2000mm width and 175mm thick (126"×78" ×7").

Feature:
The blade travels on the beam and it also provides power tilting 0 - 45 degree for mitre edge trim. The table turns 0 - 360 degree automatically and it also tilts 0 - 85 degree hydraulic for easy load and unload of the material.

Specification:

Blade size	400-625mm  16"-25"
Cut length	3200mm   126"
Cut width	2000mm   78"
Cut thick	170mm      7"
Blade tilt	0 - 45°
Table rotate	0 - 360°
Table tilt	0 - 85°
Spindle motor	15kW     20HP
Size (L×W×H)	6×3×2.6 m
Weight	7200 Kg

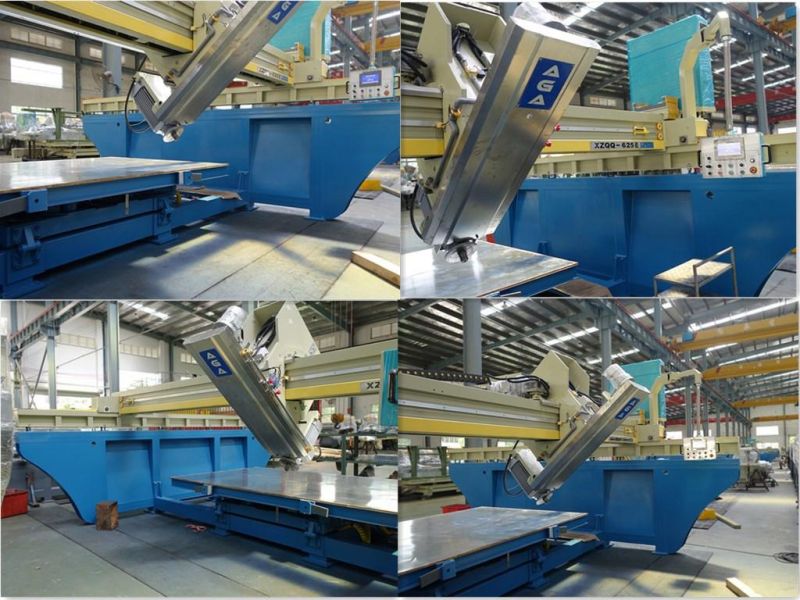

Pictures of Automatic Bridge Saw:







Guarantee & after sale service:
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.

FAQ:
1, How to pay to you?
T/T in advance We accept 30% deposit, 70% before shipment
2, How long is the delivery time?
For standard machines, it would be 2-5 weeks; For non-standard machines and customized machines according to client s specific requirements, it would be 10 days longer.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
4, How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

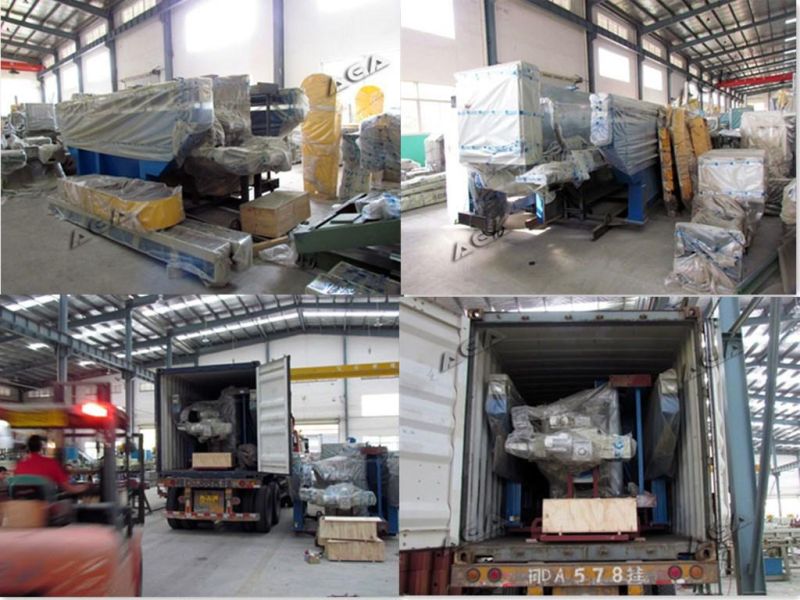

5, What is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
Save space as much as possible for container loading.

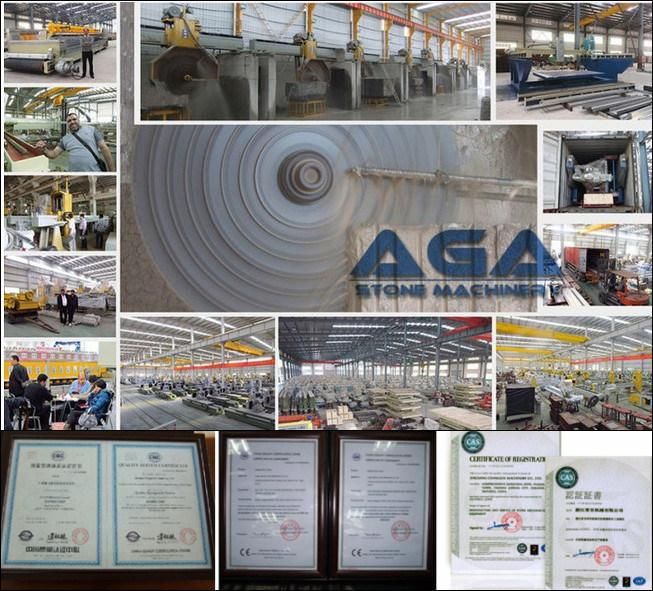

AGA company:

AGA has been devoting to making machinery for processing and fabrication of mabrle granite and providing reliable service. The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. The equipments have been successfully exported to world stone market in U.S.A, Canada, Europe, Mid East, Egypt, India, etc.

AGA understands that machienry creates values for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers in their pursuit of a true competitive advantage.

We care about customers because by choosing us you are giving us a chance to make your machine more productive that also makes your products unrivaled in the competitive market and we are happy to do that professionally and passionately.
