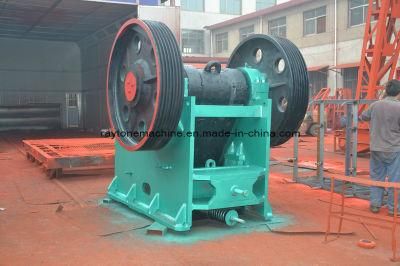

PE600X900 Jaw Crusher Jaw Stone Crusher Stone Jaw Crusher
Linyi Raytone Machinery Imp&Exp Co., Ltd.- Type：Jaw Crusher
- Application：Construction, Mineral Industry, Stone Industry
- Drive：Electric
- Crushing Style：Grinding & Impact
- Compressive Strength (For Crushing)：250-300MPA
- Crushing Degree：Coarse Crusher
Base Info
- Model NO.：PE600X900
- Finished Surface：Cut Off Tool
- Certification：CE, ISO, CCC
- Condition：New
- Color：as Required
- Max. Feeding Size：480mm
- Adjusting Range：75-200mm
- Capacity：90-180m3,H
- Main Shaft Speed：250r,H
- Motor Power：75kw
- Transport Package：Suitable for Sea Transportation
- Specification：2300*2060*2375
- Trademark：raytone machinery
- Origin：Shandong, Linyi
- HS Code：464909000
- Production Capacity：50 Set Per Month
Description
technical function Max. feeding size
(mm) Adjusting range
(mm Capacity
(m³/h) Main shaft speed
(r/h) Motor power
(kw) Overall dimensions
(mm) PE150×250 125 10-40 2-6 285 5.5 922×745×933 PE200×300 165 20-70 5-15 285 7.5 1256×1100×1120 PE250×400 210 20-80 8-35 310 18.5 1108×1142×1392 PE400×600 340 40-90 15-60 300 30 1700×1732×1653 PE500×750 425 50-100 40-110 275 55 1860×1924×1830 PE500×900 425 50-100 55-160 255 55 1860×2074×1830 PE600×900 480 75-200 90-180 250 75 2300×2060×2375 PE600×1200 480 75-200 100-360 250 75 2300×2335×2375 PE750×1060 630 80-200 110-320 250 90 4180×2560×3070 PE900×1200 750 100-200 220-450 250 110 3180×2786×3010 PE1200×1500 1000 100-260 400-800 300 160 4200×3750×3820 PEX150×500 125 10-40 8-18 300 11 1220×1230×1180 PEX150×750 125 10-40 8-22 300 15 1220×1480×1180 PEX250×750 210 10-50 15-35 300 22 1400×1617×1412 PEX200×1000 160 10-55 11-36 300 22 1580×1976×1180 PEX250×1000 210 15-55 16-50 300 30 1580×1992×1380 PEX250×1200 210 15-60 18-60 300 37 1530×2192×1380 PE1000×1200 850 195-265 312-430 200 200 5360×2900×3500
Features and Advantages:
1. High efficiency and low operation cost
2. Flexible capacity
3. Simple structure and easy to operate
4. Over loading protection
5. Easy replacement of wearing parts
6. Long service life
7. High reliability
8. Wide ranges of choices
9. Alternative ordinary and hydraulic types
