• Model NO.：CNFX - 1300
• Control：PLC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Max Cutting Diamension：300-600mm
• Max Lifting Travel of Cutting Frame：800mm
• Dimension of Worktable：3000*1300mm
• Main Motor：15kw
• Gross Motor：18kw
• Outline Dimension：5500*2300*1800mm
• Water Consumption：6m3,H
• Gross Weight：5000kg
• Use for：Cutting Profiling Lines,Column,Column Slab
• Sagment Qty：Two
• Transport Package：Load in a 20 Feet Container
• Specification：5500*2300*1800mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. CNFX - 1300 Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Max Cutting Diamension 300-600mm Max Lifting Travel of Cutting Frame 800mm Dimension of Worktable 3000*1300mm Main Motor 15kw Gross Motor 18kw Outline Dimension 5500*2300*1800mm Water Consumption 6m3/H Gross Weight 5000kg Use for Cutting Profiling Lines,Column,Column Slab Sagment Qty Two Transport Package Load in a 20 Feet Container Specification 5500*2300*1800mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

Product Description

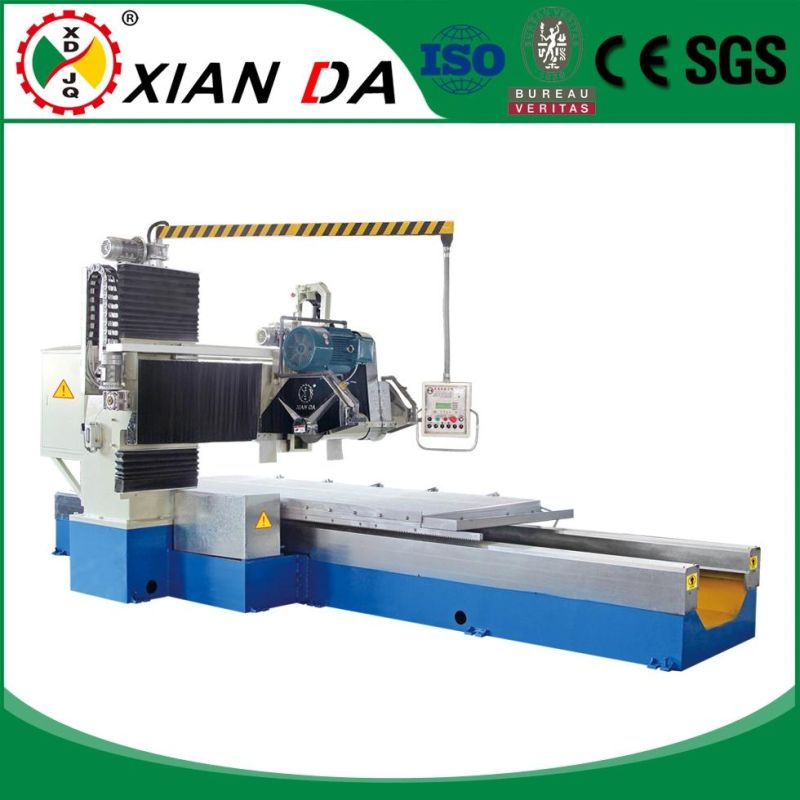

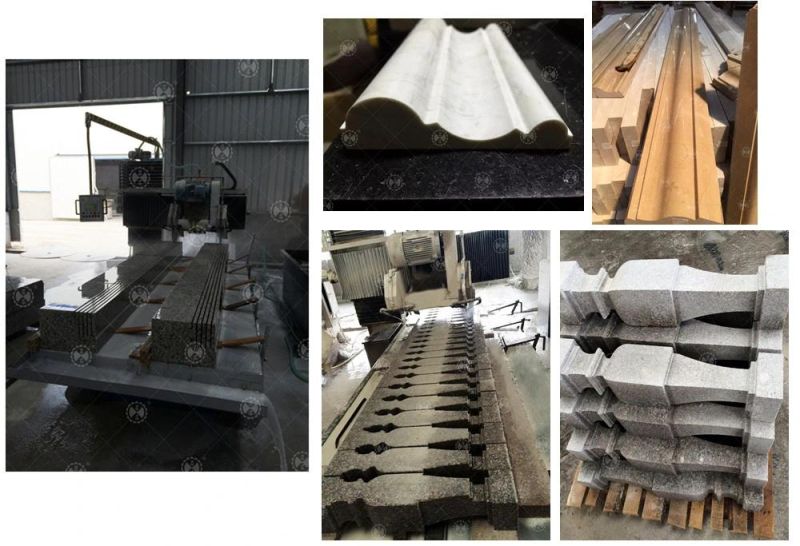

CNFX-1300 XIANDA MARBLE GRANITE EDGE PROFILING MACHINE adopts PLC  system profiling lines, cutting with double blades, which is specially used for cutting profiling lines, roman column, big column slab and so on for the heterotype stones.

Technical Parameter


eter	Unit	CNFX-1300	CNFX-1400
Blade diameter	mm	φ300-φ600	φ300-φ600
Max lifting travel of cutting frame	mm	800	800
Dimension of worktable	mm	3000*1300	3500*1400
Main motor	kw	15	15
Gross motor	kw	18	18
Outline dimension	mm	5500*2300*1800	6000*2400*1800
Gross weight	kg	5000	5500
Water consumption	m³/h	6	6

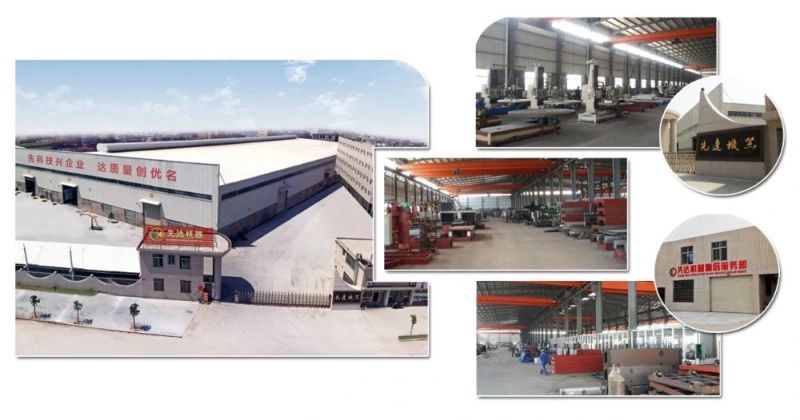

Xianda Machinery

Fujian  Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition

Our Service

We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.


32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.

Top 5 stone cutting machine manufacturer with ISO&CE certificate.

Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.

We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.

After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.

We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.  FAQ



Q: How to place order to your company?

A: 1. Inquiry-Professional quotation.

     2. Confirm the price, lead time, logo, payment term etc.

     3. Xianda sales send the Proforma Invoice with seal.

     4. Customers make the payment as a deposit and send us Bank receipt.

     5. Sales confirm the receipt of down payment . After approval, we will arrange the production & inform the estimated time.


Q: How is After-sales Service Provided?

A: Engineer can dispatch for assembly machinery


Q: Does it can accept OEM?

A: Yes,and some of the part can change as customer require.



Q: Are you Manufacture Factory?

A: Yes,that we are the stone machinery factory for over 30 years.
