• Model NO.：PY series
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• After-Sale Service：for Whole Using Life
• Test&Installation：Engineer Assigned
• Export Markets：Global
• Transport Package：Standard Container
• Specification：CE, ISO
• Trademark：Zenith
• Origin：Shanghai Zenith, China
• HS Code：8474209000
• Production Capacity：40-850tph

Basic Info.

Model NO. PY series Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year After-Sale Service for Whole Using Life Test&Installation Engineer Assigned Export Markets Global Transport Package Standard Container Specification CE, ISO Trademark Zenith Origin Shanghai Zenith, China HS Code 8474209000 Production Capacity 40-850tph

Product Description

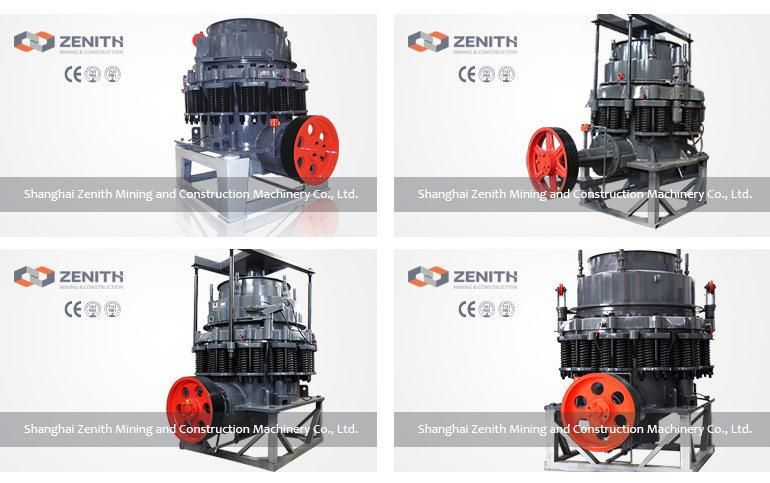

Hot sale high efficiency granite py cone crusher

The zenith cone crusher has been developed to crush high or medium hardness material, such as iron ore, copper ore, limestone, quartz, granite, and sand stones, ect. And The crusher is used in metallurgical, construction, road building, chemical, silicate Industries. The cone crusher has the advantage of reliable construction, high prod activity, easy adjustment and less cost in operation. The spring release system of crusher acts an overload protection system that allows tramp to pass through the crushing chamber without damage to the crusher, use dry oil, water, two kinds of sealed formation. Cone crusher made plaster stone and engine oil separated, assured reliable performance. The type of crushing chamber depend upon the size of feed and fineness of the crushed product. The standard type is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head is applied to fine crushing.

Hot sale high efficiency granite py cone crusher Features:

1 The zenith cone crusher is of high reduction ratio, high performance, low power consumption, and uniform size products. The crusher machine has been used in the secondary and tertiary crushing.
2. The cone crusher consists of body frame, transmission shaft, eccentric sleeve, cone bearing, breaking cone, supporting sleeve, adjusting sleeve, feeding part, spring, elastic coupling, lubrication part, electric part, ect.

Hot sale high efficiency granite py cone crusher technical data:

Model	Diameter of Bottom End of Conical Crushing Head(mm)	max feeding size	adjustment range of discharge opening	capacity(t/h)	power	Rev. of Eccentric shaft	Overall dimension(mm)
PYB600	600	75	12-25	40	30	356	2234×1370×1675
PYZ600	600	35	3-13	5-23	30	356	2234×137×1675
PYB900	900	115	15-50	50-90	55	333	2692×164×2350
PYZ900	900	60	5-20	20-65	55	333	2692×164×2350
PYD900	900	50	3-13	15-50	55	333	2692×164×2350
PYB1200	1200	145	20-50	110-168	110	300	2790×1878×2844
PYZ1200	1200	100	8-25	42-135	110	300	2790×1878×2844
PYD1200	1200	50	3-15	18-105	110	300	2790×1878×2844
PYB1750	1750	215	25-50	280-480	160	245	3910×2894×3809
PYZ1750	1750	185	10-30	115-320	160	245	3910×2894×3809
PYD1750	1750	85	5-13	75-230	160	245	3910×2894×3809
PYB2200	2200	300	30-60	490-750	260-280	220	4622×3302×4470
PYZ2200	2200	230	10-30	200-580	260-280	220	4622×3302×4470
PYD2200	2200	100	5-15	120-340	260-280	220	4622×3302×4470
