• Model NO.：HQ700
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Dimention(L*W*H)：6m*5.7m*3.5m
• Max. Cut Size(L*W)：3200*2000mm
• Max. Cut Thick：230mm
• Table Tilting：0-85 Degree Easy for Materials Loading
• Table Rotation：0-360 Degree Stopped Any Postion
• Blade Tilting：0-45 Degree for Miter Cut
• Spindle Motor：18.5 Kw 25HP
• Transport Package：Plastic Packing
• Specification：Dimention (L*W*H): 6*5.7*3.5m
• Trademark：AGA
• Origin：Xiamen, China
• HS Code：84649090
• Production Capacity：200sets,Month

Basic Info.

Model NO. HQ700 Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Dimention(L*W*H) 6m*5.7m*3.5m Max. Cut Size(L*W) 3200*2000mm Max. Cut Thick 230mm Table Tilting 0-85 Degree Easy for Materials Loading Table Rotation 0-360 Degree Stopped Any Postion Blade Tilting 0-45 Degree for Miter Cut Spindle Motor 18.5 Kw 25HP Transport Package Plastic Packing Specification Dimention (L*W*H): 6*5.7*3.5m Trademark AGA Origin Xiamen, China HS Code 84649090 Production Capacity 200sets/Month

Product Description

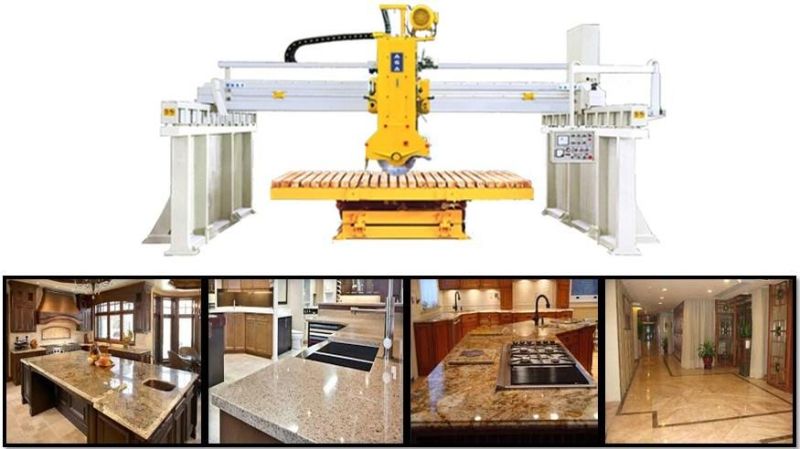

Laser Bridge Saw Stone Bridge Cutting Machine for Granite Marble Auto Cutting
Machine Model: HQ700
Automatic stone cutting machine with good price for slab tiles countertops cutting.
The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate.
Preferable for cutting granite, marble, quartz and natural stones.
It's a reliable machine with good price, if you're looking for good machine, this is exactly what you need.


Stone cutting machine specification:

Model	HQ700
Blade tilting 45° (Angle Cut Mitered)	Yes
Table Rotation 90°	Yes
Table Rotation 0-360°  (stopping at each 45°)	Yes
Table tilting 0 - 85°	Yes
Power Of Spindle Motor	18.5kw / 25 HP
Max Length of Cutting: (Table Size)	3200 x 2000mm / 126"x78"
Max Thick of Cutting:	230 mm 9"
Steel Walls Included	Yes

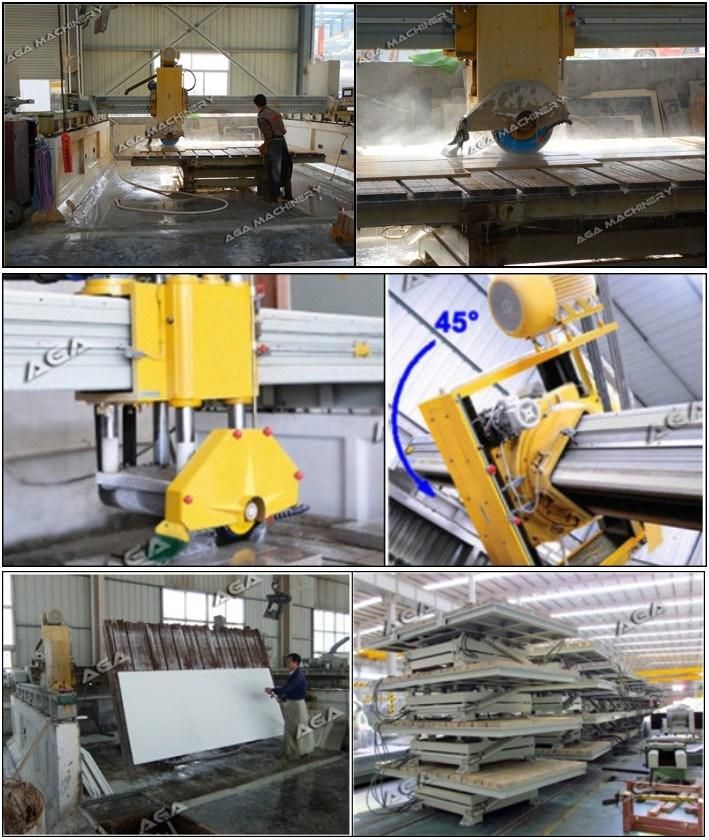

Stone cutting machine HQ700 features:
We provide it quite a lot to the granite marble fabricators, customers paid and they got the machines and very happy. Belive this high quality machine will also return you much in your long term stone buesiness.
1. Robust stone cutting machine comes with strong steel frame, it's optional. If you don't need the steel stand, you can build the concrete stands.
2. Machine microcomputer control and works automatically by program.
3. The blade goes left and right, up and down, the bridge beam moves forward and backward.
4. Equipped with the infrared device, precise cutting location reachable.
5. Dustproof design of the slide track ensures the precise guide movement & long lifespan
6. The worktable can tilt & rotate in wide-angle for special processing
7. Table tilts up to 85 degree to load the big slabs easily and it also rotates 90 / 360 degree to change the cutting position.
8.  Touch screen operation is simple and Laser guide shows the cutting position that makes the cutting easier.
9. Machine head tilting 45 degree for miter cutting is optional.
10. PLC control system, programmable, fully automatic & smooth feeding.
11. Precise movement of head in X, Y, Z directions by rack & gear.
12. Electric parts of international brand adopted, a reliability guaranteed.
13. The touch-sensitive operating system, friendly human-machine interface design.
14. The crossbeam is made of strong cast iron to avoid distortion in the long run.
15. The guide rail is oil-impregnated and protected from water and dust.

Advantages:
-  Main structures made of strong cast iron and stainless steel for protection
-  Electric parts from Japan ensuring stable performance
-  Computer control automatic work and stable performance
-  Flexible movements in X, Y, Z axis by screw
-  Precise cut +/-0.2mm
-  Touch screen easy operation

Guarantee & After Sale Service:
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.

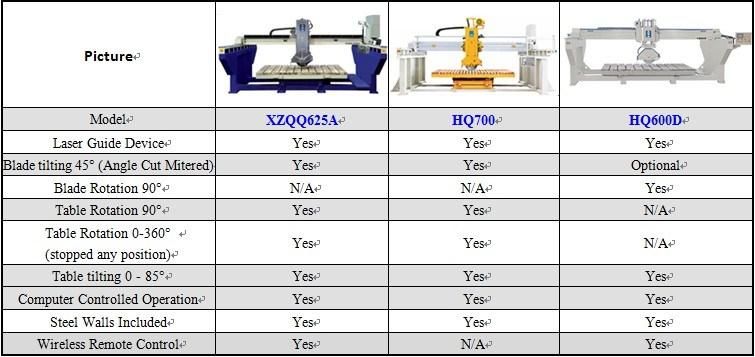

Related cutting machines for option:


FAQ:
1) Payment:
T/T 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

Key words:
stone cutting machine, cnc machine, cnc cutting machine, marble cutting machine, granite cutting machine, slab cutting machine, tile cutting machine, bridge saw, granite bridge saw, marble bridge saw, stone bridge saw, slab cut to size machine, slab sawing machine, etc.


Your dream machine is closer than you:

AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.
