Xianda Column Processing Machine CNC Two PCS Baluster Cutting Machine Chm-200/300-2

Fujian Xianda Machinery Co., Ltd.
  • After-sales Service：One Year for Spare Part
  • Warranty：One Year
  • Type：CNC Cutting Machine
  • Usage：Concrete Curb, Granite, Marble, Block
  • Application：Machinery & Hardware, Art & Craft, Construction, Stone Industry, Stone Machinery
  • Source Voltage：380V

Base Info

  • Model NO.：CHM-200,300-2
  • Automation：Automatic
  • Cutting Ability：High Speed
  • Control：CNC
  • Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, SGS
  • Blade Diameter：500mm
  • Max Processing Diameter：200,2PCS
  • Processing Length：50-1500mm
  • Main Motor：11kw
  • Gross Power：16kw
  • Outline Dimension：3200*1300*2700
  • Gross Weight：2700kg
  • Water Consumption：3m3,H
  • Advantage：Multi Function with Good Quality and Price
  • Key Words：Stone Machine
  • Warranty Time：One Year
  • Transport Package：Plastic Package, Suitable for Sea Transportation
  • Specification：3200*1300*2700mm
  • Trademark：Xianda
  • Origin：Jinjiang, Fujian, China
  • HS Code：84641090
  • Production Capacity：1000 Sets,Year

Description

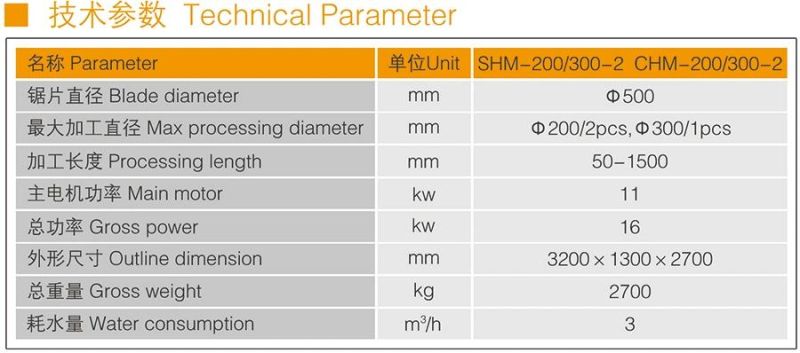

Basic Info.

Model NO. CHM-200/300-2 Automation Automatic Cutting Ability High Speed Control CNC Certification API, CCC, UL, SONCAP, GOST, ISO, CE, SGS Blade Diameter 500mm Max Processing Diameter 200/2PCS Processing Length 50-1500mm Main Motor 11kw Gross Power 16kw Outline Dimension 3200*1300*2700 Gross Weight 2700kg Water Consumption 3m3/H Advantage Multi Function with Good Quality and Price Key Words Stone Machine Warranty Time One Year Transport Package Plastic Package, Suitable for Sea Transportation Specification 3200*1300*2700mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description


Xianda Column Processing Machine CNC two pcs Baluster Cutting Machine CHM-200/300-2
Xianda Column Processing Machine CNC Two PCS Baluster Cutting Machine Chm-200/300-2



Product Description

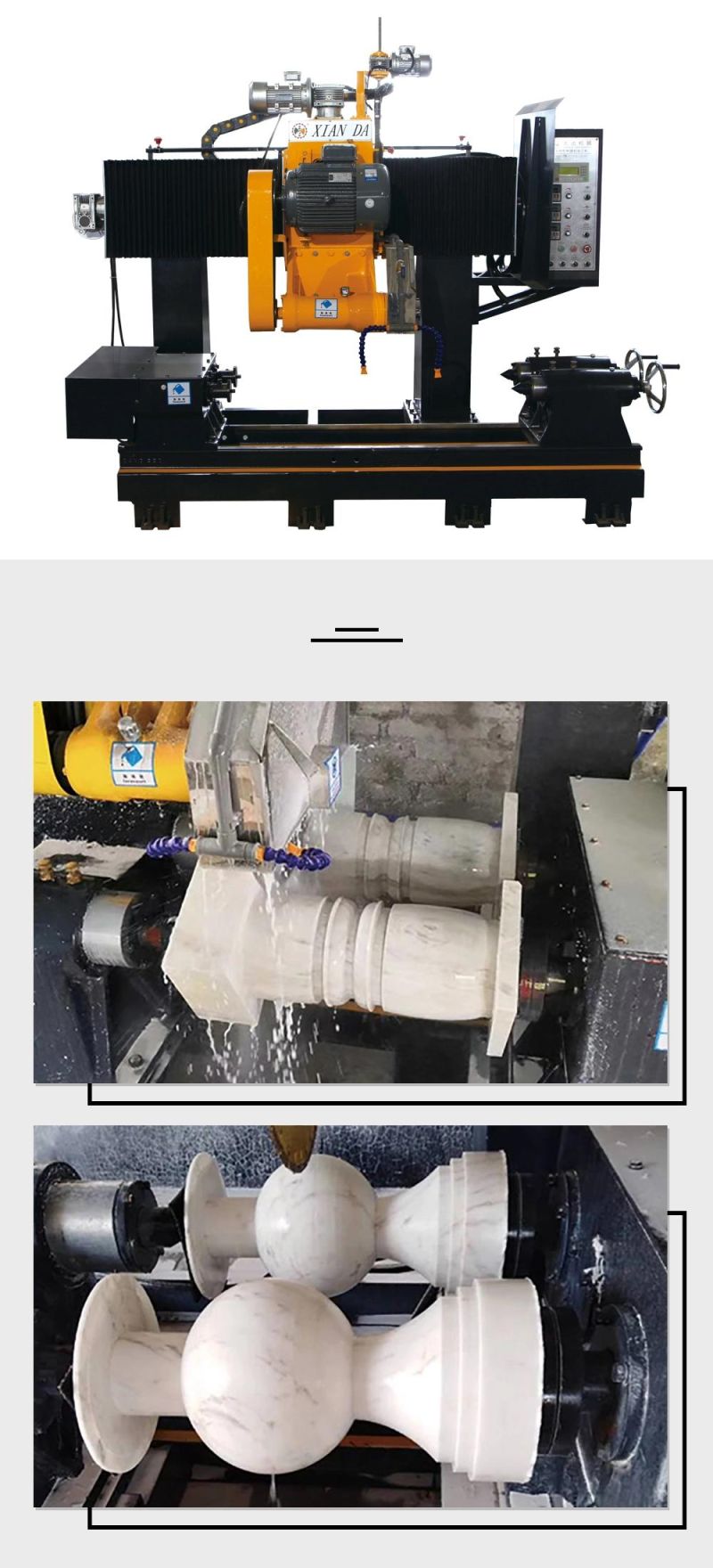

Fujian Xianda SHM-200/300-2 ,This machine adopts PLC/CNC control,three inverter,simple and practical structure,high efficiency.Dedicated to the processing of baluster,pillar,roadblock and others.

Xianda Column Processing Machine CNC Two PCS Baluster Cutting Machine Chm-200/300-2

Xianda machinery

Xianda Column Processing Machine CNC Two PCS Baluster Cutting Machine Chm-200/300-2

Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.


Exhibition

Xianda Column Processing Machine CNC Two PCS Baluster Cutting Machine Chm-200/300-2
Our Product

Xianda Column Processing Machine CNC Two PCS Baluster Cutting Machine Chm-200/300-2

Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.

Key words: stone cutting machine, wire saw machine, stone profiling.


Certification

Xianda Column Processing Machine CNC Two PCS Baluster Cutting Machine Chm-200/300-2

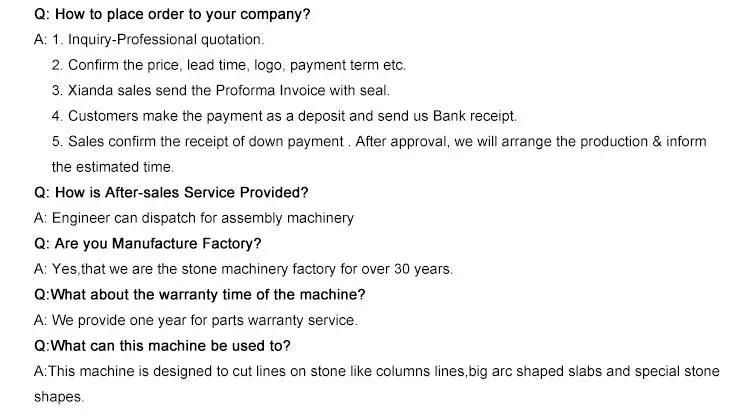

FAQ

Xianda Column Processing Machine CNC Two PCS Baluster Cutting Machine Chm-200/300-2
