• Model NO.：MS-02,MS-02S,MS-03,MS-02E,MS-2A,MS-12,MS-40
• Control：by Hand,Electric Power
• Certification：ISO, CE
• Voltage：220V,380V or Depends on Your Local Power
• Electric Power：1.1kw,3.0kw,5.5kw
• Dimension：500*400*700mm,650*700*1460mm,700*800*1700mm
• Usable：Splitting,Cutting Mosaic and Small Strip Tiles
• Operation Type：Manual , Electric
• Weight：90 Kg-550kg
• Splitting Force：2tons,3tons,12tons,40tons
• Max Cutting Width：300 Mm
• Max Cutting Height：100 Mm
• Color：Green and Blue, Other Color Available
• Transport Package：by Wooden Case,Plywood or Depends on Your Request
• Specification：CE, SGS
• Trademark：Xiamen Bestlink
• Origin：Xiamen, China
• HS Code：70161000
• Production Capacity：500sets, Month

Basic Info.

Model NO. MS-02/MS-02S/MS-03/MS-02E//MS-2A/MS-12/MS-40 Control by Hand/Electric Power Certification ISO, CE Voltage 220V/380V or Depends on Your Local Power Electric Power 1.1kw/3.0kw/5.5kw Dimension 500*400*700mm/650*700*1460mm/700*800*1700mm Usable Splitting/Cutting Mosaic and Small Strip Tiles Operation Type Manual / Electric Weight 90 Kg-550kg Splitting Force 2tons/3tons/12tons/40tons Max Cutting Width 300 Mm Max Cutting Height 100 Mm Color Green and Blue, Other Color Available Transport Package by Wooden Case/Plywood or Depends on Your Request Specification CE, SGS Trademark Xiamen Bestlink Origin Xiamen, China HS Code 70161000 Production Capacity 500sets/ Month

Product Description

Manufacturer Manual Mosaic Tiles Chopping Machine for Sandstone Marble

You can make out several kinds of mosaic effect stone.
High efficiency, low maintainance cost.

They are perfect for cutting marble, stone and strip tile and with high precision in mosaic and micro mosaic. The mosaic stone cutting machine comes complete with one replacement blade.

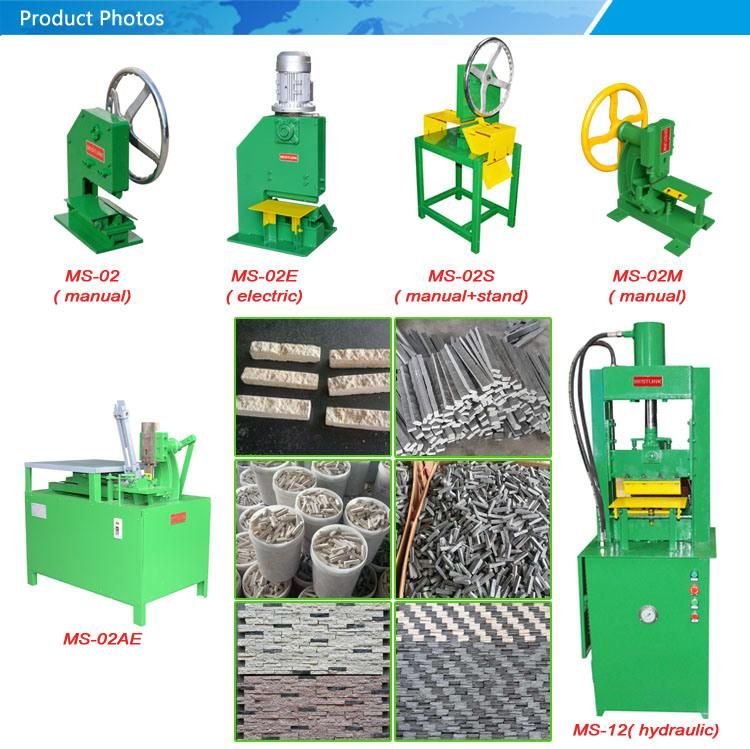

We have more than 7 models available, manual/electric/hydraulic.

Spltting force: 2tons/3tons, and 12tons/40tons for big mosaic stones/tiles.

Online videos:
http://youtu.be/NaiR5ZsNYHI        MS-12/MS-40
http://youtu.be/hCU_isRB9TM       MS-02
http://youtu.be/g6eQExYsoq0        MS-02S With stand/table(New model)
http://youtu.be/GD4cg6e252M       MS-02E Electric motor(New model)
http://youtu.be/W4ZDu_J4RE4        MS-03 Manual(New model)
https://xmbestlink.en.made-in-china.com     MS-2A (New Model)

Products Features:
Perfect for cutting sandstone, slate and marble. High precision in mosaic. The cutting machine comes complete with one replacemnet blade. Very easy operation--electric motor, save manual and make sure high efficiency. Work fast for mosaic stone and small strip tile cutting. So far, alll our clients give us high High evaluation and good feedback.


Why Choose Us?
Xiamen Bestlink Factory Co., Ltd since 1985 is committed to providing the best drilling and cutting machine, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. It is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.

Most of our products are of our own proprietary intellectual property rights, such as Pneumatic mobile rock drill, DTH driller, Hydraulic splitting machine, Hydraulic stone stamping machine, Mushroom stone machine.

Custom-made available:
We can design the mosaic machine based on clients' special requests, please
Feel free to let us know your idea, tell us the process purpose, our designer can
Fullfil your target.


Model No	MS-02 (Manual)	MS-02S (Manual+stand)	MS-03(Manual)	MS-02E(Electric)	MS-2A(Automatic)	MS-12(Hydraulic)	MS-40(Hydraulic)
Splitting Force	2 tons	2 tons	3 tons	2 tons	2 tons	12 tons	40 tons
Max Cutting Width	240 mm	240 mm	120 mm	240 mm	20mm	240 mm	300mm
Max Cutting Height	30 mm	30 mm	30 mm	30 mm	10-20mm	50-80 mm	60-100mm
Power Supply	0	0	0	1.1kw	0.37kw	3.0 kw	5.5kw
Oil Tank	0	0	0	0	/	30 L	60L
Overall Size	500*400*700 mm	650*700*1460mm	630x430x600mm	400*400*850mm	1100*650*1200mm	500*600*1600 mm	700*800*1700mm
Net Weight	90 kg	140 kg	60 kg	80 kg	200kg	210 kg	550 kg
