50-100tph Shanghai Atairac Yd Series Mobile Wheel Type Aggregate and Sand Crushing Plant
ATAIRAC ENGINEERED PRODUCTS INC(CHINA)- Type:Crusher Plant
- Application:Machinery & Hardware, Chemical, Construction, Mineral Industry, Stone Industry
- Drive:Motor
- Crushing Style:Extruding
- Compressive Strength (For Crushing):250-300MPA
- Crushing Degree:Fine Grinding Machine
Base Info
- Model NO.:YD
- Finished Surface:Outer Surface Process
- Certification:CE, ISO
- Condition:New
- Color:Orange
- Transport Package:Shipping
- Specification:BOX
- Trademark:ATAIRAC
- Origin:China
- Production Capacity:50 Sets Per Year
Description
Basic Info.
Model NO. YD Finished Surface Outer Surface Process Certification CE, ISO Condition New Color Orange Transport Package Shipping Specification BOX Trademark ATAIRAC Origin China Production Capacity 50 Sets Per YearProduct Description
Company Profile
Atairac Engineered Products Inc China is High-tech enterprise which specialized in the R&D, manufacturing, project planning and construction design, process design and system intelligence of various minerals and rocks for crushing, grinding, screening, feeding, conveying, environmental dust removal and other equipment.Atairac has a strong technical team, reliable production and processing equipment, efficient service construction team. From understanding to solving the customer needs, Atairac is committed to the combination of advanced, practical, efficient design concepts and reliable performance equipment, to provide customers with integrated mobile type, intelligent module, cost-effective crushing and screening system.
Application field

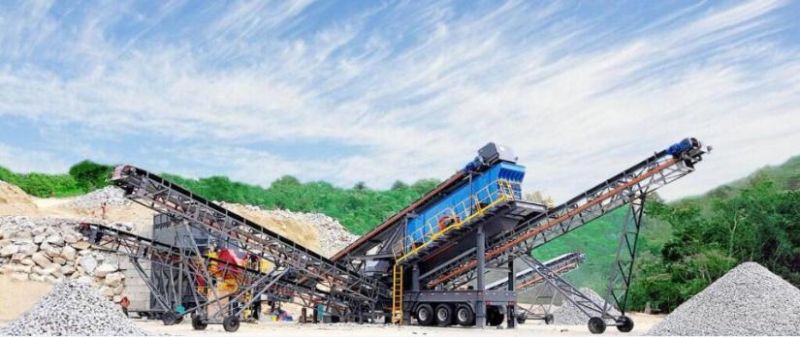

YD tire type mobile crushing and screening station can be widely used for coarse crushing, medium crushing, fine crushing, super fine crushing, sand making, sand washing, grading screening in various fields such as mining, building aggregate, solid waste treatment, etc, to satisfy the diverse needs of different customers.Design concept
YD tire-type mobile crushing and screening station adopts advanced modular design and flexible mobile configuration schemes, to develop linked mobile crushing and screening plant by combining efficient feeding, crushing, screening and conveying equipment with standard traction tire-type trailers, has a wide range of adaptability and advantages.Unit structure

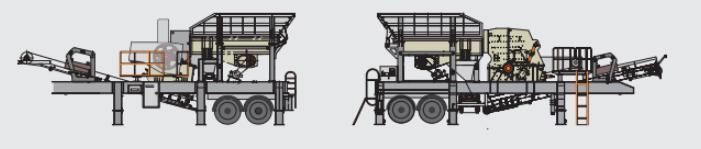

YD tire type mobile crushing and screening station has various forms of equipment configuration according to the different customer's processed materials and finished product granularity.1. Coarse mobile crushing station unitFor the mobile station used in the coarse crushing process, generally use the equipment configuration of the "vibrating feeder + jaw crusher or impact crusher". Meanwhile it is equipped with trailer hydraulic support, vehicle foldable belt conveyor, maintenance folding ladder, equipment maintenance platform, safety guardrail, safety guard, trailer auxiliary bracket, and detachable folding raw material warehouse for easy transportation.
Product Features
Large capacity foldable material hopperReliable high performance coarse crusher
Coarse Crushing Feeder pre-screening function
Compact structure towable heavy-duty tire chassis

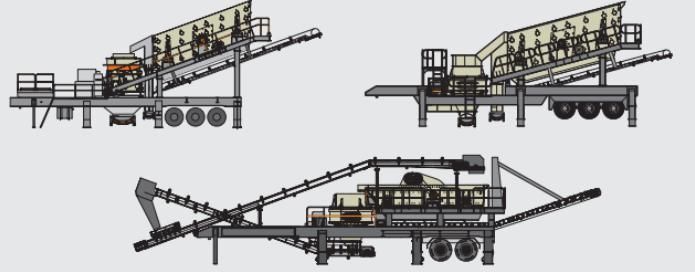

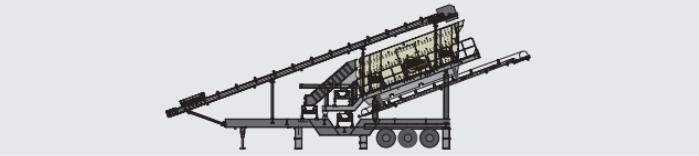

2. Medium mobile crushing station unitFor the mobile station used in the medium crushing process, it adopts the configuration of "screening machine + impact crusher or cone crusher". It is equipped with trailer hydraulic support legs, vehicle foldable belt conveyor, maintenance folding ladder, equipment maintenance platform, safety guardrail, safety guard, trailer auxiliary bracket, tilting vibrating screen which can be lifted and lowered, and it is convenient for transportation.
Product Features
With high-performance medium-crushing equipment, well-adaptedThe vehicle screening machine, facilitate for the product grading of multi-stage crushing process.
High-performance medium-crushing equipment ensures excellent product size
The vehicle screening machine platform with lifting function for easy transportation

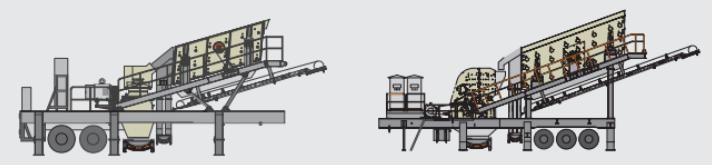

3. Fine crushing, shaping, sand making mobile station unit
The mobile station used for the fine crushing, shaping and sand making process can adopt the configuration structure of "screening machine + fine crushing sand making machine". According to the different structure of screening machine, it is divided into two types: horizontal screen and inclined screen.Fine crushing, shaping and sand-making mobile station unit, equipped with trailer hydraulic support legs, vehicle foldable belt conveyor, maintenance folding ladder, equipment maintenance platform, safety guardrail, safety guard, trailer auxiliary bracket, tilting vibrating screen which can be lifted and lowered, and it is convenient for transportation.
Product Features
Reliable fine crushing or shaping equipmentEquipped with vehicle screening and conveying equipment, convenient for material classification
Excellent grain shape, reasonable gradation
Flexible and towable tire chassis
4. Grading screening mobile plant unit The grading and screening mobile station adopts the configuration structure of "horizontal vibrating screen or dip angle vibrating screen". It is equipped with trailer hydraulic support legs, vehicle foldable belt conveyor, maintenance folding ladder, equipment maintenance platform, safety guardrail, safety shield, trailer auxiliary bracket, and tilting vibrating screen which can be lifted and lowered, and it is convenient for transportation.
Product Features
Special screening station with independent screening function can accurately classify different finished products after crushingIntegrated vehicle screen to facilitate the transportation of finished materials
Flexible and towable tire chassis

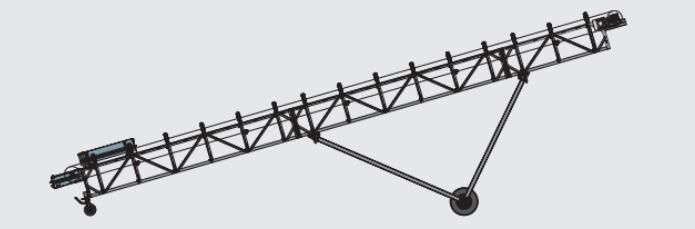

5. Rubber wheel type mobile belt conveyor
As the main connecting equipment between the mobile crushing and screening stations, the rubber wheel belt conveyor is more flexible and convenient in the layout of the mobile station system. Simple structure, module design, fast installation, flexible movement, stable operation, adapts to various site conditions and process requirements.Product Features
Sturdy structure, flexible movementModular design, easy installation
Process design and model selection basis
YD tire-type mobile crushing and screening station belongs to the individualized product series. The equipment selection and process design will be different according to the difference of customer's processed materials, capacity, size of the finished product, and the grading. Generally, customers need to provide the following reference indicators and requirements when designing proposal.- Type of processed materials: ore, rock, solid waste
- Hardness of processed materials: Extremely hard, medium hard, common hard.
- Name of processed materials: granite, basalt, river pebble, sandstone, limestone, dolomite, iron ore, copper, gold, lead and zinc, lump coal, coal gangue, bauxite, construction waste, etc.
- Particle size and gradation of processed materials: The particle size and the particle size distribution of the raw materials determine the design and capacity of the equipment configuration: YD tire-type mobile crushing and screening station is optional in the range of 0-500/h.
- Granularity and gradation of the finished products: The size and grading of the finished product required by the customer determine the configuration of the process and equipment. The YD tire-type mobile crushing and screening station can produce various specification products such as 0-5-10-20-40-80mm or 0-5- 10-16-31.5mm
- Conditions of the construction site: square flat ground, step sloping field, strip flat ground

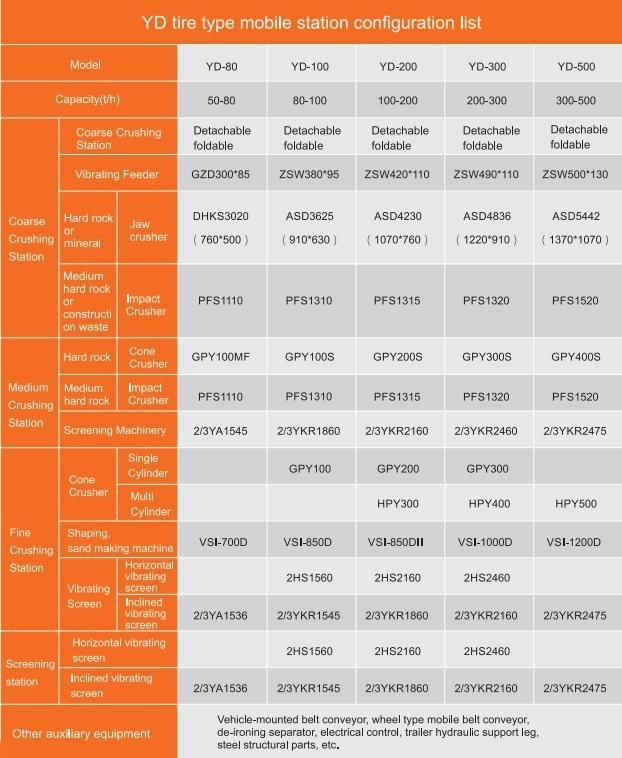

YD tire type mobile station configuration list

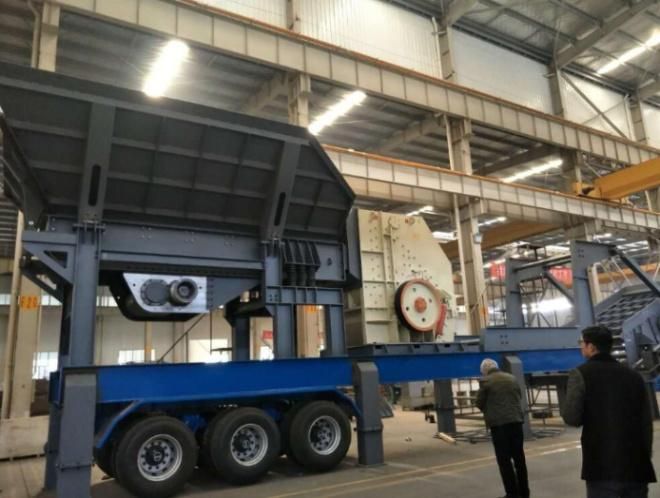

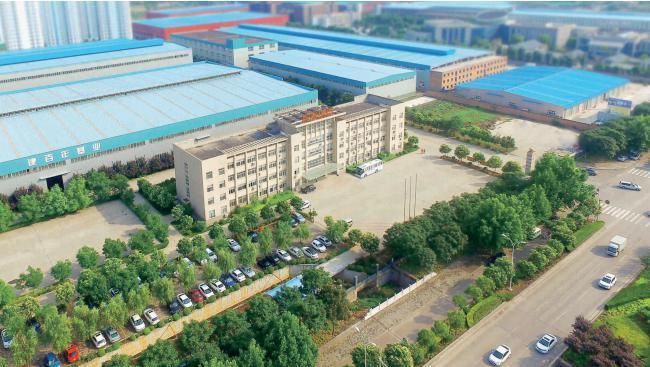

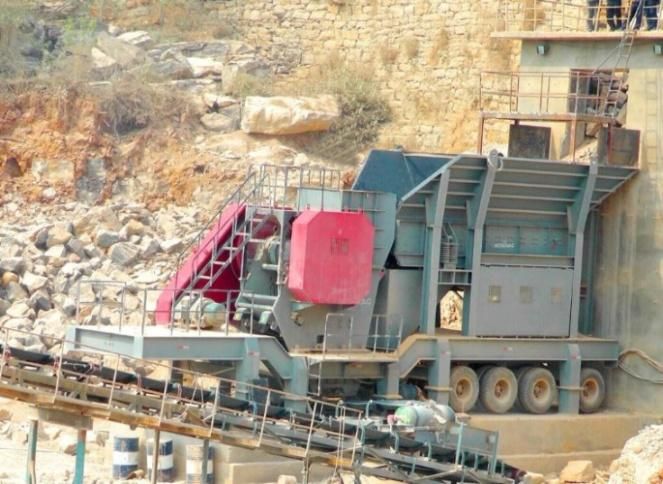

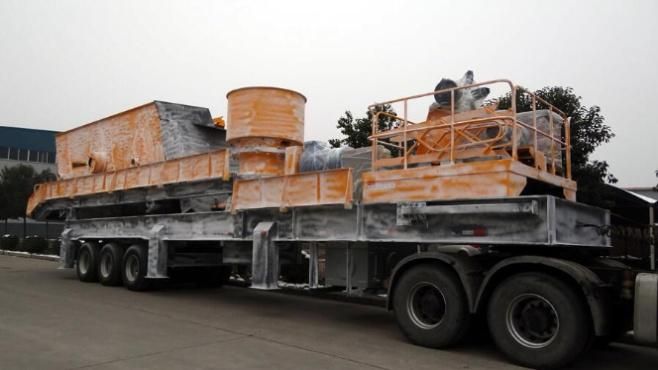

Factory pics & Application site
FAQ
1. How long is the date of delivery?30 working days after payment of earnest money or depends on order quantity.
2. How long is the guarantee period of your machine?
We guarantee quality of the machines (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidance.
3. What's the after sale service of your company?
We will send engineers to guide your workers to install the machine, take trial run; the buyer should prepare the materials and tools needed, and offer necessary assistance. The actual expenses incurred for accommodation, to and from travel for the engineer, and insurance, should be borne by the buy
