• Model NO.：SCP
• Finished Surface：Thread Process
• Certification：CE, ISO
• Condition：New
• Color：According to Customer
• Transport Package：Standard Packing or as Your Requirement
• Specification：ISO9001: 2008
• Trademark：HC
• Origin：Gongyi City, Henan Province, China
• Production Capacity：50sets,Month

Basic Info.

Model NO. SCP Finished Surface Thread Process Certification CE, ISO Condition New Color According to Customer Transport Package Standard Packing or as Your Requirement Specification ISO9001: 2008 Trademark HC Origin Gongyi City, Henan Province, China Production Capacity 50sets/Month

Product Description

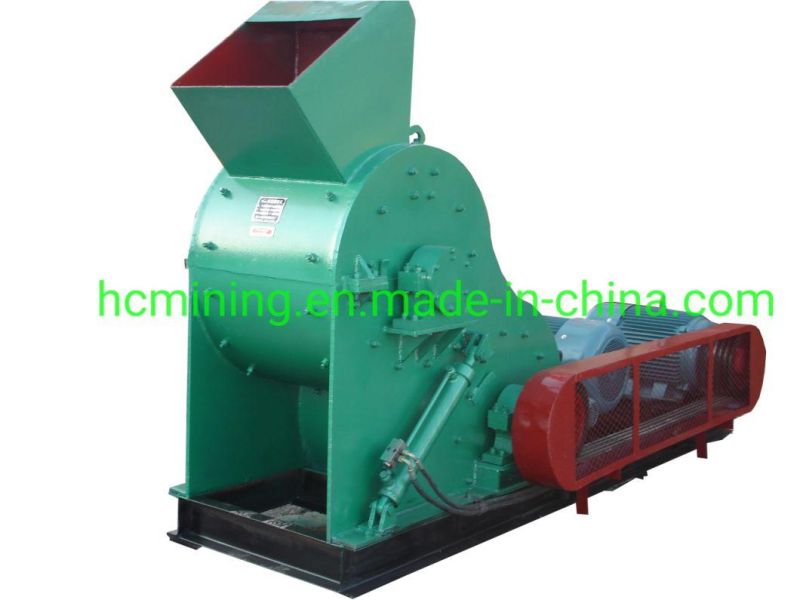

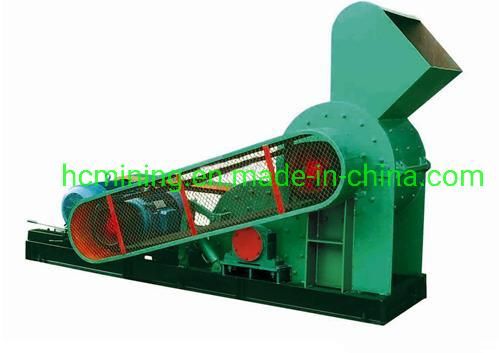

High Efficiency Double Stage Hammer Crusher
Double stage crusher applies to crash high wet coal gangue, shale, and slack etc; This machine is the combination of two hammer crusher, double rotors working in series.



Main features
1. The main features are as follows:

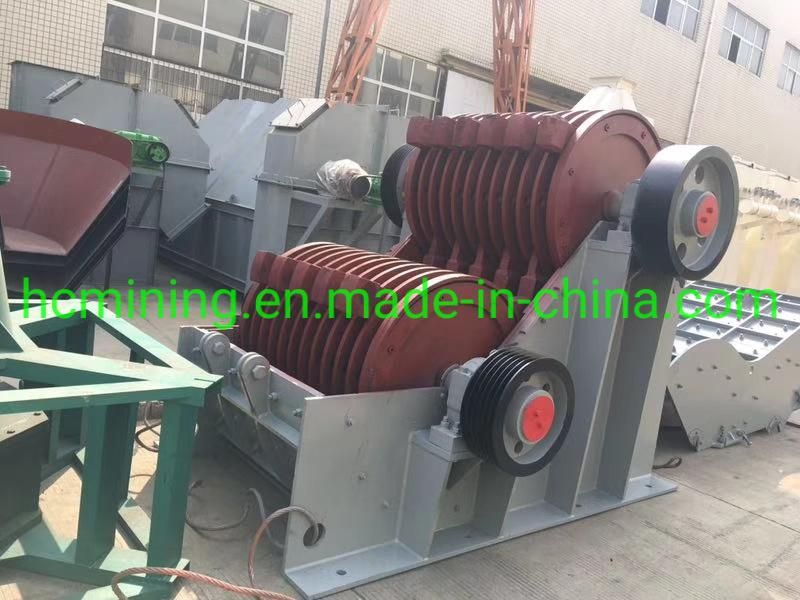

2. Double rotors and double crushing, thus make fine outlet size
3. No screen stencil in the bottom, making little jam with high wet materials
4. High alloy anti-wearing hammer, longer service life
5. Removable hammer can be used repeatedly.
6. Hydraulic starter, easy operation and convenient maintenance.


 Technical parameters

Model	SCP 600×400	SCP 600x600	SCP800×600	SCP 900×800	SCP 1000x800
Feeding Size ( mm )	≤100	≤150	≤200	≤260	≤400
Outlet Size ( mm )	≤3 (<2mm above 90%)	≤3 (<2mm above 80%)	≤3 (<2mm above 80%)	≤ 3 (<2mm above 80%)	≤3 (<2mm above 80%)
Capacity ( t/h )	15-25	15-30	50-70	50-90	60-120
Motor Power ( kw )	18.5+22	22+22	37+45	55+75	75+55
Dimensions ( L× W ×H )( mm )	2560×1020×1650	2760×1280×1750	3760×1314×2140	3870×1700×3150	4500×1700×3150
