• Model NO.：CNFX-2800
• Control：CNC
• Certification：ISO
• Use for：Linear Profiling,Balustercutting
• Blade Diameter：400-600mm
• Max Lifting Travel of Cutting Frame：250mm
• Worktable Diamension：3500X2800mm
• Main Motor：15kw X 2
• Gross Motor：36kw
• Gross Weight：7000kg
• Water Consumption：10m³,H
• Warranty：12 Months
• Specification：6000x4500x2300mm
• Trademark：XIANDA
• Origin：Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. CNFX-2800 Control CNC Certification ISO Use for Linear Profiling,Balustercutting Blade Diameter 400-600mm Max Lifting Travel of Cutting Frame 250mm Worktable Diamension 3500X2800mm Main Motor 15kw X 2 Gross Motor 36kw Gross Weight 7000kg Water Consumption 10m³/H Warranty 12 Months Specification 6000x4500x2300mm Trademark XIANDA Origin Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

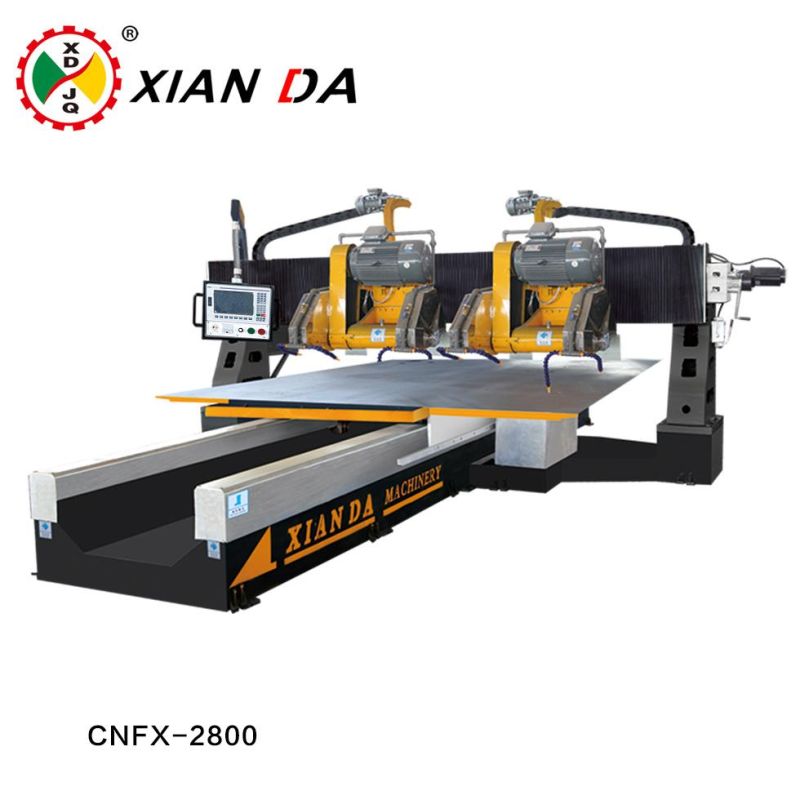

This machine adopts computer profiling lines,cutting with double saw blades,which is specially used for cutting profiling lines,roman column,big column slab and so on for the heterotype stones.It adopts gantry structure with high stability,easy operation,high efficency features etc.

Parameter	Unit	CNFX-2800	SCNFX-2800
Blade diameter	mm	φ400-φ600	φ300-φ600
Max lifting travel of cutting frame	mm	250	1000
Worktable dimension	mm	3500x2800	3500x2800
Main motor	kw	15x2	15x2
Gross motor	kw	39	39
Outline dimension	mm	6000x4500x2300	6000x4500x3300
Gross weight	kg	7000	8000
Water consumption	m³/h	10	10

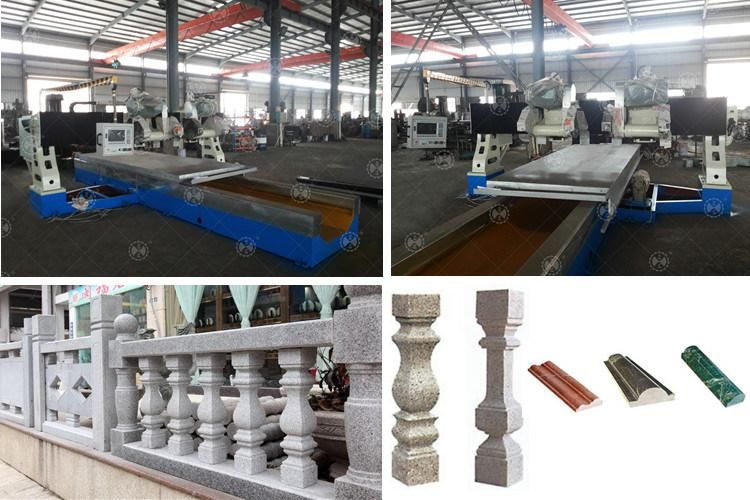

Product Show

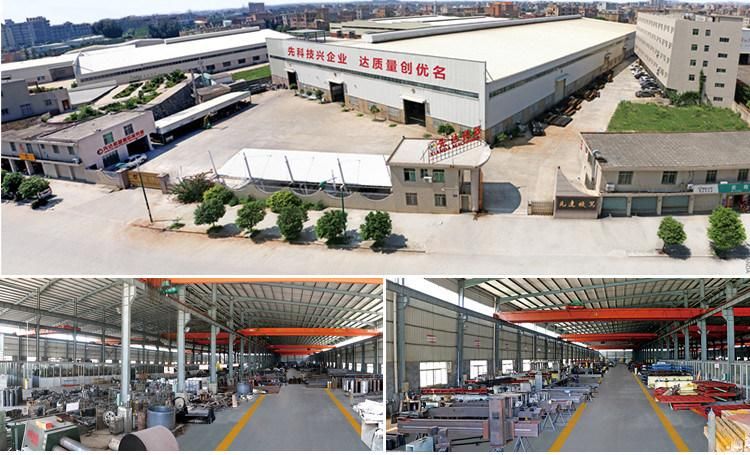

Factory Overviews



Certifications



Our Services



We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.

32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.

Top 5 stone cutting machine manufacturer with ISO&CE certificate.

Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.

We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.

After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.

We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.
