• Model NO.：PF 1010, PF1315, PF1210, PF1214
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：15-350tph

Basic Info.

Model NO. PF 1010, PF1315, PF1210, PF1214 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 15-350tph

Product Description

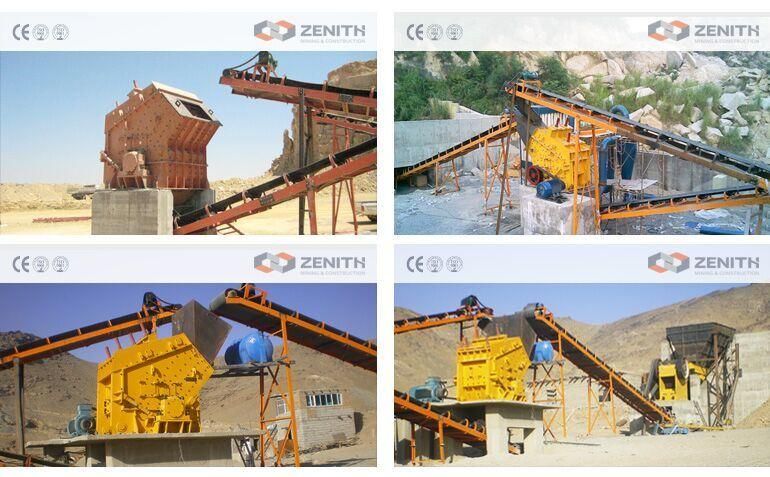

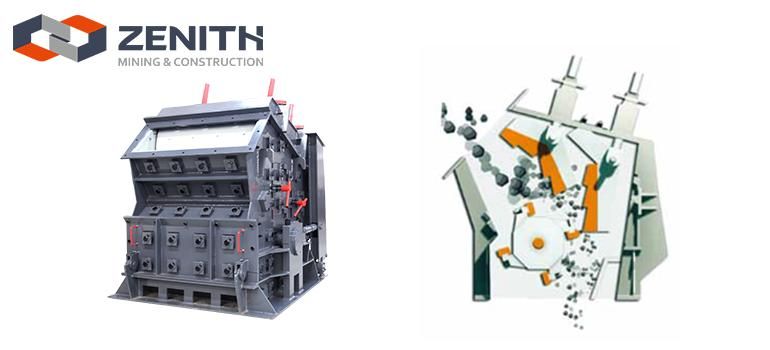

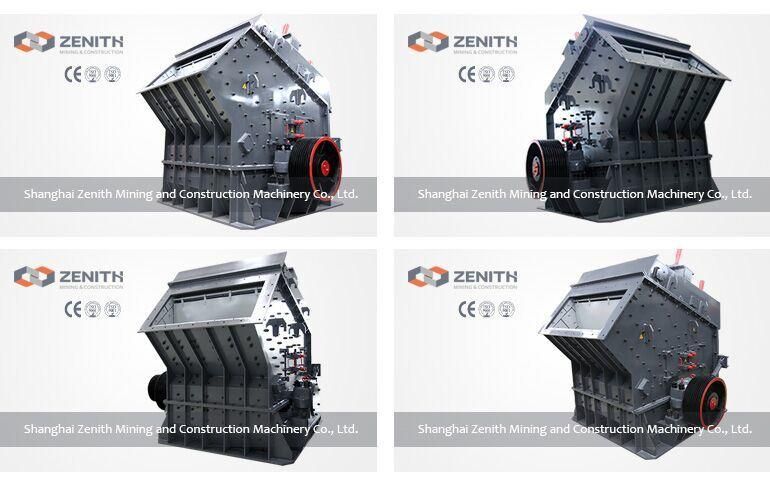

PF stone crushing equipment introduction:

This series of PF stone crushing equipment is a new type of high-efficiency crushing equipment which developed by absorbing domestic and foreign advanced technology and combining with mining conditions of domestic industry. PF stone crushing equipment is mainly applied in crushing Wolframite. The operator feeds chunks of material into the machine's hopper and it crushes them, turning the pieces into small chunks of a more uniform size. They can be run through another crusher to make them even smaller, or used as-is, depending on the setting.

PF stone crushing equipment Application:

1. PF stone crushing equipment are optimized after adopting advanced techniques.
2. PF stone crushing equipment can crush granite, basalt, bluestone, etc the diameters of which are from 100mm to 500mm, and its crushing compression strength is not more than 320MP. It features: Big reduction ratio, high crushing efficiency, and convenient maintenance. The final product is desirable device for aggregation used in highway and railway surface and water and electricity industry.

PF stone crushing equipment features:

1. Locking sleeve assembly Connection
2. Blow bar with high chrome
3. Hydraulic or hand opening
4. Special impact plate
5. Cubical shape of final product
6. Easy maintenance
7. Reliable performance

PF stone crushing equipment technical data:

Model	Spec.	Feeding Opening (mm)	Feeding Size (mm)	Capacity (t/h)	Power (kw)	Weight (t)
PF-1007	Φ 1000× 700	400× 730	≤ 250	15-60	37-55	9.5
PF-1010	Φ 1000x1050	400x1080	300	50-90	55-75	14
PF-1210	Φ 1250x1050	400x1080	300	70-130	110-132	17
PF-1214	Φ 1250x1400	400x1430	300	90-180	132-160	22
PF-1315	Φ 1320x1500	860x1520	350	120-250	180-260	26
PF-1320	Φ 1320× 2000	860× 2030	500	160-350	300-375	30
