75kw 100HP Quarry Cutting of Natural Stone and Civil Engineering Cutting of Concrete and Reinforced Concrete Electrical Drive Wire Saw Machine
Fujian Xianda Machinery Co., Ltd.- After-sales Service：One Year for Spare Part
- Warranty：12 Months
- Type：Quarry Wire Saw Machine
- Usage：Granite, Marble, Reinforced Concrete
- Application：Machinery & Hardware, Stone Industry
- Source Voltage：380V
Base Info
- Model NO.：QWS-37-75
- Automation：Automatic
- Cutting Ability：High Speed
- Control：PLC
- Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, SGS;IAF
- Main Motor：37kw;45kw;55kw;75kw
- Wire Speed：0~40m,S
- Walking Speed：0~30m,H;0-160m,H
- Adjustment Distance：450mm;500mm
- Cutting Distance：1750mm;2030mm
- Rotation Angle：360°
- Outline Dimension：2113*1361*1410mm;2336*1536*1670mm
- Max Wire Length：60m;80m;100m;120m
- Gross Weight：2t;2.1t;3t;3.2t
- Transport Package：Plastic Package, Suitable for Sea Transportation
- Specification：2113*1361*1410mm; 2336*1536*1670mm
- Trademark：XIANDA
- Origin：Fujian, China
- HS Code：8464109000
- Production Capacity：1000 Sets Per Year
Description

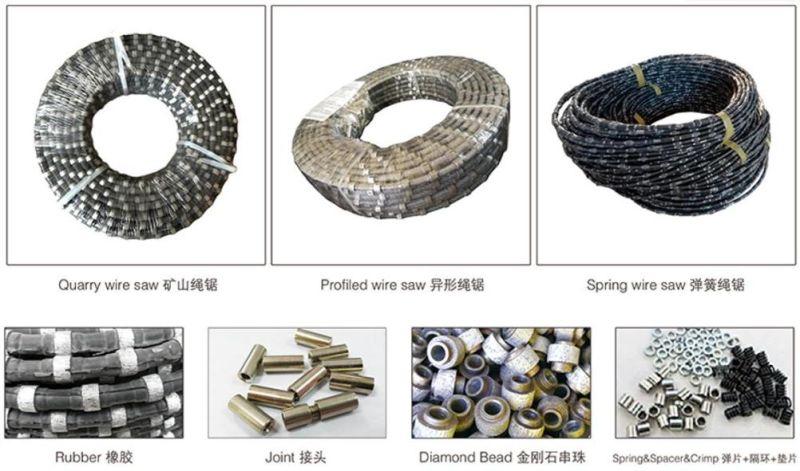

2336*1536*1670Max Wire Length m 60 80 100 120 Gross Weight t 2 2.1 3 3.2 Cutting Material Cutting Speed Wire Life (m²/m) Reinforced Concrete 2-3 2-3 Granite Quarrying 8-20 15-40 Marble Quarrying 7-20 30-60 Granite Profiling 0.8-2.5 7-15 Marble Profiling 1.5-4 30-70 Specification Application Fixing Methods Beads/Meter Φ11.5mm Reinforced Concrete Rubber 40 Φ11.5mm Granite Quarrying Rubber 40 Φ11.5mm Marble Quarrying Rubber&Spring 40 Φ11.5mm Marble Quarrying Spring 28 Φ11.0mm Granite Block Quarrying Plastic 40 Φ11.0mm Marble Block Quarrying Plastic 40 Φ8.8mm Granite Profiling Plastic 37 Φ8.8mm Marble Profiling Plastic 32
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.
Certifications
Exhibition
Our Service* We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.
Shipping
FAQ
Q: How to place order to your company?
A: 1. Inquiry-Professional quotation.
2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt.
5. Sales confirm the receipt of down payment . After approval, we will arrange the production & inform the estimated time.
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Are you Manufacture Factory?
A: Yes,that we are the stone machinery factory for over 30 years.

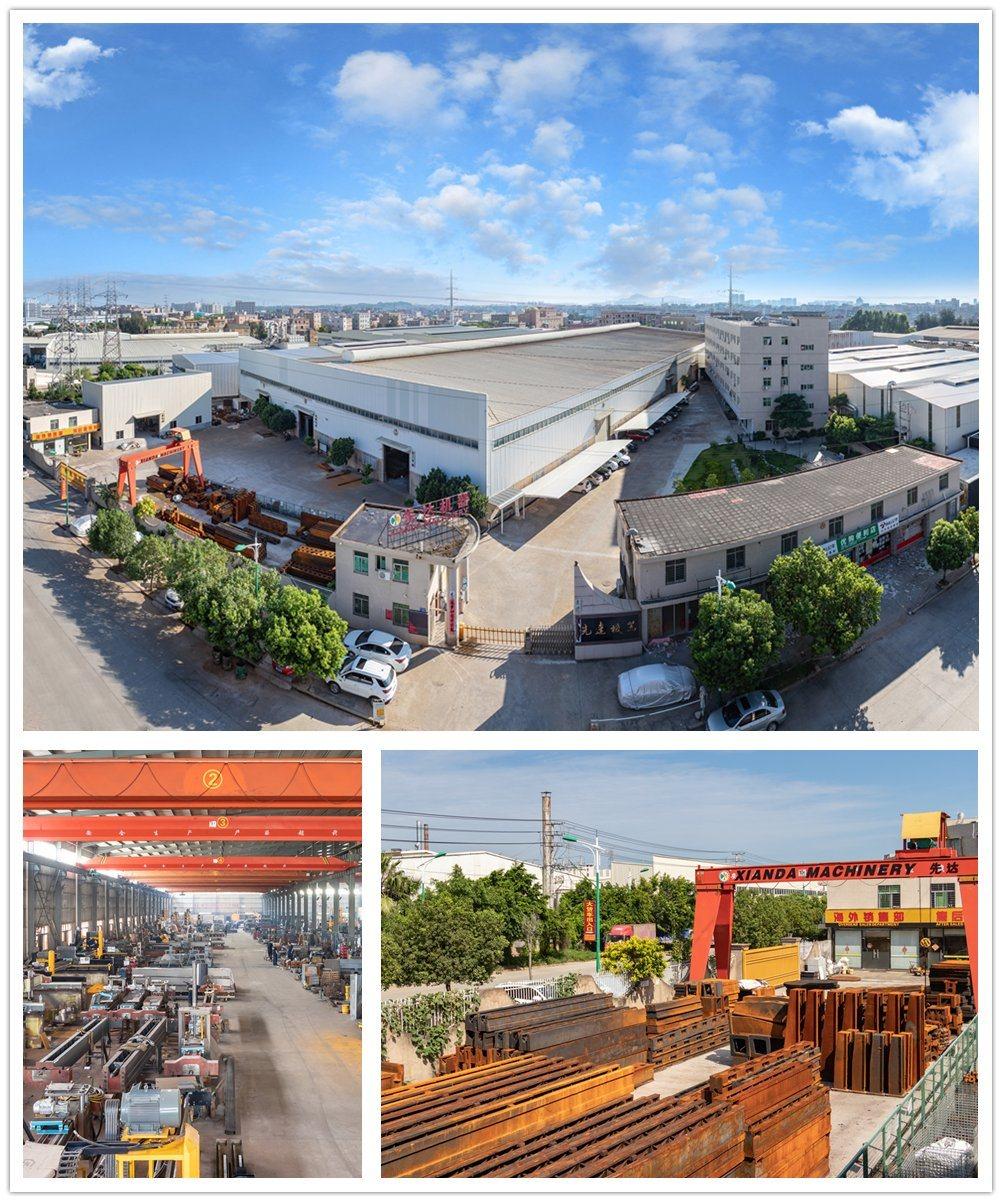

Factory Overviews
Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.
Certifications
Exhibition
Our Service
* We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.
* After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.
* We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.
ShippingFAQ
Q: How to place order to your company?
A: 1. Inquiry-Professional quotation.
2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt.
5. Sales confirm the receipt of down payment . After approval, we will arrange the production & inform the estimated time.
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Are you Manufacture Factory?
A: Yes,that we are the stone machinery factory for over 30 years.
