• Model NO.：APM350-2000
• Control：PLC
• Certification：API, ISO, CE
• Gross Motor：27.5kw
• Water Consumption：6m3,H
• Gross Weight：5000kgs
• Processing Diameter：350-2000
• Processign Length：1300mm
• Key Word：Polishing Machine
• Transport Package：Plastic Package
• Specification：5150*6300*2100
• Trademark：Xianda
• Origin：Fujian, China (Mainland)
• HS Code：84641080
• Production Capacity：1000set Per Year

Basic Info.

Model NO. APM350-2000 Control PLC Certification API, ISO, CE Gross Motor 27.5kw Water Consumption 6m3/H Gross Weight 5000kgs Processing Diameter 350-2000 Processign Length 1300mm Key Word Polishing Machine Transport Package Plastic Package Specification 5150*6300*2100 Trademark Xianda Origin Fujian, China (Mainland) HS Code 84641080 Production Capacity 1000set Per Year

Product Description

Description:

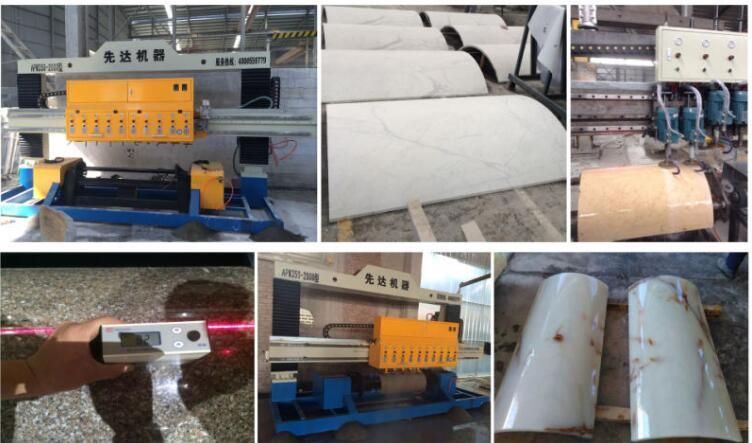

APM-350-2000 XIANDA STONE POLISHING MACHINE ,Arc Slab Polishing Machine fix the arc slab by vacuum sucker, replaced conventional clamping fixing on both sides, solved the deviation of the squareness and inclination which were generated by  the steps trimming-grinding, at the meanwhile, clear the customer's concerns about arc slab edge&angle damage. Machine adopt linear guides, multi grinding head and PLC system. it has a high-precision, high efficiency, easy operation and others, it is the ideal equipment for arc slab polishing.



Technical Parameter

Parameter	Unit	APM-350-2000-10	APM-350-2000-12
Processing diameter	mm	350-2000	350-2000
Processing length	mm	1300	1300
Grinding number	piece	10	12
Gross motor	kw	27.5	32
Efficiency	min/M2	≈7	≈8
Outline dimension	mm	5200*1700*2900	5800*1700*2900
Water consumption	m³/h	6	7
Gross weight	kg	5000	6000

Xianda machinery

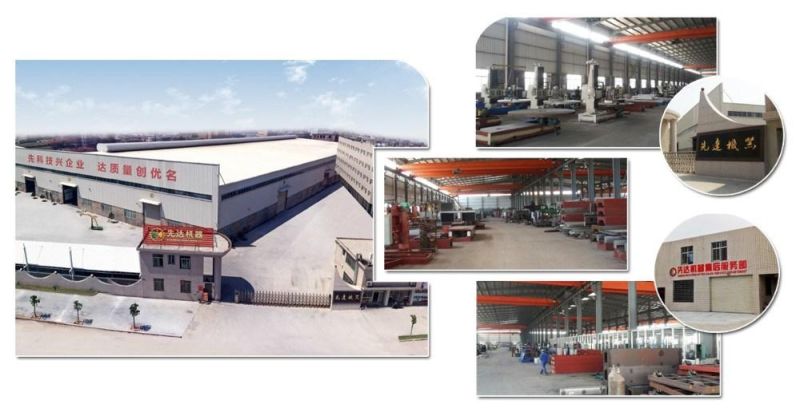

Fujian Jinjiang Xianda Machinery Co. Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition

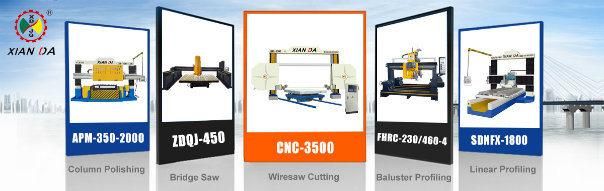

Other stone cutting machines we produce:
1) Diamond wire saw machine,
2) Bridge cutting machine, bridge saw
3) a series of stone machine for special shape processing.

FAQ

1. Manufacturer Profiles

We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.

We are a company which is specially for producing stone machines for exporting.

2. Quality Control

We have our own experienced QC.
Our machine will be strictly inspected.
We will provide a Testing Video for each machines before shipping out if required by customer.

3. Delivery time

Based on order quantity, normally three weeks against payment.

4. Warranty

All the machines have one year warranty.

5. After Services

Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.
