Bridge Type Marble Cutting Machine Stone Cutting Machine for Slab Tile Cutting (HQ400-600-700)
Xiamen Aga Import and Export Co., Ltd.- Type：CNC Cutting Machine
- Usage：Granite, Marble
- Application：Machinery & Hardware, Construction, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：HQ400-600-700
- Control：CNC
- Certification：ISO, CE
- Blade Size：300-700mm
- Blade Tilting：0-45 Degrees
- Table Size：3200*2000mm
- Table Tilting：0-85 Degrees
- Table Rotating：0-360 Degrees
- Max. Cut Size：3200*2000*230mm
- Spindle Motor：18.5kw 25HP
- Total Power：26.5kw
- Overal Size：6*5.7*3.5m
- Weight：7500kg
- Transport Package：Plastic Packing
- Specification：6*5.7*3.5m
- Trademark：AGA
- Origin：Xiamen, China
- HS Code：84641010
- Production Capacity：200 Sets,Month
Description
Marble stone cutting machine introduction:

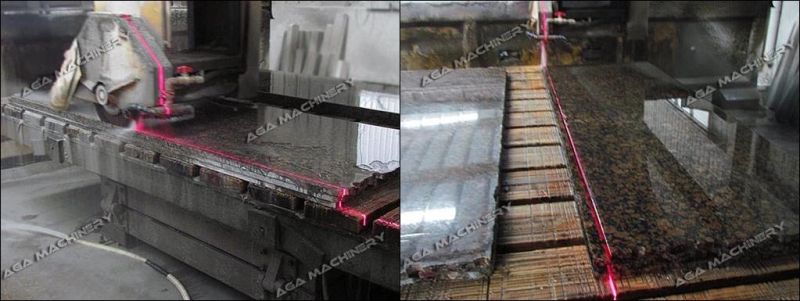

Main structure of this marble stone cutting machine is made of strong cast iron and stainless steel for protection.This cutting machine is laser guide for precision cutting everytime in +/-0.2mm.

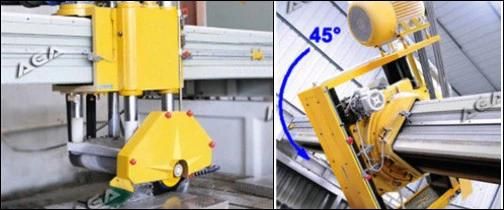

The machine blade goes left and right, up and down, the bridge beam moves forward and backward. Four pistons head provides stable cutting. Blade tilting 45 degrees for miter cuts is optional for model HQ700.
The functional table of this cutting machine tilts 0-85 degrees for easy load of stone materials. Besides, it can rotate 0-90 degrees to change the cutting position automatically. Also, table rotating 0-360 degrees is also optional.

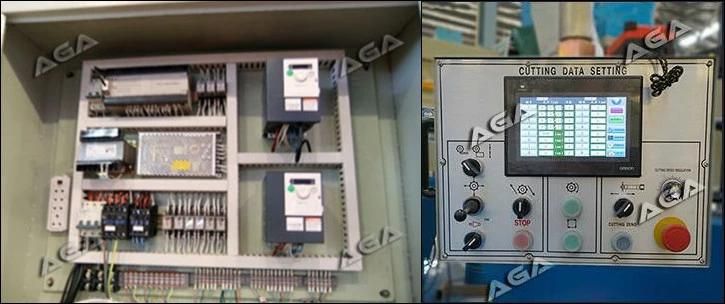

This marble stone cutting machine is microcomputer control and works automatically by program, color touch screen panel makes simple oepration.
FAQ:1) Payment:
T/T 30% deposit, 70% before shipment.
2) Delivery time:
The bridge saw can be shipped immediately when machine in stock; 4-5 weeks ready for shipment when machine not in stock. Time for ocean shipping depends on where you are located.
3) Shipment:
For FOB or CIF price, we will arrange shipment for you.
4) Documents after shipment:
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

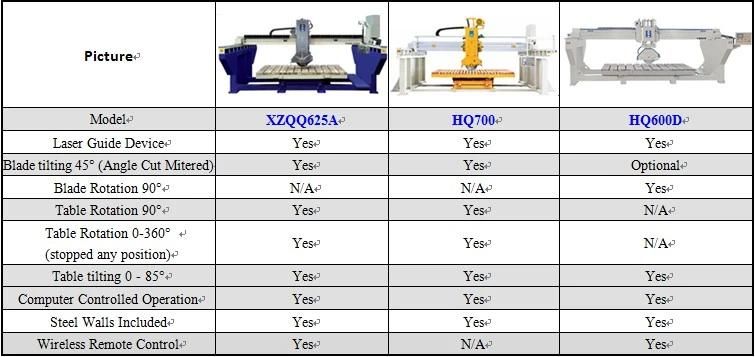

Other cutting machines for option:
Key words:
Stone cutting mahcine, granite cutting machine, bridge cutter machine, bridge cutting machine, marble cutting machine, bridge sawing machine, slab cutting machine, slab sizing machine, tile cutter, bridge cutter, cnc cutting machine, cnc machine, 5 axis cutting machine, china cnc machine, etc.
