• Model NO.：pc model
• Finished Surface：Thread Process
• Condition：New
• Color：Customized
• Installation：Under The Guidance of Engineer
• Usage：Ore, Rock, Stone, etc.
• Warrenty：1year
• After-Sale Service：Training, Technical Support, etc.
• Port：Qingdao, Shanghai, Dalian
• Delivery Time：7-15 Working Days
• Price Advantage：Own Factory Can Offer Best Price
• Transport Package：International Packing Standard
• Specification：ISO, CE, SGS
• Trademark：TYM
• Origin：Henan, China
• HS Code：8474201000
• Production Capacity：60sets,Month

Basic Info.

Model NO. pc model Finished Surface Thread Process Condition New Color Customized Installation Under The Guidance of Engineer Usage Ore, Rock, Stone, etc. Warrenty 1year After-Sale Service Training, Technical Support, etc. Port Qingdao, Shanghai, Dalian Delivery Time 7-15 Working Days Price Advantage Own Factory Can Offer Best Price Transport Package International Packing Standard Specification ISO, CE, SGS Trademark TYM Origin Henan, China HS Code 8474201000 Production Capacity 60sets/Month

Product Description

Product introduction

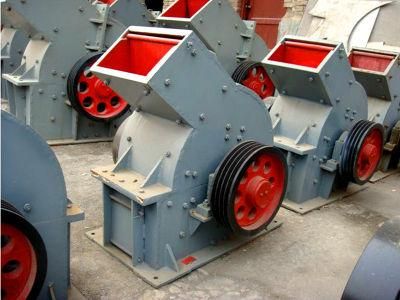

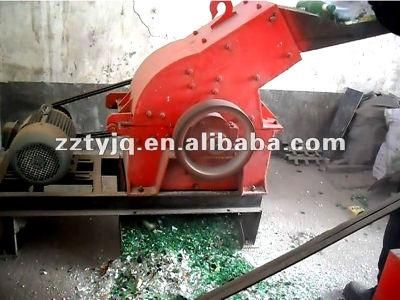

The hammer crusher (hammer mill) crushes by the collisions between high-speed hammer and material, and the hammer crusher features are in its simple structure, high reduction ration, high efficiency, etc. The PC hammer crusher were developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries.
Working principle
The motor drives the rotor rotate of the hammer crusher at a high speed through the belt, and on the rotor there are series hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size.



Model	Capacity (t/h)	Max Feed Size (mm)	Discharge Size (mm)	Motor Power (kw)	Weight(t)
PC400×300	5-10	≤100	≤10	11	800
PC600×400	10-25	≤120	≤15	18.5	1500
PC800×600	20-35	≤120	≤15	55	3100
PC1000×800	20-40	≤200	≤13	115	7900
PC1000×1000	30-80	≤200	≤15	132	8650
PC1300×1200	80-200	≤250	≤19	240	13600
