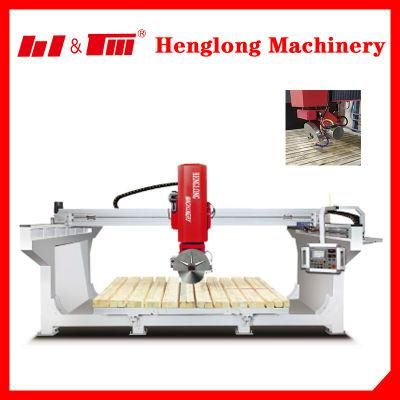

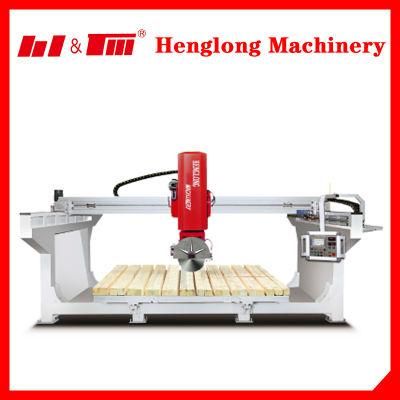

Machinery & Hardware Automatic Tile Cutter 3 Axis Stone Machine
FUJIAN NAN'AN HENGLONG MACHINERY CO.,LTD.- After-sales Service：Provide
- Warranty：1 Year
- Type：CNC Cutting Machine

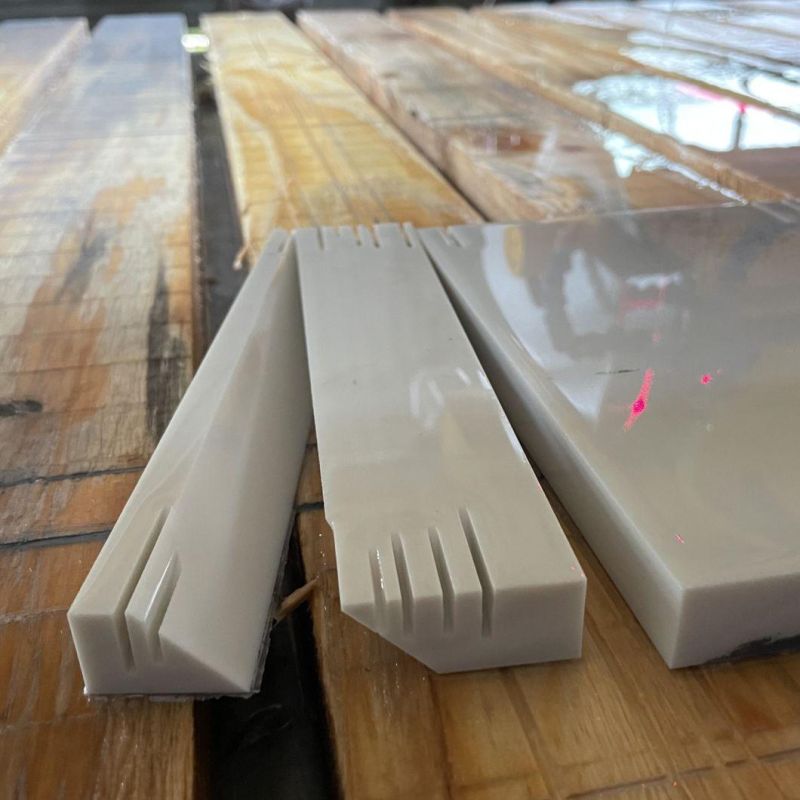

- Usage：Ceramics, Cement Brick, Concrete Curb, Granite, Marble
- Application：Machinery & Hardware, Stone Industry
- Source Voltage：380V
Base Info
- Model NO.：HLYT-400
- Automation：Automatic
- Cutting Ability：High Speed

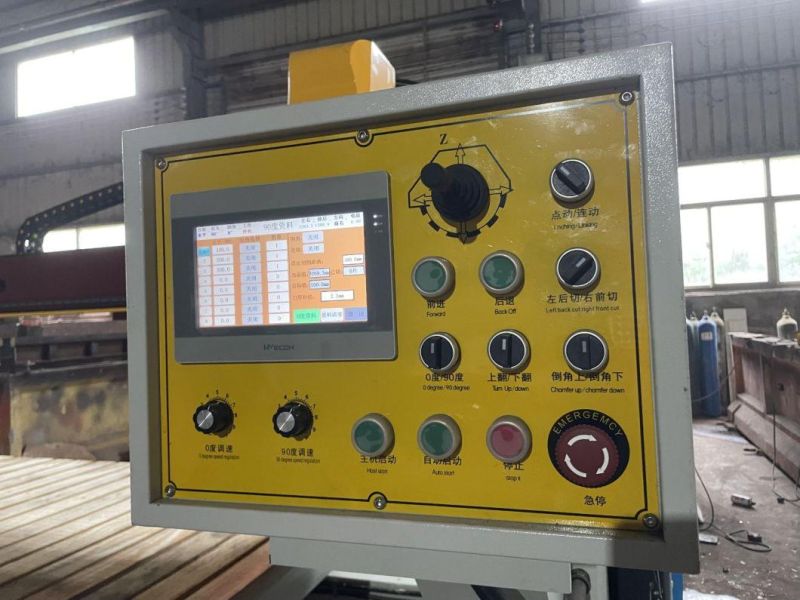

- Control：CNC
- Certification：SONCAP, ISO, CE
- Transport Package：Standard
- Specification：5100x2800x2600mm
- Trademark：Henglong
- Origin：Fujian, China
- HS Code：8464109000
- Production Capacity：20sets ,Month
Description

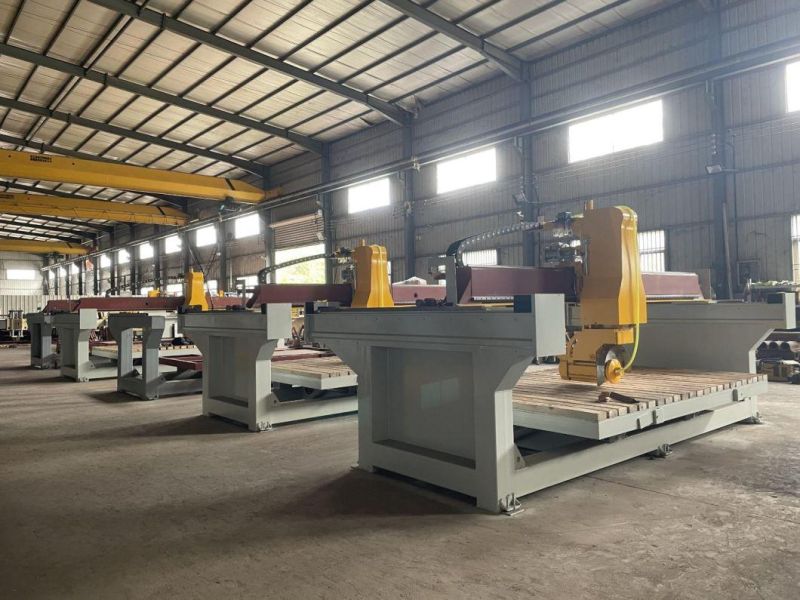

Machine details

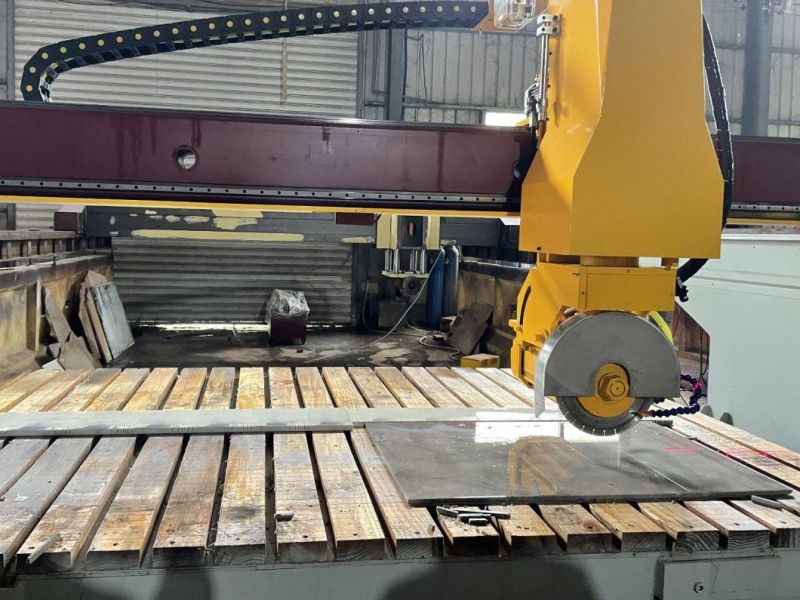

| Max blade diameter | Φ400 MM |
| Working table size(L*W) | 3200*2000 MM |
| Max. working dimension(L*W*H) | 3200*2000*80MM |
| Working table tilting degree | 85° |

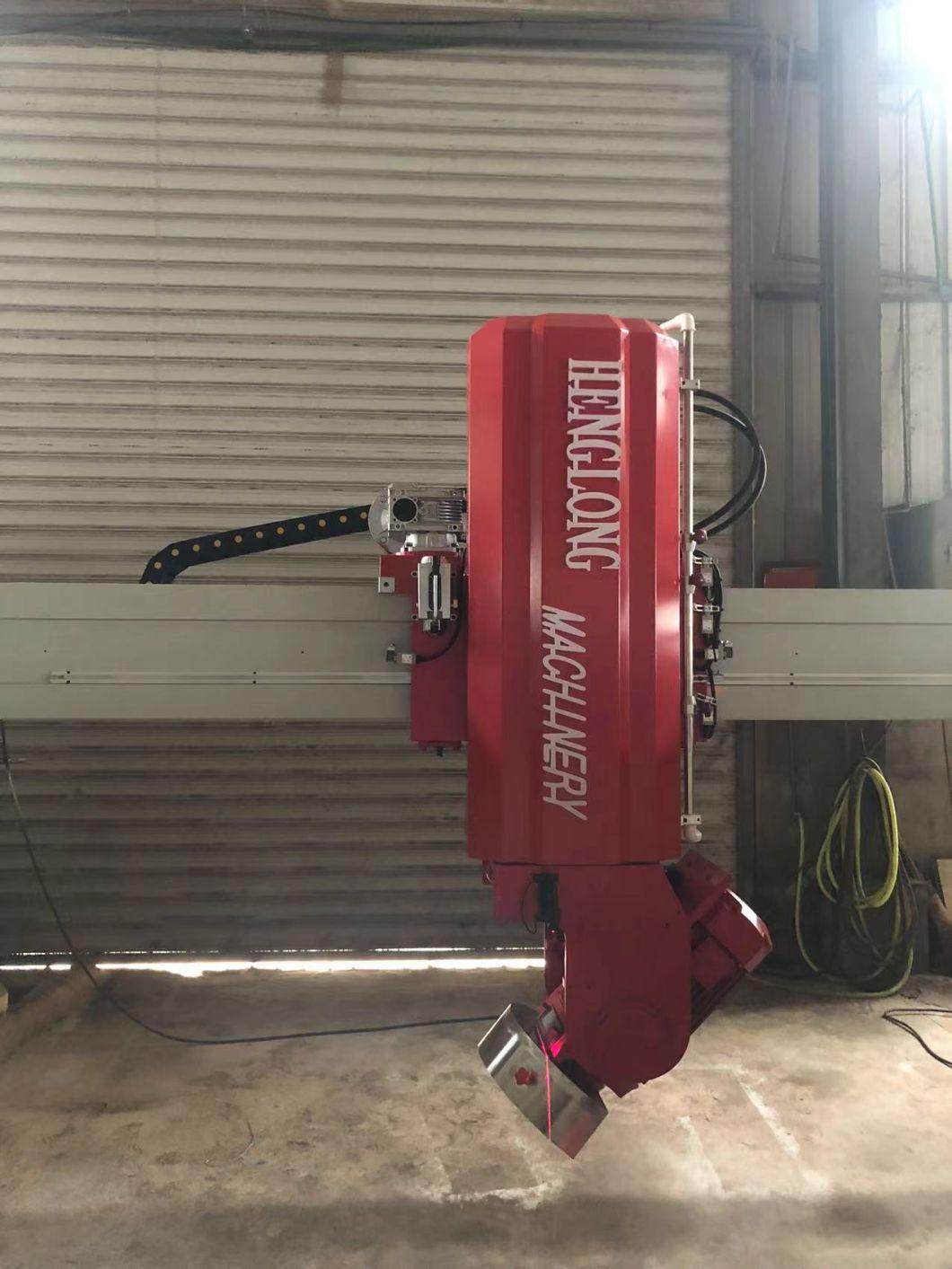

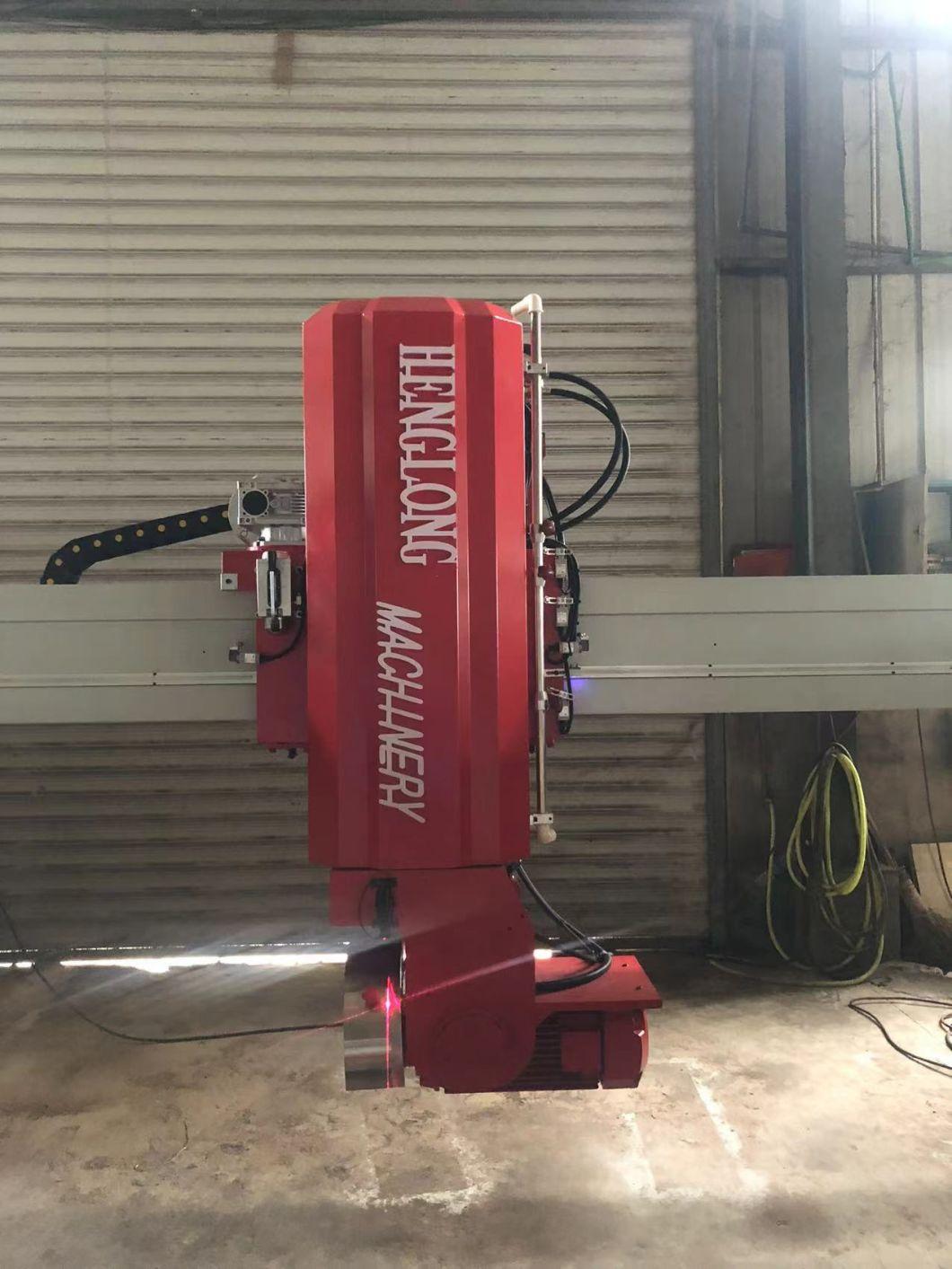

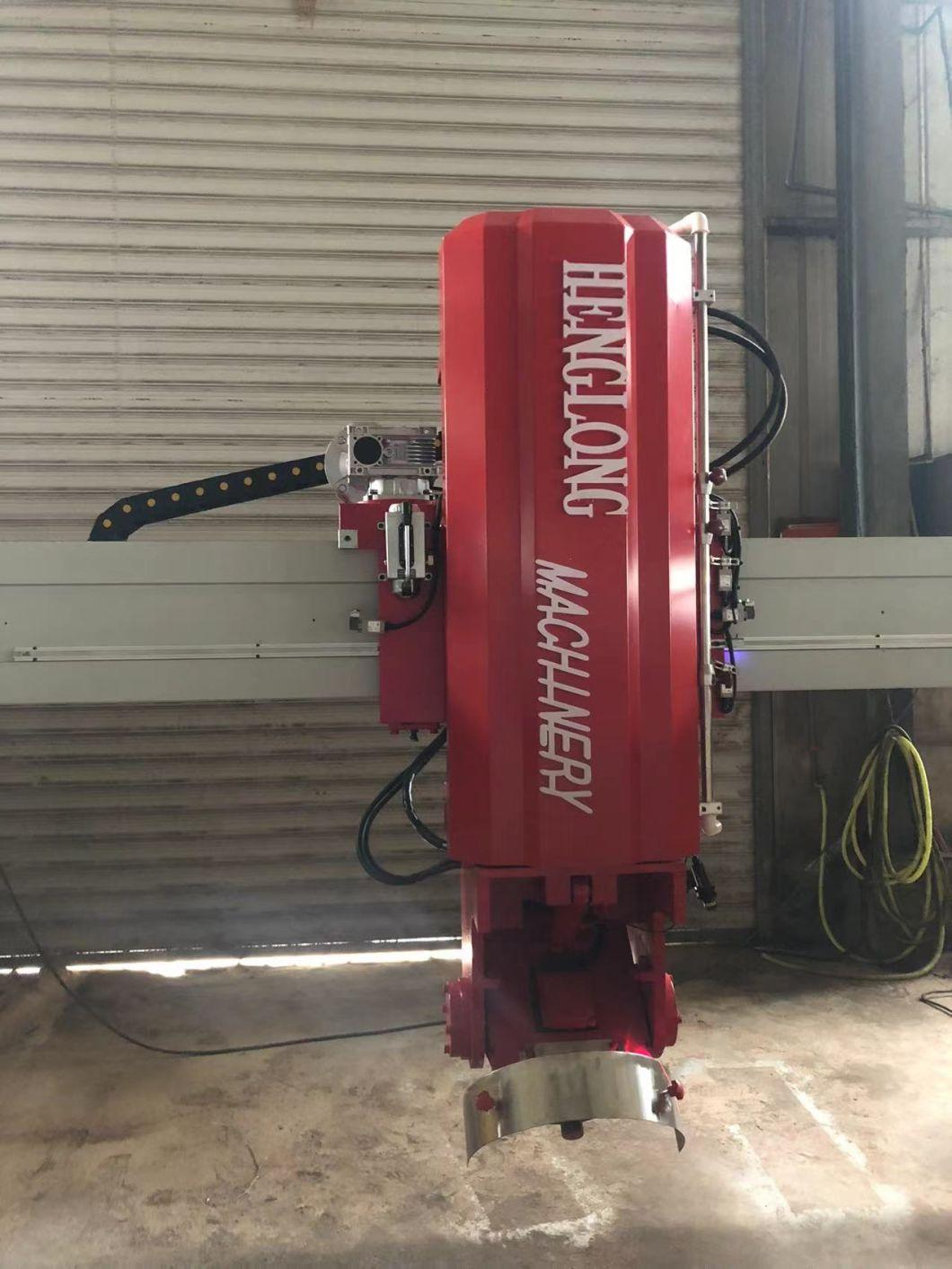

| Cutting head tilting degree | 45° |
| Cutting head rotating degree | 0°-90° |
| Main motor power | 11 KW |
| Water consumption | 4 m³/h |
| Weight | 3500 KG |
| Dimension(L*W*H) | 5100*2800*2600 MM |

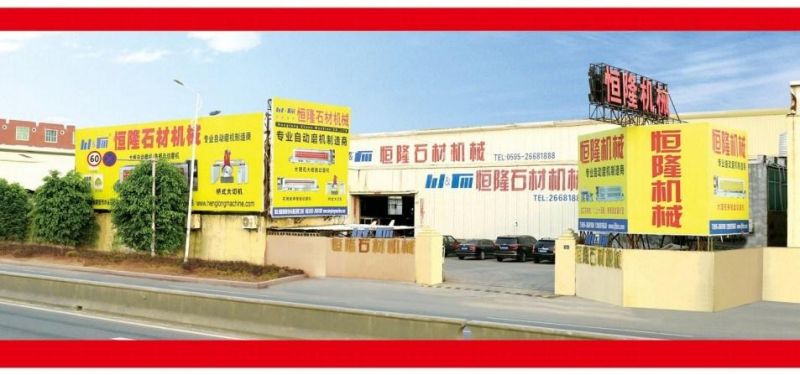

Fujian Henglong Machinery Co., Ltd. was founded in 2003, the company is located in "China Stone City" Shuitou Town, Nan'an City, is an international enterprise specializing in the manufacture of stone machinery and equipment, integrating R&D, production and sales. It is one of the star enterprises in the field of stone equipment manufacturing in China.
In order to provide customers with higher performance and high added value products, Henglong has gathered a large number of Representing industry-leading engineers and skilled production teams. They are skilled and determined to make progress and research and development. The main products are HL&TM brand automatic granite polishing machine,Automatic marble polishing machine, gang saw and bridge cutting machine. , multi-head calibrating machine, automatic waxing machine, automatic bush hammering machine and other stone processing equipment, and provide quality solutions. Henglong has passed the national quality system certification and the stone machinery industry standard certification. The products are exported to United States, Mexico, India, Egypt, Turkey, Vietnam, Thailand and other countries and regions, and established multi-dimensional sales at home and abroad. Channels and technical service systems are improving day by day.
