• Model NO.：BL1010 BL1015 BL1020 BL1515 BL2015 BL2020 BL3030
• Stock：Have Enough Stock
• Size：Various Size Available
• Type：Italian Model EV Series
• Pushing Power：20 to 200 Tons
• Transport Package：Plywood
• Specification：CE and SGS
• Trademark：BESTLINK
• Origin：Xiamen Fujian
• HS Code：39269090
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. BL1010 BL1015 BL1020 BL1515 BL2015 BL2020 BL3030 Stock Have Enough Stock Size Various Size Available Type Italian Model EV Series Pushing Power 20 to 200 Tons Transport Package Plywood Specification CE and SGS Trademark BESTLINK Origin Xiamen Fujian HS Code 39269090 Production Capacity 1000PCS/Month

Product Description

Bestlink High Pressure Safety Air Pushing Bag for Marble Granite Mine

Factory locaced at Xiamen. Air Bag is manufactured with High-tech materials and processed by special techniques, no frequent problem in split and damage. It performs primely and is suitable for blocks splitting after wire saw cutting in quarrying.

a.Splitting and overturning pushing air bag operational procedure

1. To avoid damages to the pushing air bag at deployment, start by carefully clearing the edges of the stone block of possible debris;

2. Consult the thrust table to determine the types and number of pushing air bag required to spread an opening 15cm between the
Sawed block and the quarry;

3. Fasten one end of two pull back ropes to the rings at the upper edge the bag and tie the other ends to fixed point;

4. Link the air supply through pressure gauge tube to the bag;

5. Begin the inflating operation by opening the ball valve connected to the bag;

6. Continue inflating until obtaining opening of 10-15cm opening, place appropriate metal wedges under the stone block;

7. Overlap the bags until overtuning block;

8. Shut off the air input valve of each bag, disconnected the hoses from the bag, after the deflation is completed, pull out the bags.

b.Technical Data

Model	Specification	Theoretical pushing capacity	weight(kg)
BL1010	1.0m×1.0m	50tons	4.5
BL1015	1.0m×1.5m	75tons	6.8
BL1020	1.0m×2.0m	100tons	9.0
BL1515	1.5m×1.5m	115tons	10.2
BL2015	2.0m×1.5m	150tons	13.5
BL2020	2.0m×2.0m	200tons	18.0
BL3030	3.0m×3.0m	450tons	40.5
Control platfrom for above air bag		air pressue 0-6bar,3 outlet	30.0

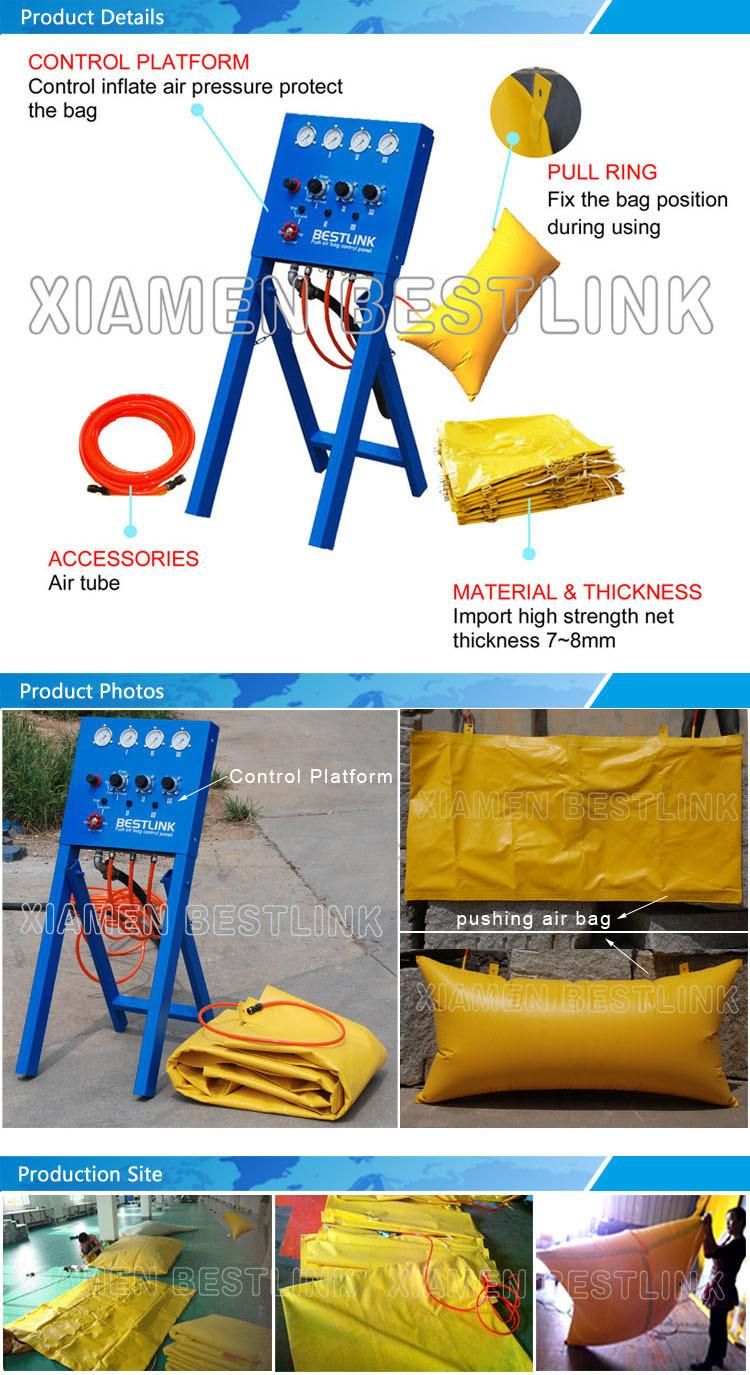

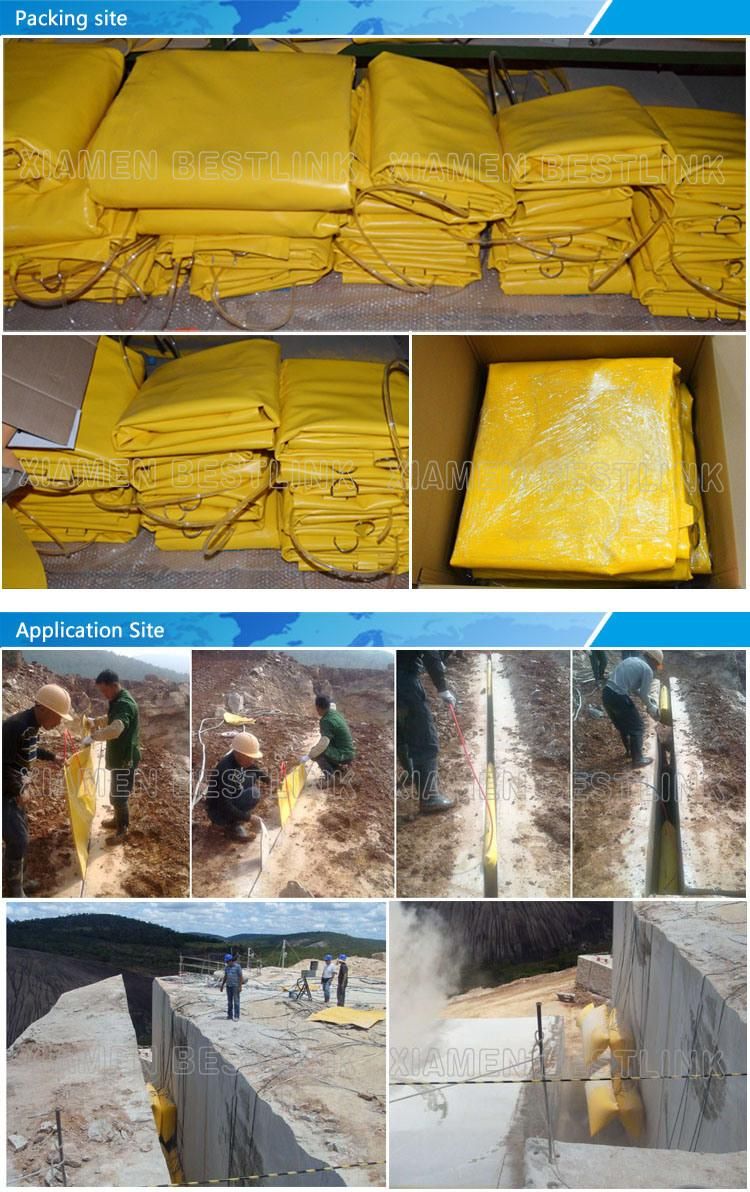

  c.product pictures
