• Model NO.：PEW250x1200, PEW400x600, PEW760, PEW860
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Standard Container
• Specification：ISO9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：50-850tph

Basic Info.

Model NO. PEW250x1200, PEW400x600, PEW760, PEW860 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Standard Container Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 50-850tph

Product Description

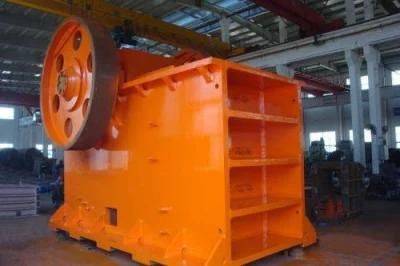

Zenith PEW860 Gravel Crushing Equipment with ISO&CE

1.  The best crusher for breaking stone.
2.  CE, ISO9001
3.  Stone Crusher Form 8-100t/h.
4.  Stable performance, long lifecycle of spare parts
5.  Testing Gravel Crushing Equipment before delivery is available

Gravel Crushing Equipment advantages:

1. V-shaped structure crushing cavity is able to meet a big feeding.
2. Movable jaw assembly adopts a high-quality steel casting and heavy eccentric shaft has also adopted forging billet for processing.
3. Use of finite element analysis technology helps to reach both light weight and high reliability.
4. Equipped with wedge adjustment devices, enable to realize automatic control and stepless adjustment.


Gravel Crushing Equipment structure:

It is made up of frame, eccentric shaft, grooved wheel, flywheel, moving jaw, side guard plate, toggle plate, toggle backseat, adjusting screw, returning spring, fixed jaw plate and moving jaw plate. Toggle plate is of safety function.

Gravel Crushing Equipment application:

PEW Gravel Crushing Equipment is widely used in mining, metallurgy, construction, hydropower and chemical industries etc. To materials, it can be used to crush many kinds of stones, such as the basalt quartz, granite, limestone and sand gravel, etc. Also include the ore materials such as gold ore, manganese ore, iron ore, bauxite, copper ore and coal, etc. At the same time, PEW Gravel Crushing Equipment are also applicable for recycling construction waste, slags.

Gravel Crushing Equipment technical data:

Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PEW250×1000	250×1000	220	20-40	330	6-37	Y250M-6/37	1400×1850×1310
PEW250×1200	250×1200	220	20-40	330	6-37	Y250M-6/37	1400×2050×1310
PEW400×600	400×600	350	35-85	250	6-37	Y250M-6/37	1920×1460×1840
PEW760	760×1100	620	75-200	270	6-110	Y315L1-6/110	2600×2500×2200
PEW860	860×1100	720	100-225	240	6-132	Y315L2-6/132	3300×2320×3120
PEW1100	1100×1200	930	150-275	210	8-185	Y355L1-8/185	4140×2660×3560
