• Model NO.：DRC-250,500-2 CRC-250,500-2
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE, SGS
• Blade Diameter：500mm
• Max Processing Diameter：250,2PCS
• Processing Length：100-2500mm
• Main Motor：11kw
• Gross Power：16.5kw
• Outline Dimension：4100*1450*3100
• Gross Weight：3800kg
• Water Consumption：3m3,H
• Advantage：Multi Function with Good Quality and Price
• Key Words：Stone Machine
• Warranty Time：One Year
• Transport Package：Plastic Package, Suitable for Sea Transportation
• Specification：4100*1450*3100mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. DRC-250/500-2 CRC-250/500-2 Automation Automatic Cutting Ability High Speed Control CNC Certification API, CCC, UL, SONCAP, GOST, ISO, CE, SGS Blade Diameter 500mm Max Processing Diameter 250/2PCS Processing Length 100-2500mm Main Motor 11kw Gross Power 16.5kw Outline Dimension 4100*1450*3100 Gross Weight 3800kg Water Consumption 3m3/H Advantage Multi Function with Good Quality and Price Key Words Stone Machine Warranty Time One Year Transport Package Plastic Package, Suitable for Sea Transportation Specification 4100*1450*3100mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

Xianda Stone Cutting Machine Two PCS Baluster Cutting Machine
DRC-250/500-2 CRC-250/500-2




Product Description

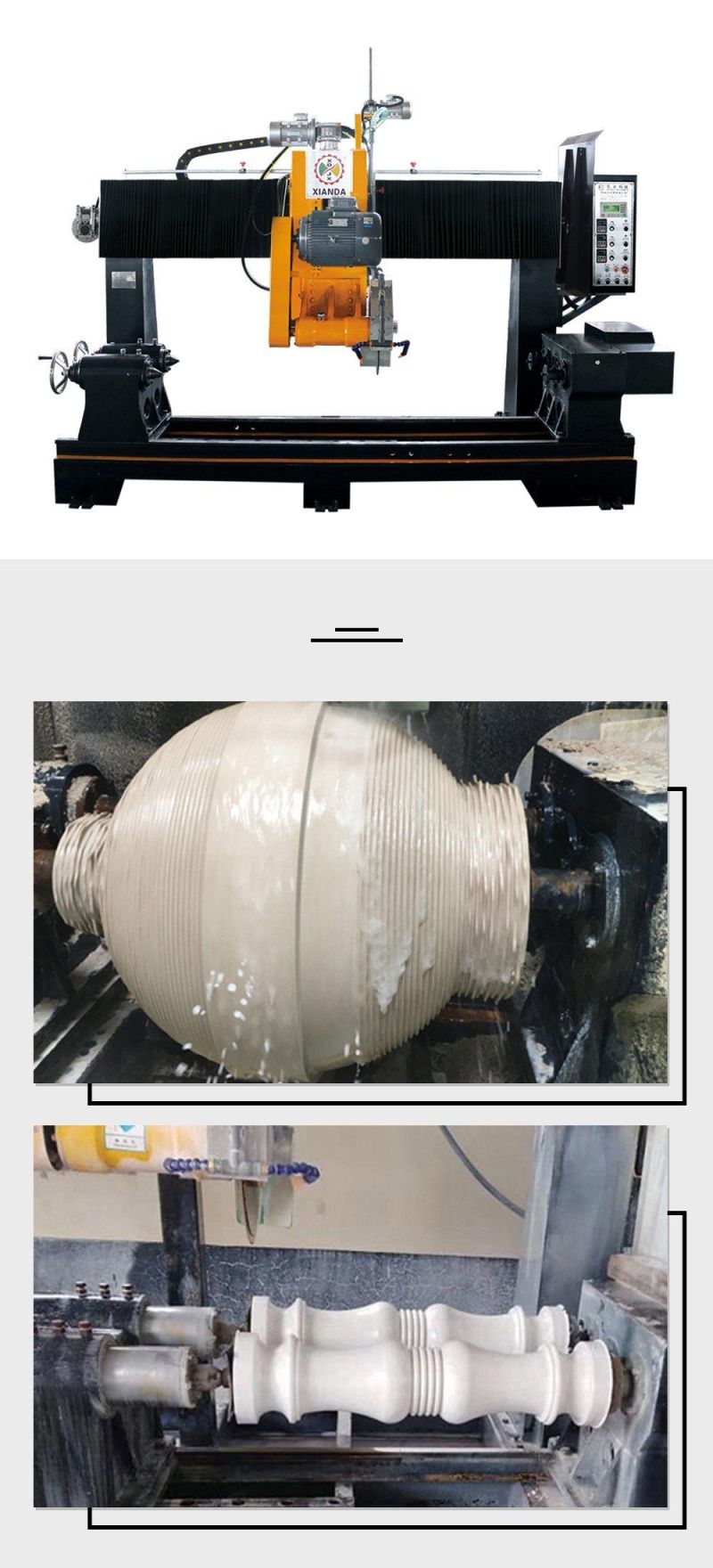

DRC-230/460-2 Stone baluster Cutting Machine Granite / Marble Profile Machine,This machine adopt gantry machine design, microprocessor control and fiber optic probe. It can process all kind of solid stone of revolution,such as baluster, pellet, stylobate,cap and column and so on. It have already overcame the defects of manual process. This machine is automatic, after adjust the size of all direction, one worker can operate many machines. Processing length can be adjusted according to customer demand.

Technical Parameter


Parameter	Unit	DRC-230/460-2 CRC-250/500-2
Blade diameter	mm	φ500
Max processing diameter	mm	φ230/2pcs;φ460/1pcs
Cutting length	mm	100-2500
Main motor	kw	11
Gross motor	kw	16.5
Outline dimension	mm	4100*1450*3100
Gross weight	kg	3800
Water consumption	m³/h	3

Xianda Machinery

Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.




Exhibition


Our products


Certification



Our Service

We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.


32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.

Top 5 stone cutting machine manufacturer with ISO&CE certificate.

Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.

We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.

After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.

We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.  Manufacturer Profiles
We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.
We are a company which is specially for producing stone machines for exporting.

Quality Control

We have our own experienced QC.
Our machine will be strictly inspected.
We will provide a Testing Video for each machines before shipping out if required by customer.

Delivery time

Based on order quantity, normally three weeks against payment.

Warranty

All the machines have one year warranty.

After Services

Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.

FAQ

Q:How to place order to your company?
A: 1.Inquiry-Professional quotation
    2.Confirm the price,lead time, logo, payment term etc.
    3.Xianda sales send the Proforma Invoice with seal.
    4.Customers make the payment as a deposit and send us Bank receipt
    5.Sales confirm the receipt of down payment After approval, we will arrange the production & inform the    estimated time

Q:How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery

Q:Are you Manufacture Factory?
A: Yes that we are the stone machinery factory for over 30 years

Q:What about the warranty time of the machine?
A:We provide one year for parts warranty service

Q:What can this machine be used to?
A:This machine is designed to cut lines on stone like columns lines ,big arc shaped slabs and special stone shapes.
