• Model NO.：MC-15 Thin Veneer Splitter
• Source Voltage：by Air
• Automation：Manual
• Cutting Ability：Medium Speed
• Control：Manual
• Certification：ISO
• Transport Package：Naked
• Specification：750mm-1200mm
• Trademark：BESTLINK
• Origin：China
• HS Code：84791090
• Production Capacity：200sets Per Month

Basic Info.

Model NO. MC-15 Thin Veneer Splitter Source Voltage by Air Automation Manual Cutting Ability Medium Speed Control Manual Certification ISO Transport Package Naked Specification 750mm-1200mm Trademark BESTLINK Origin China HS Code 84791090 Production Capacity 200sets Per Month

Product Description

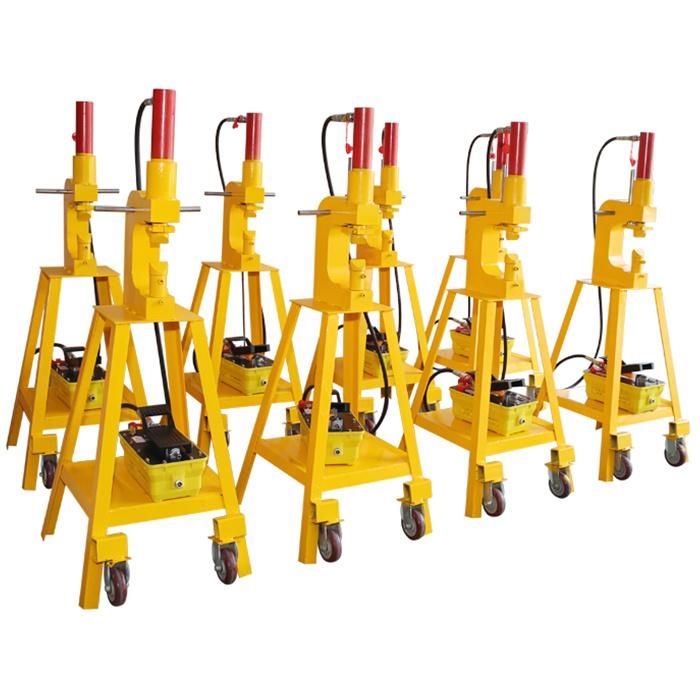

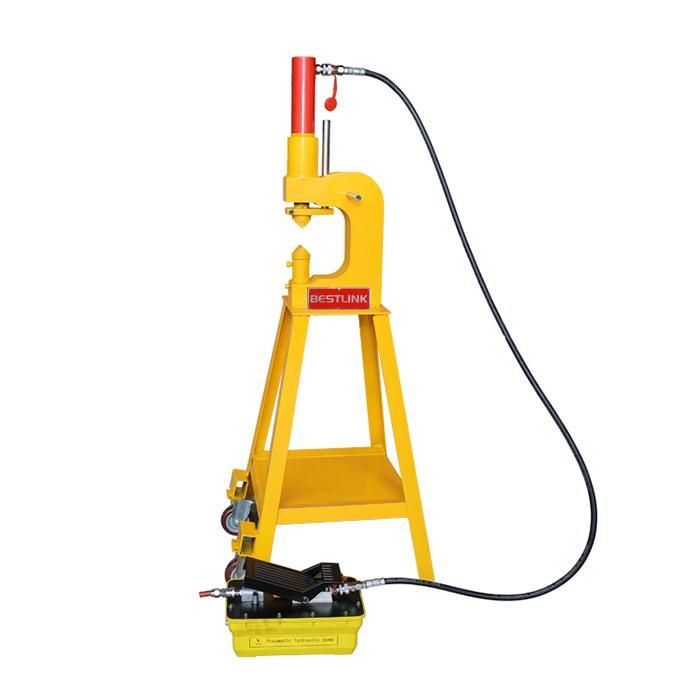

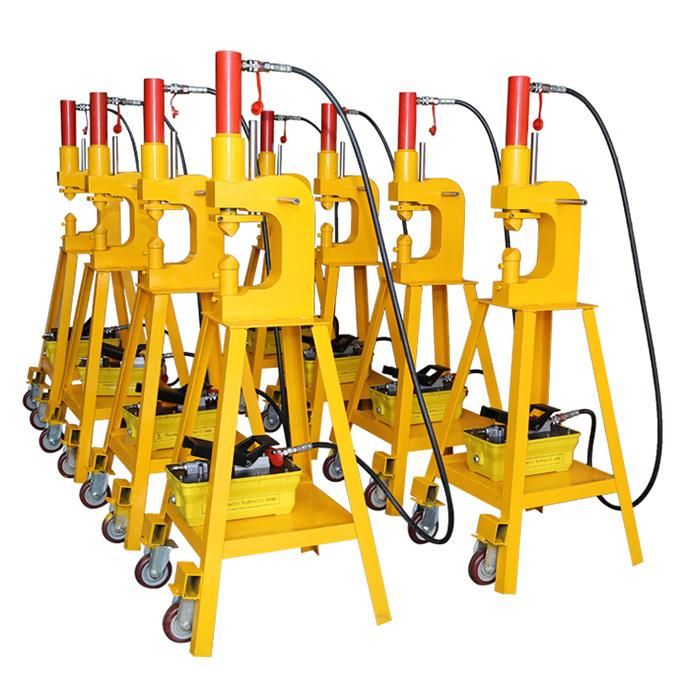

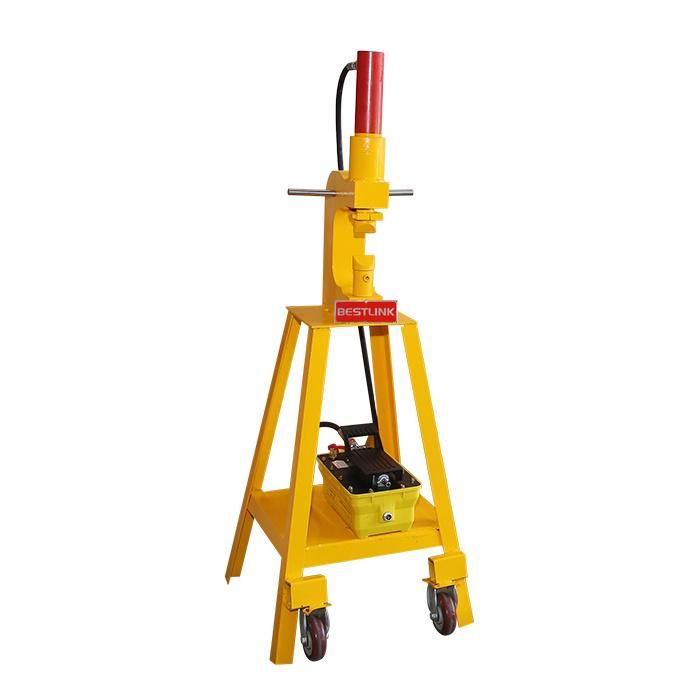

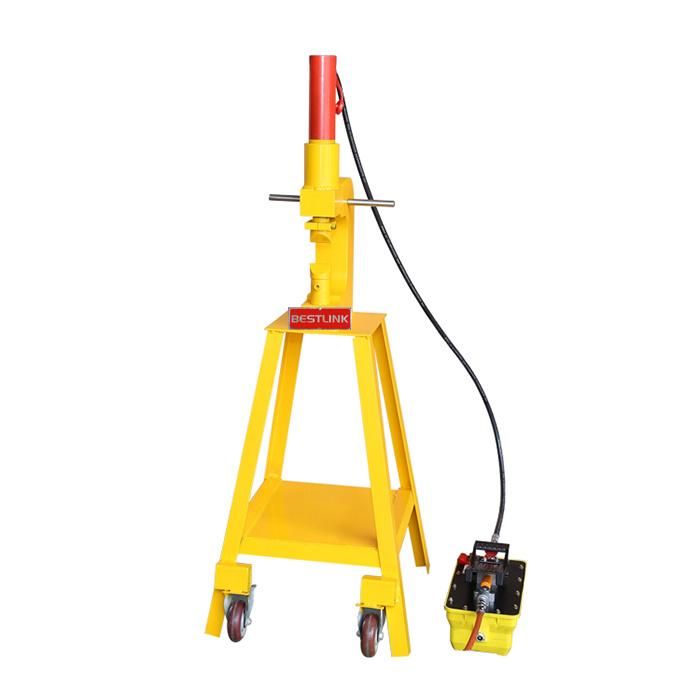

Mighty C Thin Veneer Stone Splitter


The Mighty C (MC-15) is a portable hydraulic thin veneer splitter designed to split thin veneer

and thin veneer corners,powered by compressed air or small electric hydraulic pump.There

are 6 basic parts to the Mighty C: Sleeve, Jam Nut, Bit Holder, Bit, Base and C Frame.



Technical Parameter:

Splitting force:15T

Travelling stroke(max):100mm

Overall size:600*500*1200mm

Power request:

A.By air compressor

Work pressure:0.6-0.7Mpa

Air Consumption:250-350L/min.

B.By electric power pump

2phases,220V/50Hz,0.6KW

oil tank: 3L

working pressure: 20Mpa

Oil flux: 0.6L/min.

Rotation speed: 1600RPM



Advantage:

Increased Productivity

Easy to Maintain

Environmentally Friendly

Eliminates Need for Costly Saw Blades

No Dust From Saw Cutting

No Water Waste

No Saw Blade Waste

Portable - Indoor or Outdoor Use
