• Model NO.：PF1214, 1315, 1316
• Finished Surface：Thread Process
• Certification：CE, ISO
• Condition：New
• Color：Yellow
• Export Markets：Global
• Transport Package：Export Standard by Container
• Specification：Management Standard
• Trademark：kilomega
• Origin：Ningbo, China
• HS Code：84749000
• Production Capacity：800t,H

Basic Info.

Model NO. PF1214, 1315, 1316 Finished Surface Thread Process Certification CE, ISO Condition New Color Yellow Export Markets Global Transport Package Export Standard by Container Specification Management Standard Trademark kilomega Origin Ningbo, China HS Code 84749000 Production Capacity 800t/H

Product Description

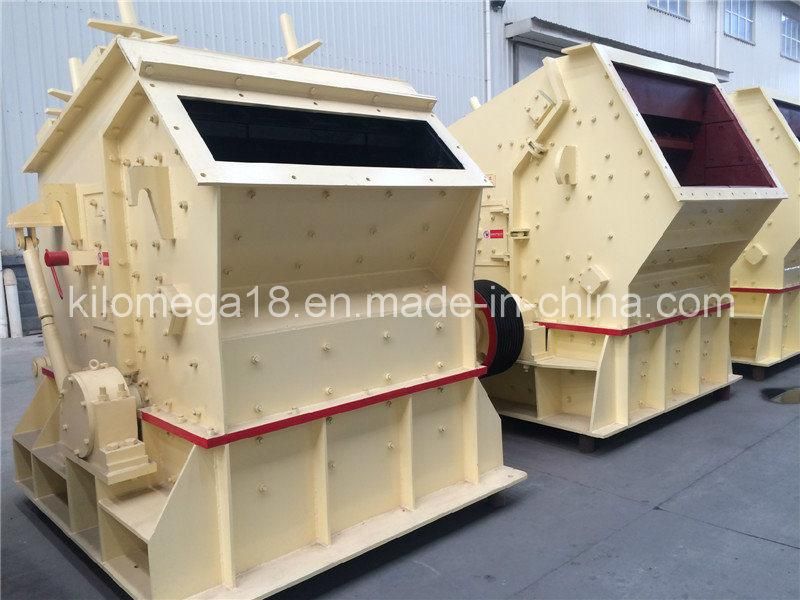

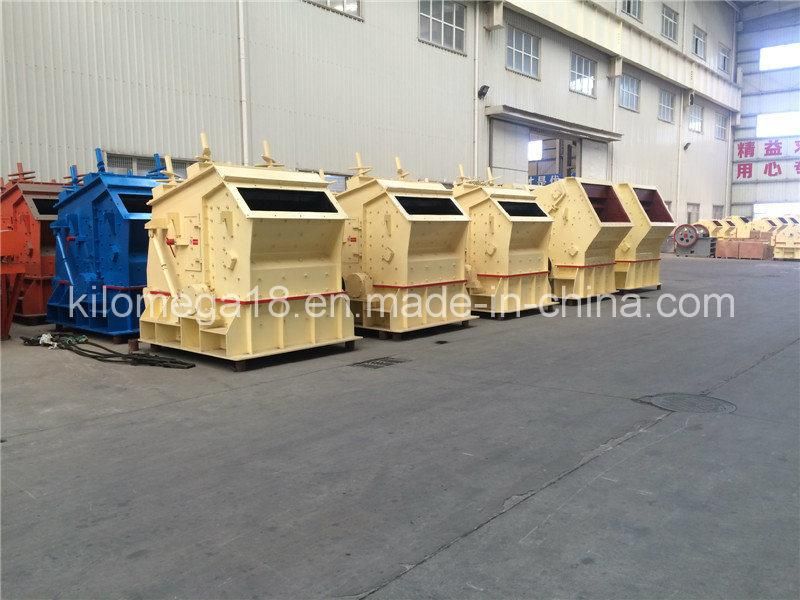

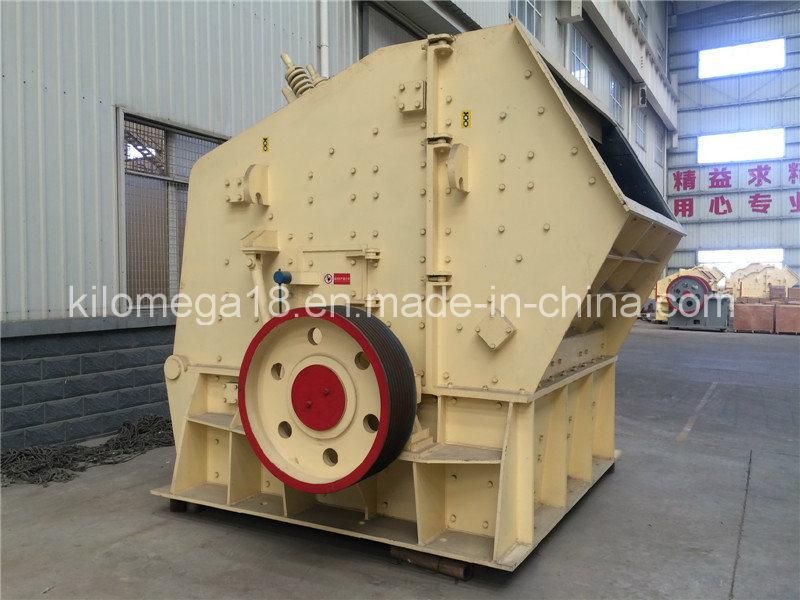

Impact Crusher

Impact Crushers are used in both primary and secondary crushing applications of aggregate, and in recycle crushing of reinforced concrete, asphalt and other construction and debris. The impact crusher processes various kinds of material with crushing compression strength not more than 350 mpa, featuring firm structure, stable performance, large capacity, even producing granularity, convenient maintenance and economical running expense, and widely applied in the areas of mining, construction material, smelting, railway, highway, water conservancy, etc.

Advantage of impact crusher:
1. Economy (save energy and current consumption)
2. Big opening size (reach to 500mm)
3. Special impact plate
4. Cubical shape of grain size
5. Delivery in time

Service (one-stop service)
Pre-sale service: Selection, designing and manufacturing plant as your request.
Selling service: Designing paper, confirmation detail of sales contract
After-sale service: Installation and trial run, train operator and so on.

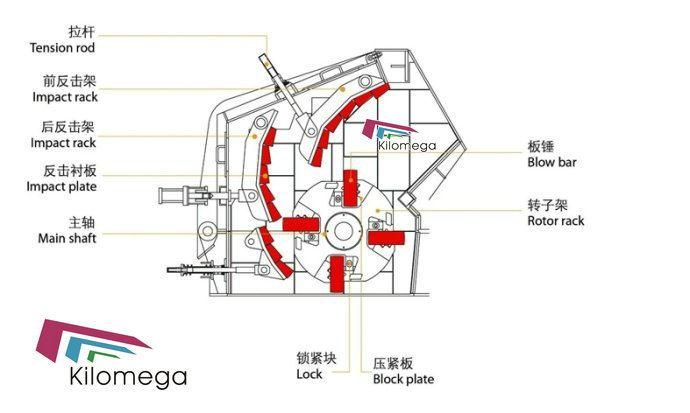

Working Principle of Impact Crusher
Impact crusher is the machine which breaks materials using the impact energy. The rotor rotates of our impact crusher with a high speed driven by power motor when the machine is working. When the materials get into hammer effect area, they are impacting to break with the hammer on the rotor and then threw to the impacting position to take another crushing. After that they spring back to hammer impacting area from impact wrist plate to take crushing again. This procedure repeats itself. The materials get into 1, 2, 3 impact cavity from big to small to take repeated crushing. When the material is crushed to the required size, it's discharged from the outlet. The material's discharging size and shape can be changed through adjusting the gap between impact frame and rotator.




Main technical data

Type	Spec.	Opening (mm)	Max. Feeding Size (mm)	Capacity (t/h)	Motor Power (KW)	Weight (t)
PF-0607	Φ  644 ×  740	320 ×  770	100	10-20	30	4300
PF-0807	Φ  850 ×  700	400 ×  730	300	15-30	30-45	6500
PF-1008	Φ  1000 ×  800	400 ×  830	300	30-60	37-55	10500
PF-1010	Φ  1000 ×  1050	400 ×  1080	350	50-90	55-75	12500
PF-1210	Φ  1250 ×  1050	400 ×  1080	350	70-130	90-110	15800
PF-1212	Φ  1250 ×  1250	400 ×  1300	350	100-150	110-132	17500
PF-1214	Φ  1250 ×  1400	400 ×  1430	400	100-180	132-160	19800
PF-1315	Φ  1320 ×  1500	860 ×  1520	500	160-250	180-260	24000
PF-1320	Φ  1320x2000	860x2030	500	300-350	300-375	29000
