• Model NO.：PC
• Finished Surface：Gear Process
• Certification：CE, ISO
• Condition：New
• Color：Yellow
• Name：China High Quality Sand Crusher Hammer for Sale
• Keywords：Mini Stone Crusher
• Installation：Engineer Guide
• After Sale Service：Maintenance
• Material：High Manganese Steel
• Rotor Speed：750-1440 R,Min
• MOQ：1 Set
• Capacity：5-110 T,H
• Power：5-75kw
• Transport Package：Wooden Case, Standard Container
• Specification：Pc
• Trademark：Hengchang
• Origin：China
• HS Code：8474209000
• Production Capacity：10 Set,Day

Basic Info.

Model NO. PC Finished Surface Gear Process Certification CE, ISO Condition New Color Yellow Name China High Quality Sand Crusher Hammer for Sale Keywords Mini Stone Crusher Installation Engineer Guide After Sale Service Maintenance Material High Manganese Steel Rotor Speed 750-1440 R/Min MOQ 1 Set Capacity 5-110 T/H Power 5-75kw Transport Package Wooden Case, Standard Container Specification Pc Trademark Hengchang Origin China HS Code 8474209000 Production Capacity 10 Set/Day

Product Description

1.Product Description Of China High Quality mini stone hammer crusher It crushes things by the high speed collisions between the hammer and the materials and it is developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic material, construction material, road building, and petroleum & chemical industries. it has the advantages of simple structure, large crushing ratio and high production efficiency. the grate gap of hammer crusher can be adjusted according to the user's different particle size requirements.


2.Working principle Of China High Quality mini stone hammer crusher

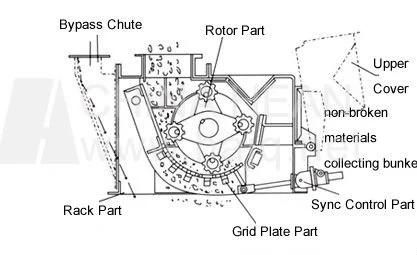

In the hammer mill crusher machine, the motor drives the rotor to rotate at a very high speed with the help of  the belt, and on the rotor there are series of hammers. which can deal with different kind of materials. When the materials get into the working area of hammers, it will be crushed immediately by the rotating hammers with high rotation speed .


3.Main Features Of China High Quality mini stone hammer crusher

1. High production capacity, high crushing ratio.
2. Low power consumption, uniform particle size.
3. Simple structure, easy to operate.
4. Low investment cost, easy management.
5. The enhancement rotor is designed with finite element analysis technology.
6. High crushing ratio. The crushing ratio ranges from 10 to 25 or even higher to 50.
7. The AMC alloy hammerhead enjoys a service life increased by 50~150%.
8. The theory of stone hitting effectively reduces the wear load of hammerhead and grid plate.
9. The military high strength artillery steel spindle is designed with vacuum duplex which increases the strength by 3-4 times.

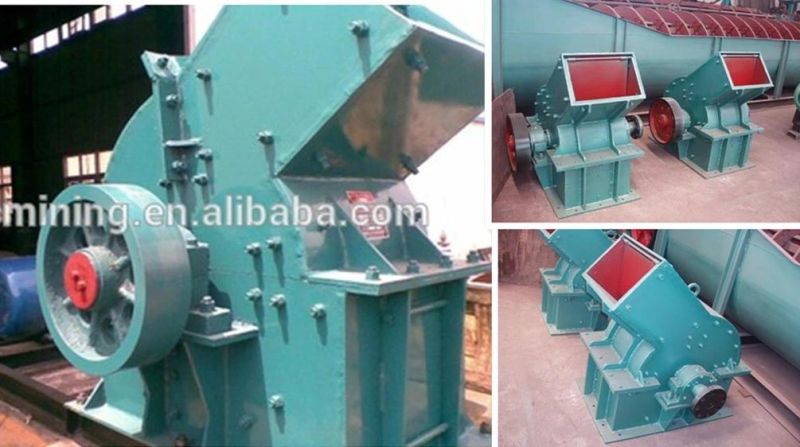

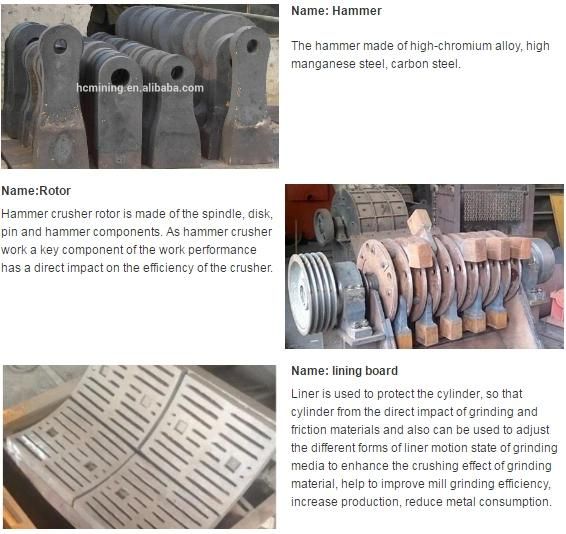

 4.Detailed Images Of China High Quality mini stone hammer crusher

5.Our Company

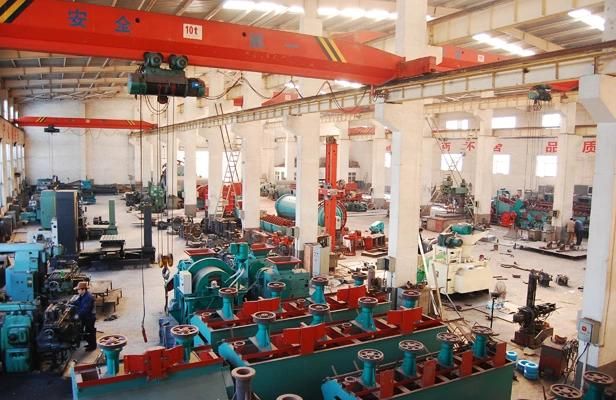

Gongyi Hengchang Metallurgy Building Material Equipments plant is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry etc.


6.Technical parameter Of China High Quality mini stone hammer crusher


Model	Rotor Size   Rotor size(mm)	Rotor speed (r/min)	Feeding size (mm)	Output size (mm)	Motor power (kw)	Capacity (t/h)	Weight (kg)
PC400×300	Φ400×300	1440	≤100	≤10	7.5	5-10	900
PC600×400	Φ600×400	960	≤100	≤15	18.5	10-20	1500
PC800×600	Φ800×600	970	≤120	≤15	45	18-24	2680
PC1000×800	Φ1000×800	990	≤200	≤15	110	30-50	5600
PC1000×1000	Φ1000×1000	990	≤200	≤15	132	30-60	8000
PC1200×1200	Φ1200×1200	750	≤250	≤20	180	90-110	19000
