Multi Blades Cutting Machine (DQ2200)
Xiamen Aga Import and Export Co., Ltd.- Type：Laser Cutting Machine
- Usage：Granite, Marble
- Application：Machinery & Hardware, Construction, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：DQ2200
- Control：CNC
- Certification：SONCAP, ISO, CE
- Transport Package：Plastic
- Specification：7.8*4.3*5.3
- Trademark：AGA
- Origin：China
- HS Code：84641090
- Production Capacity：50set,Month
Description
Basic Info.
Model NO. DQ2200 Control CNC Certification SONCAP, ISO, CE Transport Package Plastic Specification 7.8*4.3*5.3 Trademark AGA Origin China HS Code 84641090 Production Capacity 50set/MonthProduct Description

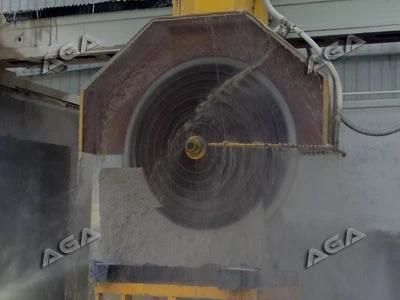

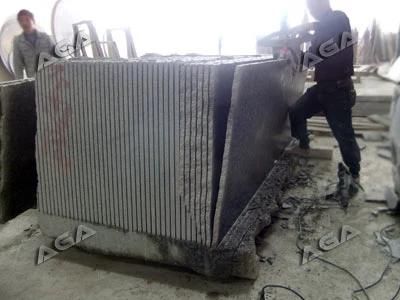

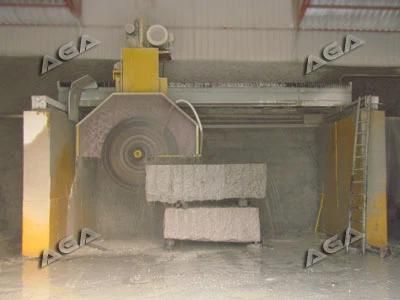

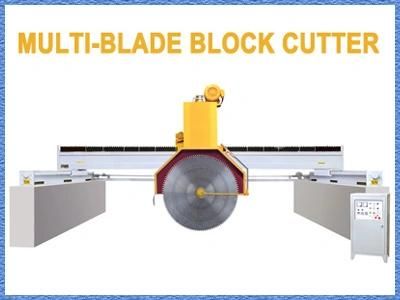

A bridge type reliable and heavy duty machine with the latest technology for sawing granite block into slabs.
Suitable for running with one blade and multi blades, which greatly improves the production output.

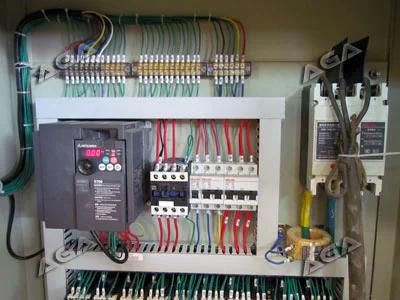

The machine is microcomputer control and works by program automatically and also capable of manual operation.
The heavy cast steel bridge provides excellent balance when working ensuring uniform thickness of slabs. Sepcification
| Model | Unit | 2200 | 2500 | 2800 |
| Max. blade size | mm | Φ2200 | Φ2500 | Φ2800 |
| Max. cut length | mm | 2800 | 3300 | 3000 |
| Max. cut width | mm | 2000 | 2000 | 2000 |
| Max. cut depth | mm | 950 | 1100 | 1250 |
| Spindle motor | Kw | 45 | 45 | 45 |
| Total power | Kw | 52 | 52 | 52 |
| Size (L×W×H) | mm | 7×4.3×5.3 | 7.8×4.3×5.5 | 7.3×4.3×5.8 |
| Weight | Kg | 11000 | 11500 | 12000 |
