Infrared Automatci Middle Stone Block Bridge Cutting Machine
FUJIAN NAN'AN HENGLONG MACHINERY CO.,LTD.- Type：CNC Cutting Machine
- Usage：Granite, Marble
- Application：Machinery & Hardware, Construction, Mineral Industry, Stone Industry
- Source Voltage：380V
- Automation：Automatic
- Cutting Ability：High Speed
Base Info
- Model NO.：HLZC-1200
- Certification：SONCAP, ISO
- Max Blade Diameter：1200mm
- Max Litting Storke：760mm
- Worktable Rotation Range(Optional)：90 N`
- Water Consumption：4 M3,H
- Power of Main Motor：22kw
- Total Power：27kw
- Total Weight：6100kg(7400kg Including Steel Base)
- Specification：6400*4100*4000mm
- HS Code：84641090
- Production Capacity：30~50sets ,Month
Description
Basic Info.

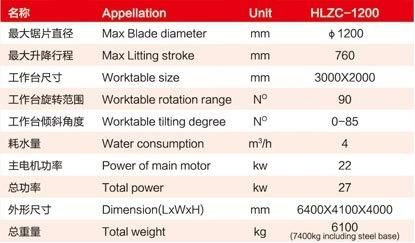

Model NO. HLZC-1200 Certification SONCAP, ISO Max Blade Diameter 1200mm Max Litting Storke 760mm Worktable Rotation Range(Optional) 90 N` Water Consumption 4 M3/H Power of Main Motor 22kw Total Power 27kw Total Weight 6100kg(7400kg Including Steel Base) Specification 6400*4100*4000mm HS Code 84641090 Production Capacity 30~50sets /MonthProduct Description
Product Description
High efficiency for cutting slab & tile, stable and reliableFeature
1. Wide bridge structure with crossbeam, large size of slab cutting available
2. Equipped with infrared device, precise cutting location reachable
3. Dustproof design of the slide track ensures the precise guide movement & long lifespan
4. Worktable can tilt & rotate in wide angle for special processing
5. PLC control system, programmable, fully automatic & smooth feeding
6. Electric parts of Japanese name brand adopted, reliability guaranteed
7. Touch-sensitive operating system, friendly human-machine interface design
The crossbeam is made of strong cast iron to avoid distortion after long run
Guide rail is oil impregnated and protected from water and dust
Vertical movement of machine head is driven by hydraulic system, and the stroke is adjustable
More information please feel free to contact us
