• Model NO.：VSI5X Series
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Container, Nude Packs, in Bulk
• Specification：ISO 9001: 2000
• Trademark：Zenith
• Origin：China
• HS Code：8474209000
• Production Capacity：1000 Set,Year

ModelB-7611B-8518B-9526B-1140Capacity (t/h)Cascade and central feeding120-180200-260300-380450-520Central feeding60-90100-130150-190225-260Max.Feeding dimension (mm)Soft material<35<40<45<50Hard material<30<35<40<45Rotation speed(r/min)1700-18901520-19601360-15101180-1310Double motor power (kw)110-150180-220264-320400-440Overall dimension (LxWxH)(mm)3700x2150 x21004140x2280 x24254560x2447 x27785000X2700 X3300Weight(t)7.810.31625.6Power380v;50HzVibration SensorInspection range:0.1-20mm/s continual adjustmentLabrication SystemDouble pump motor power2x0.31KWSafetyAltemative double pump oil supply;machine stops automatically without oil flow or oil pressure.water cooling,motor warm start in winter.Overall dimension (LxWxH)-820x520 x1270820x520 x1270-Gasoline tank heating power2KW

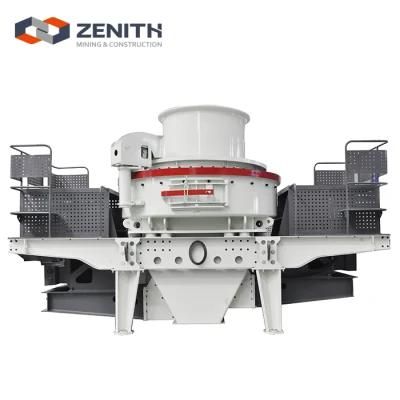

vertical shaft Impact Crusher Technical Data:

Model	Max. Input Size(mm)	Power(kw)	Impeller Speed (r/min)	Capacity (t/h)	Weight (kg)
PCL-600	30	2x30	2000-3000	12-30	5600
PCL-750	35	2x45	1500-2500	25-55	7300
PCL-900	40	2x55	1200-2000	55-100	12100
PCL-1050	45	2x(90-110)	1000-1700	100-160	16900
PCL-1250	45	2x(132-180)	850-1450	160-300	22000
PCL-1350	50	2x(180-220)	800-1193	200-360	26000
