• Model NO.：Huada Machine
• Automation：Automatic
• Cutting Ability：Stone Cutting Machine
• Control：Electrical Driven
• Certification：ISO, CE, SGS
• Function：Stone Cutting
• Beads/Meter：40
• Cutting Material：Granite, Marble, Limestone, Travertine
• Transport Package：Plywood Packing
• Specification：10.5mm, 11mm, 11.5mm, 12mm
• Trademark：HUADA
• Origin：Quanzhou, Fujian, China
• HS Code：84641020
• Production Capacity：800 Set Per Year

Basic Info.

Model NO. Huada Machine Automation Automatic Cutting Ability Stone Cutting Machine Control Electrical Driven Certification ISO, CE, SGS Function Stone Cutting Beads/Meter 40 Cutting Material Granite, Marble, Limestone, Travertine Transport Package Plywood Packing Specification 10.5mm, 11mm, 11.5mm, 12mm Trademark HUADA Origin Quanzhou, Fujian, China HS Code 84641020 Production Capacity 800 Set Per Year

Product Description

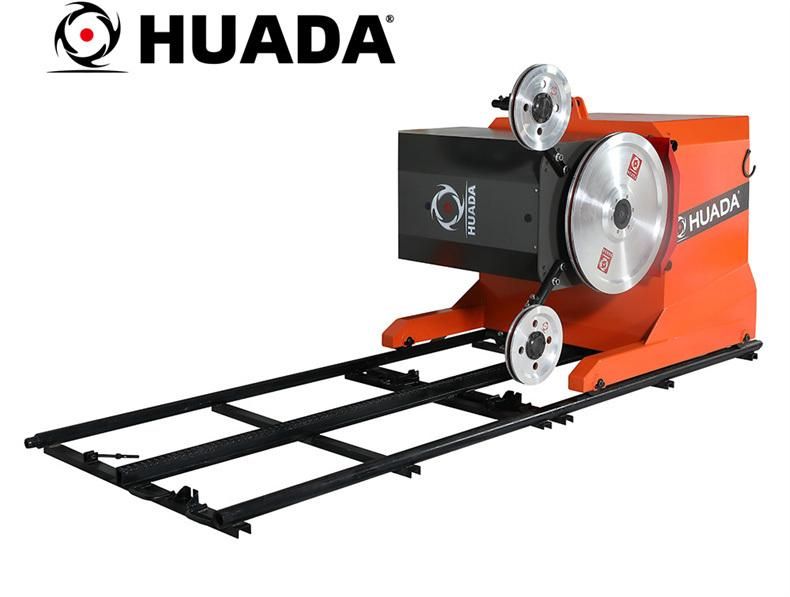

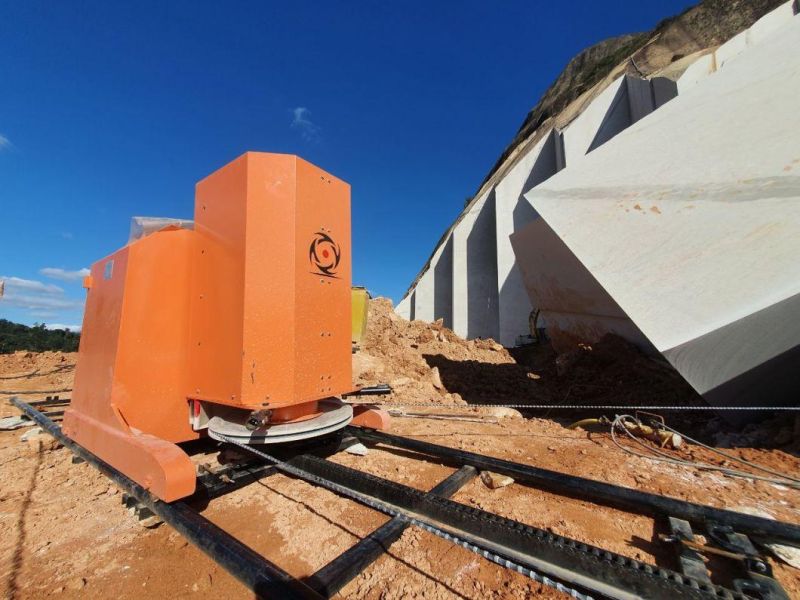

HUADA diamond wire saw machine for marble quarrying, 55kw




I. Parameters of the Machine

HUADA offers a series of diamond wire saw machine to meet the varied demands in quarries. DWS-55/DWS075 are used for big block mining, while DWS-37 is used for blocking squaring or trimming.

In 2019, HUADA launched its newest serious diamond wire saw machine, DWS-37M/55M/75M. The new machine uses permenanent magnet motor to increase the machine's cutting capacity and greatly reduce the heat generation and energy loss. The new machine turns to be a huge success and is going to take its fair market share in the coming years.


Product model	DWS-37	DWS-55	DWS-75
Main motor power (kW)	37	55	75
Total motor power (kW)	40	58	79
Headpiece overturning	±180°	±180°	±180°
Linear velocity of main flywheel (m/s)	0~40	0~40	0~40
Maximum cut spacing (mm)	1750	1950	2100
Rail length (m)	2m*3 sections	2m*5 sections	2m*5 sections
Rail weight/section (kg)	80	83	85
Weight of main unit (kg)	2515	2820	3650
Machine dimensions (L*W*H) (mm)	2100*1410*1500	2100*1550*1650	2210*1700*1750
Machine dimensions (L*W2*H2) (mm)	2100*1300*1680	2100*1480*1780	2210*1550*1950

II.  Characteristics of the Machine

1. The diamond wire saw machine is equipped with brand inverter and PLC, coupled with a full digital communication system and real-time current tracking capability. This ensures the constant tension of diamond wire for more efficient cutting and longer life.
2. The automatic control software features multi-language digital display and data storage system. Having been used in quarry practice for over 20 years, the cutting parameters and operational statistics have been fine tuned to meet the customers' needs .
3. The structural strength, ventilation and heat dissipation of the diamond wire saw machine are analyzed using digital simulations to ensure continuously stable operation of the machine for extended period of time, especially suitable for severe working conditions in quarry .
4. The operation of the machine is protected by built-in speed regulating interface.
5. Machine stops automatically when emergency, like wire break, occurs.
6. Many other functions are optional to meet the unique quarrying needs of different customers.

III. Operation of the Machine

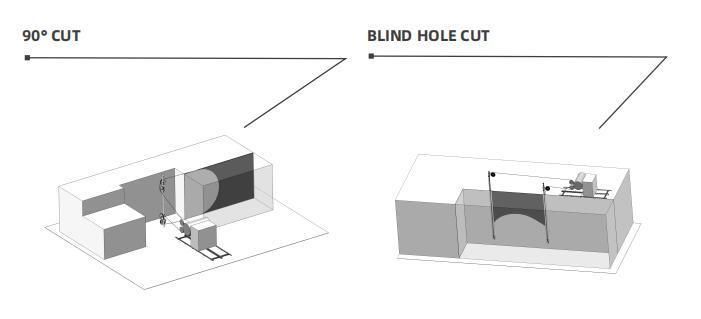

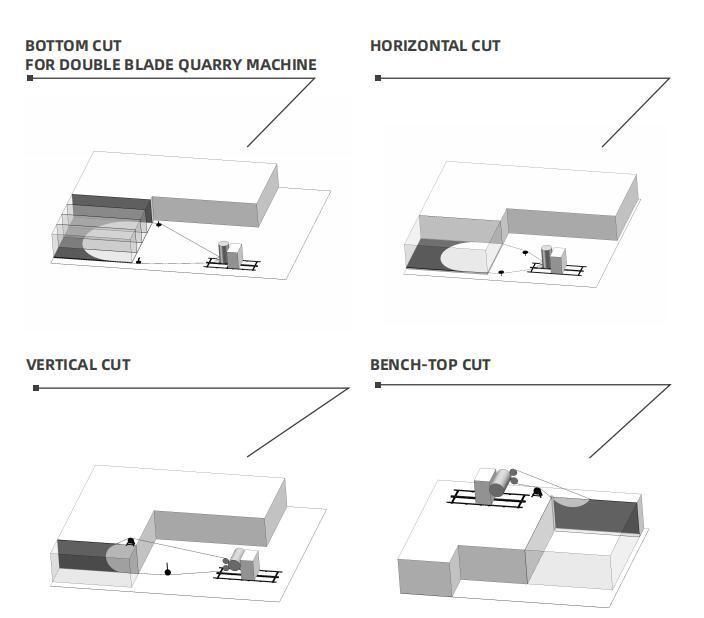

        Diamond wire saw machine is widely applied to cut the granite, marble, limestone, sandstone, and slate quarries. It is versatile as it can perform horizontal, vertical or inclined cutting in high efficiency. With the guiding wheels, the machine can be flexibily placed  where convenient.

 a. Diamond Wire Saw Performs Vertical Cutting
  b. Diamond Wire Saw Machine Performs the horizontal Cutting


c. Diamond Wire Saw Machine Performs the horizontal Cutting

IV. About Our Company


In 2019, Huada Stone Quarrying Research Institute was founded. With the aim of making it the benchmark in Chinese stone quarrying technology and management, we are striving to make it the top technical standard in global quarrying industry, and to spread the advanced ideas and technology to the world.
