Wire Saw Cutting Machine Granite Marble Sandstone Onyx Limestone
Fujian Xianda Machinery Co., Ltd.- Type:CNC Cutting Machine
- Usage:Concrete Curb, Granite, Marble, Block
- Application:Machinery & Hardware, Art & Craft, Construction, Stone Industry, Stone Machinery
- Source Voltage:380V
- Automation:Automatic
- Cutting Ability:High Speed
Base Info
- Model NO.:CNC-3000
- Control:CNC
- Certification:API, CCC, UL, SONCAP, GOST, ISO, CE, SGS
- Max Processing Size:3000*3000*1500mm
- Dimension of Worktable:2500*1300mm
- Main Motor:7.5kw
- Gross Motor:11kw
- Outline Dimension:7500*6300*3800mm
- Gross Weight:6000kg
- Water Consumption:4m3,H
- Advantage:Multi Function with Good Quality and Price
- Key Words:Stone Machine
- Warranty Time:One Year
- Transport Package:Plastic Package, Suitable for Sea Transportation
- Specification:6500*6300*3800mm
- Trademark:Xianda
- Origin:Jinjiang, Fujian, China
- HS Code:84641090
- Production Capacity:1000 Sets,Year
Description
Basic Info.
Model NO. CNC-3000 Control CNC Certification API, CCC, UL, SONCAP, GOST, ISO, CE, SGS Max Processing Size 3000*3000*1500mm Dimension of Worktable 2500*1300mm Main Motor 7.5kw Gross Motor 11kw Outline Dimension 7500*6300*3800mm Gross Weight 6000kg Water Consumption 4m3/H Advantage Multi Function with Good Quality and Price Key Words Stone Machine Warranty Time One Year Transport Package Plastic Package, Suitable for Sea Transportation Specification 6500*6300*3800mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/YearProduct Description
CNC-3500 Diamond wire saw stone cutting machine FOR QUARING BLOCK

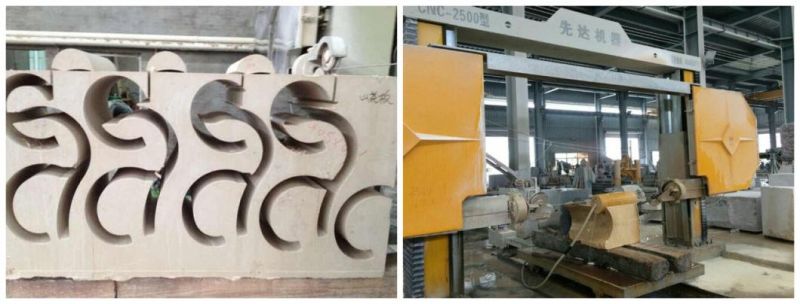

CNC -2000 diamond wire saw stone cutting machine is a good choice for irregular stone processing. Easy to operate, it can cut many special shape.

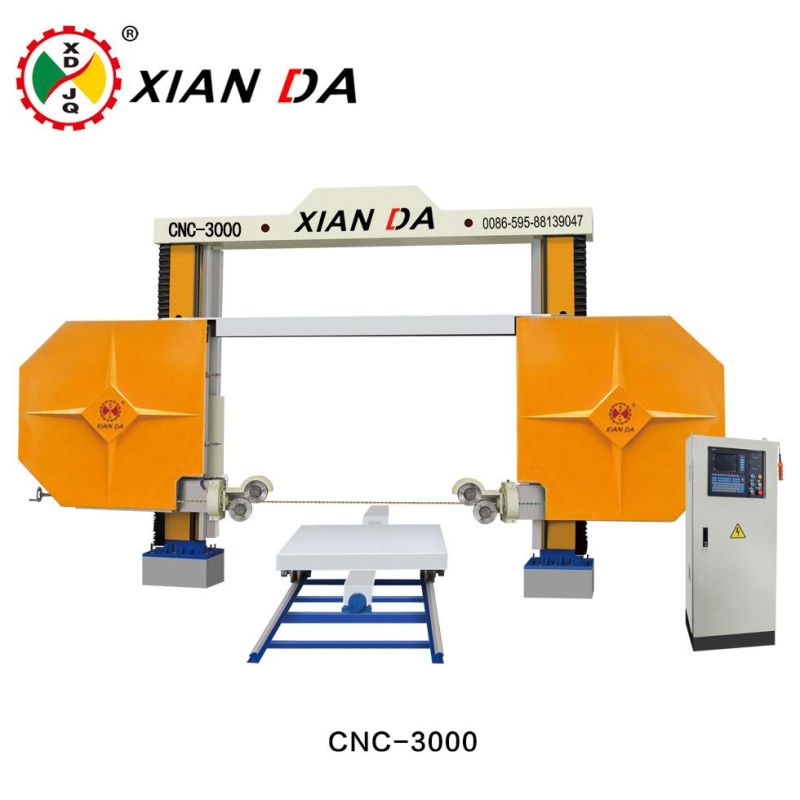

CNC - 3000 Diamond wire saw stone profiling cutting machine . Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.
1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.
Technical Parameter
Parameter | Unit | CNC-2000 | CNC-2500 | CNC-3000 |
Max processing size | mm | 3000*2000*1500 | 3000*2500*1500 | 3000*3000*1500 |
Dimension of worktable | mm | 2500*1300 | 2500*1300 | 2500*1300 |
Main motor | kw | 7.5 | 7.5 | 7.5 |
Gross motor | kw | 11 | 11 | 11 |
Outline dimension | mm | 6500*6300*3800 | 7000*6300*3800 | 7500*6300*3800 |
Gross weight | kg | 5000 | 5500 | 6000 |
Water consumption | m3/h | 4 | 4 | 4 |
Xianda machinery

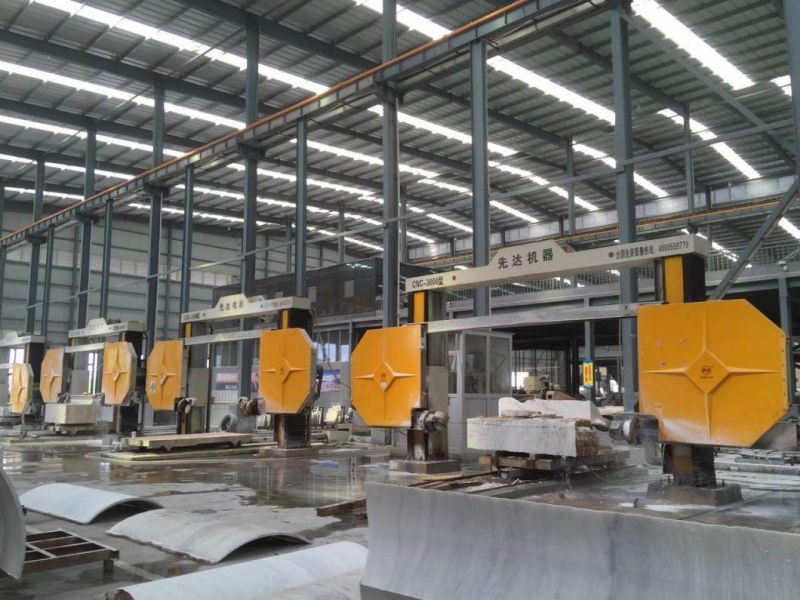

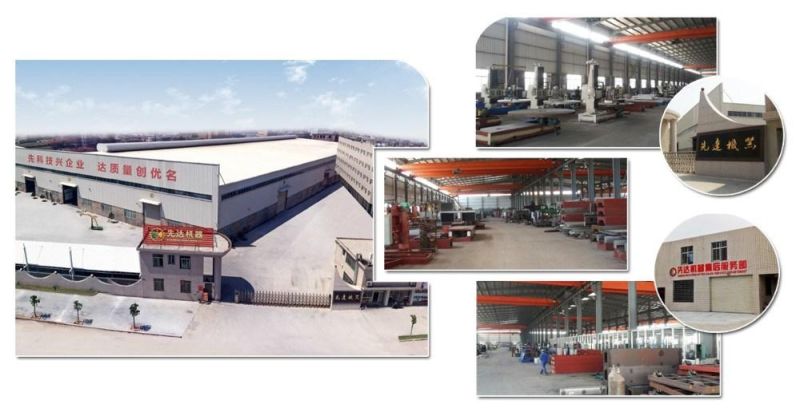

Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.
