Mobile Stone Crusher Crushing Plant and Screening Plant

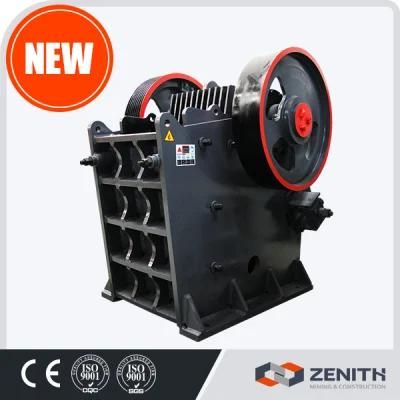

Shanghai Zenith Mineral Co., Ltd.- Type：Jaw Crusher
- Application：Construction, Mineral Industry, Stone Industry
- Drive：Electric
- Crushing Style：Grinding & Impact
- Compressive Strength (For Crushing)：Various According to Different Model
- Crushing Degree：Coarse Crusher
Base Info
- Model NO.：KE600-1, KE750-1, KE760-1, KE860-1, KJ125-1
- Finished Surface：Hole Process
- Certification：CE, ISO, GOST
- Condition：New
- Color：Iron Grey
- Spare Parts Supply：for Whole Year
- Test&Installation：Engineer Assigned
- After-Sale Service：for Whole Using Life
- Export Markets：Global
- Transport Package：Container, Nude Packs, in Bulk
- Specification：ISO9001: 2000
- Trademark：Zenith
- Origin：China
- HS Code：8474209000
- Production Capacity：1000 Set,Year
Description
Basic Info.
Model NO. KE600-1, KE750-1, KE760-1, KE860-1, KJ125-1 Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Container, Nude Packs, in Bulk Specification ISO9001: 2000 Trademark Zenith Origin China HS Code 8474209000 Production Capacity 1000 Set/YearProduct Description

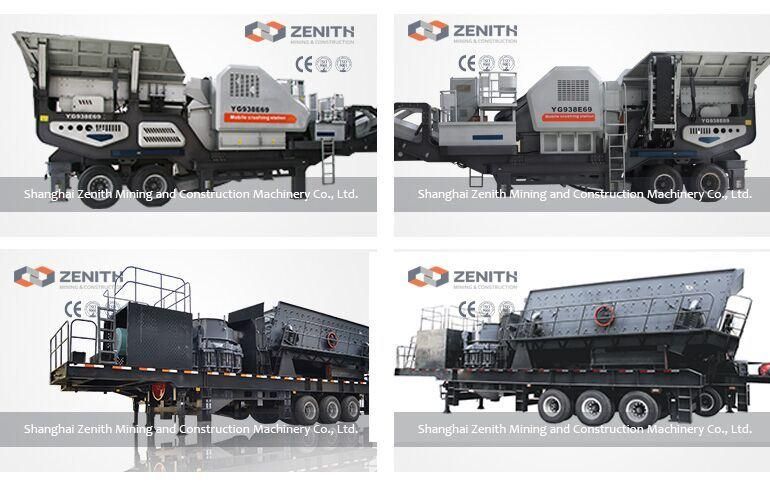

Mobile Stone Crusher Crushing Plant and Screening Plant:Mobile Stone Crusher Crushing Plant and Screening Plant contain 7 series and 72 models products. And one series mainframes share one kind of metal-frame in the machine farm, so fresh-investors can get machine quickly and reinvestment won't take too much cost to update the crushing plant.
Mobile Stone Crusher Crushing Plant and Screening Plant Advantage:
• Compact structure and dismountable parts are good for transportation, cutting the transportation expenses.
• Equipped with supporting-metal, the machine can quickly start to work without any foundation.
• The vibrating feeder can finish the pre-screening work, which can increase the crushing capacity and cut the production cost.
• One metal-frame design fits for many mainframe crusher, we can prepare many inversion and fresh-investors can get machines quickly. Also reinvestment won't take too much cost to update the crushing plant.
• Equipped with sustained hoisting tools, operating platform, repair kit, and centralized control system, etc., to humanize maintenance and applications
• A water-jet dust suppression device and other relevant devices are added as options to satisfy users' various requirements
Mobile Jaw Crusher Plant parameters:
| Model | Specs. of screening equipment | Specs. of crushing equipment | Specs. of main belt conveyor | Hopper volume(m3) | Max.feeding size (mm) | Transportation dimension(mm) |
| KE600-1 | TSW0936 | PE600×900 | B800×8.3m | 5.3 | 500 | 12150×2600×3950 |
| KE750-1 | TSW1139 | PE750×1060 | B1000×8.5m | 7 | 630 | 13000×2850×4400 |
| KE760-1 | TSW1139 | PEW760 | B1000×8.5m | 7 | 640 | 13000×2800×4200 |
| KE860-1 | TSW1345 | PEW860 | B1200×9.5m | 8 | 720 | 14600×3000×4500 |
| KE1100-1 | TSW1548 | PEW1100 | B1400×9.5m | 11 | 930 | 14050×2900×4000 |
| KJ98-1 | TSW1139 | HJ98 | B800×8.3m | 5.9 | 560 | 12150×2600×3950 |
| KJ110-1 | TSW1345 | HJ110 | B1000×8.5m | 8.5 | 660 | 13200×3000×4400 |
| KJ125-1 | TSW1345 | HJ125 | B1400×9.5m | 8 | 800 | 14600×3000×4500 |
| KF1214-1 | TSW0936 | PFW1214 | B800×8.3m | 5.3 | 500 | 12150×2600×3980 |
| KF1315-1 | TSW1345 | PFW1315 | B1200×9.5m | 8 | 600 | 14600×3100×4500 |
| KF1415-1 | TSW1548 | PFW1415 | B1200×9.5m | 11 | 700 | 14050×3000×4000 |
| Model | Specs. of screening equipment | Specs. of crushing equipment | Specs. of main belt conveyor | Max.feeding size (mm) | Transportation dimension(mm) |
| KC75-2 | 3Y1848 | CS75B | B800×7.5m | 150 | 12600×3000×4500 |
| KC160-2 | 3Y1860 | CS160B | B800×8.5m | 205 | 13800×3000×4500 |
| KT100-2 | 3Y1848 | HST100H1 | B800×7.5m | 185 | 12600×3000×4500 |
| KT160-2 | 3Y1860 | HST160H1 | B800×8.5m | 185 | 13800×3000×4500 |
| KT250-2 | 3Y1860 | HST250H1 | B800×8.5m | 215 | 13800×3000×4500 |
| KH300-2 | 3Y1860 | HPT300C2 | B800×8.5m | 210 | 13800×3000×4500 |
| KF1214-2 | 3Y1860 | PFW1214 | B800×8.5m | 250 | 13800×3000×4500 |
| KF1315-2 | 3Y2160 | PFW1315 | B1000×8.5m | 300 | 13800×3150×4500 |
| KF1318-2 | 3Y2160 | PFW1318 | B1000×8.5m | 300 | 13800×3150×4500 |
| KS1848-1 | 3Y1848 | -- | B800×7.5m | -- | 12590×3000×4500 |
| KS1860-1 | 3Y1860 | -- | B800×8.5m | -- | 13800×3000×4500 |
| KS2160-1 | 3Y2160 | -- | B1000×8.5m | -- | 13800×3000×4200 |
| Model | Specs. of screening equipment | Specs. of crushing equipmentt | Specs. of main belt conveyor | Hopper volume(m3) | Max.feeding size (mm) | Transportation dimension(mm) |
| KC75-2D | 3Y1848 | CS75B | B800×7.5m | 7.2 | 150 | 16850×3000×4500 |
| KC160-2D | 3Y1860 | CS160B | B800×8.5m | 7.2 | 205 | 16850×3000×4500 |
| KT100-2D | 3Y1848 | HST100H1 | B800×7.5m | 7.2 | 185 | 16850×3000×4500 |
| KT160-2D | 3Y1860 | HST160H1 | B800×8.5m | 7.2 | 185 | 16850×3000×4500 |
| KT250-2D | 3Y1860 | HST250H1 | B800×8.5m | 8 | 215 | 16850×3000×4500 |
| KH300-2D | 3Y1860 | HPT300C2 | B800×8.5m | 8 | 210 | 16850×3000×4500 |
| KF1214-2D | 3Y1860 | PFW1214 | B800×8.5m | 7.2 | 250 | 16120×3000×4500 |
| KF1315-2D | 3Y2160 | PFW1315 | B1000×8.5m | 8 | 300 | 16120×3150×4500 |
| KF1318-2D | 3Y2160 | PFW1318 | B1000×8.5m | 8 | 300 | 16120×3150×4500 |
| KS1848-1D | 3Y1848 | -- | B800×7.5m | 7.2 | -- | 16910×3000×4500 |
| KS1860-1D | 3Y1860 | -- | B800×8.5m | 7.2 | -- | 16910×3000×4500 |
| KS2160-1D | 3Y2160 | -- | B1000×8.5m | 8 | -- | 16910×3000×4500 |
| Model | Specs. of screening equipment | Specs. of crushing equipment | Specs. of main belt conveyor | Max.feeding size (mm) | Transportation dimension(mm) |
| KV8518-2 | 3Y1848 | VSI8518 | B800×7.5m | 40 | 14200×3000×4500 |
| KV8522-2 | 3Y1860 | VSI5X8522 | B800×8.5m | 40 | 14200×3000×4500 |
| KV9526-2 | 3Y1860 | VSI9526 | B800×8.5m | 45 | 14200×3000×4500 |
| KV9532-2 | 3Y1860 | VSI5X9532 | B800×8.5m | 45 | 14200×3000×4500 |
| Model | Specs. of screening equipment | Medium and fine crushing and screening portable plant | Specs. of crushing equipment | Max.feeding size (mm) | Transportation dimension(mm) |
| KV8518-2X | 3Y1848 | XL-915 | VSI8518 | 40 | 13700×3000×4500 |
| KV8522-2X | 3Y1860 | 2XL-915 | VSI5X8522 | 40 | 13700×3000×4500 |
| KV9526-2X | 3Y1860 | 2XL-915 | VSI9526 | 45 | 13700×3000×4500 |
| KV9532-2X | 3Y1860 | 2XL-915 | VSI5X9532 | 45 | 13700×3000×4500 |
| KC75-2X | 3Y1848 | XL-915 | CS75B | 150 | 13700×3000×4500 |
| KC160-2X | 3Y1860 | XL-915 | CS160B | 205 | 13700×3000×4500 |
| KH300-2X | 3Y1860 | 2XL-915 | HPT300C2 | 210 | 13700×3000×4500 |
| KT250-2X | 3Y1860 | 2XL-915 | HST250H1 | 215 | 13700×3000×4500 |
| Model | Specs. of screening equipment | Model | Specs. of crushing equipment | Hopper volume(m3) | Max.feeding size (mm) | Transportation dimension(mm) |
| KF1214-3 | 3Y1848 | TSW0936 | PF1214 | 5.5 | 300 | 16400×2810×4500 |
| KF1214-3 | 3Y1848 | TSW0936 | PFW1214 | 5.5 | 500 | 16400×2810×4500 |
| KE500-3 | 3Y1548 | TSW0936 | PE500×750 | 5.5 | 425 | 16400×2760×4500 |
| KE600-3 | 3Y1848 | TSW0936 | PE600×900 | 5.5 | 500 | 16400×2760×4500 |
| Model | Specs. of screening equipment | Model | Complete portable plant | Sand-making and shaping portable plant | Max.feeding size (mm) | Transportation dimension(mm) |
| KE400C55-4 | 3Y1237 | GZD960×3500 | PE400×600 | PYB900 | 350 | 15150×2800×4500 |
| KE400C75-4 | 3Y1237 | GZD960×3500 | PE400×600 | CS75B | 350 | 15150×2800×4500 |
| KE500C55-4 | 3Y1237 | GZD960×3500 | PE500×750 | PYB900 | 425 | 15150×2800×4500 |
| KE500C75-4 | 3Y1237 | GZD960×3500 | PE500×750 | CS75B | 425 | 15150×2800×4500 |
| KE400F110-4 | 3Y1237 | GZD960×3500 | PE400×600 | PF1010 | 350 | 15150×2800×4500 |
| KE500F110-4 | 3Y1237 | GZD960×3500 | PE500×750 | PF1010 | 425 | 15150×2800×4500 |
