• Model NO.：H260
• Application：Glass, Acrylic, Plastic
• Type for Grinding Machine：Flame Polishing
• Grinding Machine Type：Flame Polishing
• Certification：CE
• Condition：New
• Transport Package：Carton
• Origin：China
• Production Capacity：500 Sets,Months

Basic Info.

Model NO. H260 Application Glass, Acrylic, Plastic Type for Grinding Machine Flame Polishing Grinding Machine Type Flame Polishing Certification CE Condition New Transport Package Carton Origin China Production Capacity 500 Sets/Months

Product Description

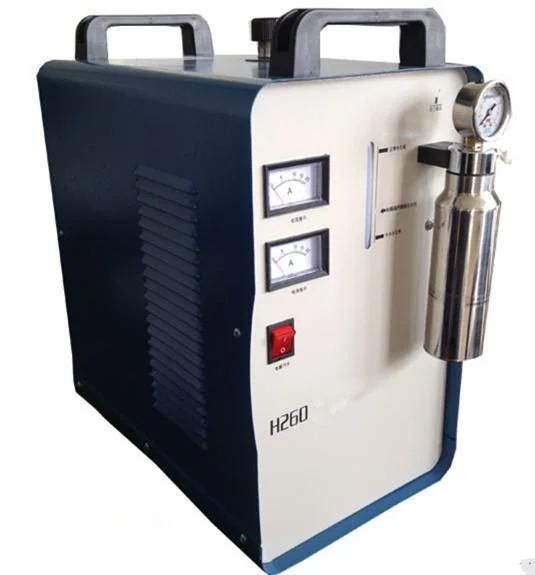

Acrlic polishing machine H260 with 2 torches

Gas flow is 150L/H.

with accessoreis of:

2 tourches,

6 pieces spare use nozzles,

1 bottle of NAOH powder

1 plastic funnel,

1 three-port valve

1 pvc pipe

1 electric power wire

1 flashback arrestor



Voltage can make to 110V, 220V



APPLICATION



1.Organic Glass Industry

Organic glass (acrylic ) polishing. High temperature flame can beautifully process the organic

handicraft articles.



2.Electronic Industry

IC encapsulation



3.Semiconductor



4.Nonferrous welding,

In the process of welding nonferrous metal ,oxygen is not necessarily needed by Oxy-hydrogen Generator.

It can save costs by more than 30% compared with the other way with the same-materials and same workloads .

a. Welding all kinds of platinum, gold ,silver , copper ornaments and so on.

b. The fusion of lead accumulator and tin poles.



5. School laboratory

Providing convenient and safe oxy-hydrogen flame.





Operating Procedures





1.Dissolving Electrolytic Powder



Add water and electrolytic powder(NaOH or KOH into the container and stir, and then cool off for 10 minutes.The ratio of electrolytic powder and water is 1:5.



2.Adding electrolytic solution



(1)Unscrew the nut of water inlet



(2)Fix funnel to avoid the leakage of electrolytic solution



(3)Pour the electrolytic solution into electrolysis trough



(4)It could be better to add the solution up to 90%



(5)Screw nut of water inlet



3.Adding filter agent



(1)Turn left and unscrew the filter cup



(2)Add filter agent into the filter cup, less than 1/2



(3)Install the filter cup to its upper cover and screw it.





4.Power-on Test



(1Connect flame gun to gas outlet using rubber tube. Choose proper nozzle according to the size of raw edges



(2Turn on the power, if the indicator light works, blower shifts, and at the same time, turn off flame gun and the pressure value increases, all is normal.



(3Light with direct fire, let the flame point to raw edges directly or tiltedly and keep proper distance, and then scan raw edges evenly.
