• Model NO.：ZDCM-400
• Control：PLC
• Certification：API, CCC, UL, SONCAP, GOST, ISO, CE
• Blade Diameter：Φ300-Φ600
• Max Processing Size：3200*2000*80mm
• Dimension of Worktable：3200*2000mm
• Workable Tilting Degree：0-85°
• Worktable Rotation Degree(Optional)：0-90° , 0-360°
• Main Motor：15kw
• Water Consumption：4m3,H
• Outline Dimension：5000*3100*2600mm
• Transport Package：Load in a 40 Feet Container
• Specification：5000*3100*2600mm
• Trademark：Xianda
• Origin：Jinjiang, Fujian, China
• HS Code：84641090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. ZDCM-400 Control PLC Certification API, CCC, UL, SONCAP, GOST, ISO, CE Blade Diameter Φ300-Φ600 Max Processing Size 3200*2000*80mm Dimension of Worktable 3200*2000mm Workable Tilting Degree 0-85° Worktable Rotation Degree(Optional) 0-90° / 0-360° Main Motor 15kw Water Consumption 4m3/H Outline Dimension 5000*3100*2600mm Transport Package Load in a 40 Feet Container Specification 5000*3100*2600mm Trademark Xianda Origin Jinjiang, Fujian, China HS Code 84641090 Production Capacity 1000 Sets/Year

Product Description

Zdcm-400 China 3 Axis Automatic Marble Granite Cutting Machine Mono Bridge Saw Machine Manufacturer








Product Description

ZDCM-400

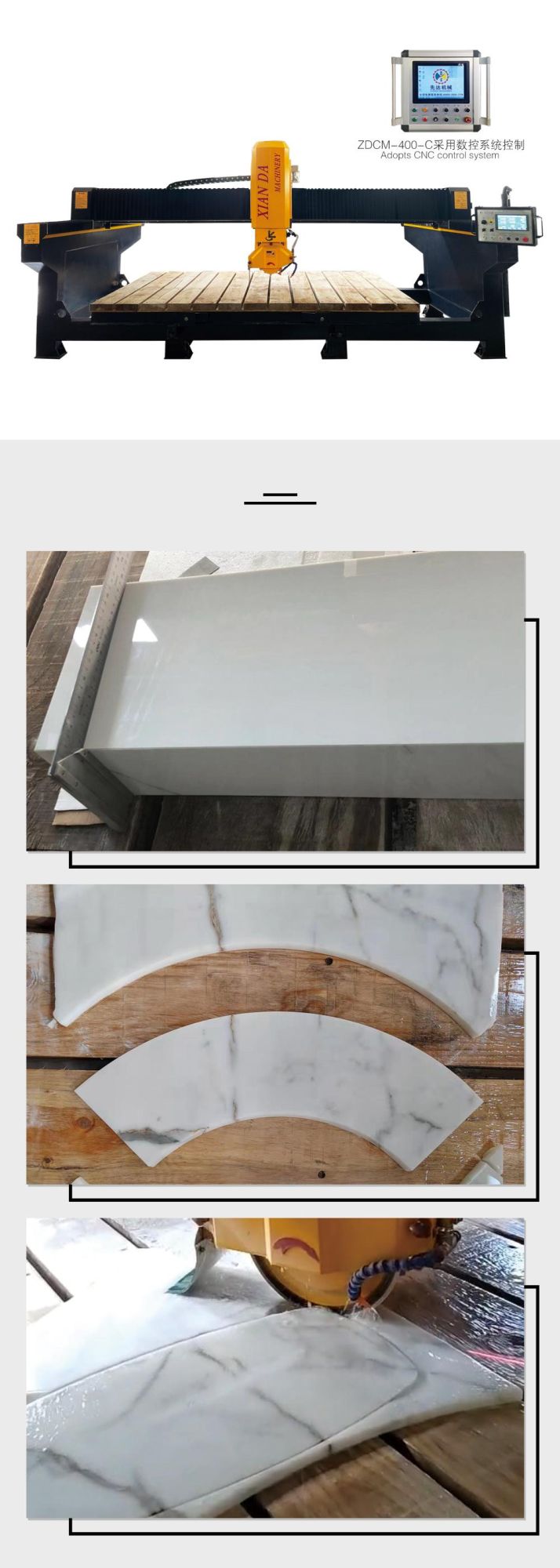

Monoblock bridge cutting machine(special for Marble and sintered stone)
This machine adopts Microcomputer system, easy to operate; Integrated structure, easy to install;
The frame of the machine boday is proceesed and formed by CNC gantry milling center at one time, using high-precision linear guide sliders, grinding-grade ball screws, and high -end servo systems. It greatly improves the stablilty, processing accuracy and production efficiency of the equipment, and reduces the failure rate. it is suitable for all kinds of large-scale plate processing with high precision requirements and high value.


Technical Parameter


Parameter	Unit	ZDCM-400-A	ZDCM-400-B	ZDCM-400-C
Control System Type	/	PLC	PLC	CNC
Blade Diameter	mm	φ300-φ400	φ300-φ400	φ300-φ400
Worktable Size	mm	3200*2000	3200*2000	3200*2000
Max Processing Size	mm	3200*2000*80	3200*2000*80	3200*2000*80
Worktable Tilting Angle	°	0°-85°	0°-85°	0°-85°
Cutting Head Rotation Degree	°	0°-90°	0°-360°	0°-360°
Cutting Head Chamfer Rotating Degree	°	0°-45°	0°-45°	0°-45°
Main Motor Power	kw	15	15	15
Water Consumption	m³/h	3	3	3
Outline Dimension	mm	5300*3100*2600	5300*3100*2600	5300*3100*2600



Xianda Machinery

Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition

Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
