• Model NO.：HQ400
• Automation：Automatic
• Cutting Ability：High Speed
• Control：CNC
• Certification：ISO, CE
• Size (L*W*H) Hq400：6*5*2.8m
• Size (L*W*H) Hq600：6*5*3m
• Size (L*W*H) Hq700：6*5.8*3.5m
• Blade Tilting：0-45 Degree for Miter Cut
• Table Rotation：0-90 Degree,0-360 Degree Stopped Any Position
• Power of Spindle Motor：15 Kw 20HP,18.5 Kw 25HP
• Cut Length：3200mm
• Cut Width：2000mm
• Cut Thick：110mm,180mm,230mm
• Total Power：21.5 Kw,26.5kw
• Transport Package：Plastic Water-Proof Package
• Specification：Model No: HQ400; HQ600; HQ700
• Trademark：AGA
• Origin：China
• HS Code：84641090
• Production Capacity：300sets,Month

Basic Info.

Model NO. HQ400 Automation Automatic Cutting Ability High Speed Control CNC Certification ISO, CE Size (L*W*H) Hq400 6*5*2.8m Size (L*W*H) Hq600 6*5*3m Size (L*W*H) Hq700 6*5.8*3.5m Blade Tilting 0-45 Degree for Miter Cut Table Rotation 0-90 Degree/0-360 Degree Stopped Any Position Power of Spindle Motor 15 Kw 20HP/18.5 Kw 25HP Cut Length 3200mm Cut Width 2000mm Cut Thick 110mm/180mm/230mm Total Power 21.5 Kw/26.5kw Transport Package Plastic Water-Proof Package Specification Model No: HQ400; HQ600; HQ700 Trademark AGA Origin China HS Code 84641090 Production Capacity 300sets/Month

Product Description

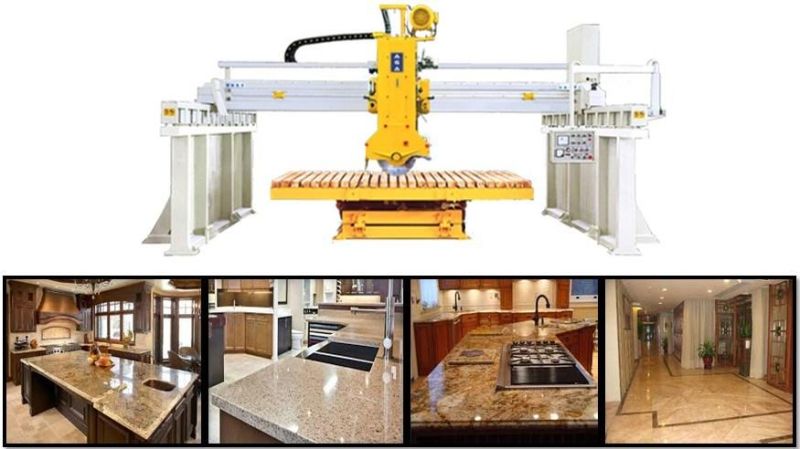

Automatic Laser Bridge Saw Cutting Granite Marble Slabs and Tiles
Model: HQ400

Bridge saw model HQ400
Reliable and efficient stone bridge saw is made with very strong steel frame. Full functions provide excellent in cutting granite, marble, quartz and other engineered stones. Tilting blade provides perfect performance in cutting and fabricating slabs, tiles, counter tops, vanity tops, bench tops, etc.

Stone bridge saw specifications:

Model	HQ400
Blade tilting 45° (Angle Cut Mitered)	N/A
Table Rotation 90°	Yes
Table Rotation 0-360°  (stopping at each 45°)	Optional
Table tilting 0 - 85°	Yes
Power Of Spindle Motor	15kw / 20 HP
Max Length of Cutting: (Table Size)	3200 x 2000mm / 126"x78"
Max Thick of Cutting:	110 mm 4"
Steel Walls Included	Optional


Stone bridge saw features:

Main structures of the stone bridge saw are made of very strong cast iron and stainless steel for protection. Powered table tilts 0-85 degree hydraulic for easy load of material. It can turn 0°-90°(optional: 0°-360° stopping automatically at 45°,90° and any angle) changing the cutting position easily.

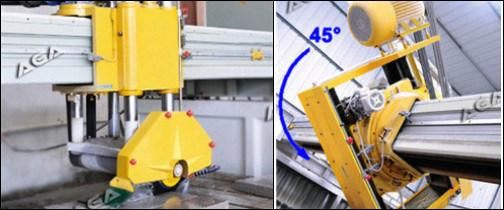

Bridge saw blade goes left and right, up and down, the bridge beam moves forward and backward. It moves flexible movements in X, Y, Z axis by screw. Blade tilt 45 degree for mitered cuts is optional.

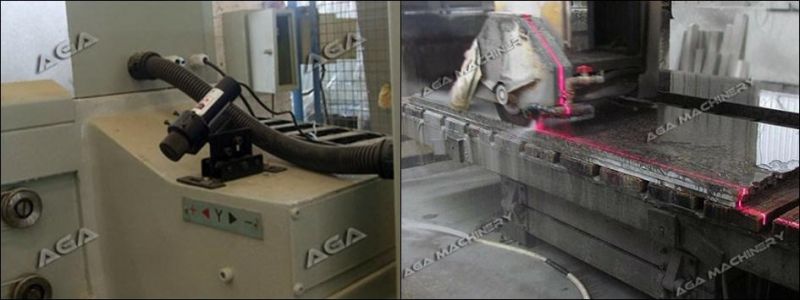

This bridge saw is an full automatic laser cutting machine. Laser guide shows the cutting position that makes the cutting easier and make precise cut +/-0.2mm. Cutting slabs, tiles, counter tops highly and perfect.

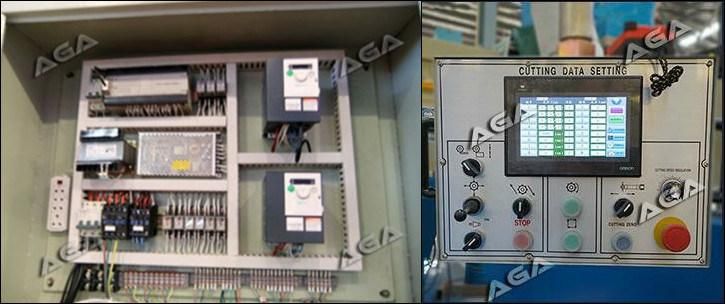

The bridg esaw is made with PLC standard. Electric system is simple and easy to operate. All functions are operated on the control panel with color touch screen. Electric parts are all from good international brands ensuring stable performance.


AGA Machienry:

1) AGA is professional:
AGA specilizes in stone machinery for marble and granite like bridge saw, block cutter, baluster machine, stone splitter, etc. AGA understand that machinery creats value for customers and every machine comes from sophisticated techonoloy and is manufactured by dedicated and experienced engineers under strict inspection and full test.
2) AGA is popular in world market:
The equipment have been successfully exported to world market in U.S.A, Canada, Europe, Mid East, Egypt, India,etc. Customers are happy with our machines.
3) AGA is passionate:
We care about customers because by choosing us you are giving a chance make your machine more productive that also mackes your products unrivaled in the competitive market. We supply pre-sell service and after-sell service.
