• Model NO.：PFW series
• Crushing Style：Impact
• Compressive Strength (For Crushing)：250-300MPA
• Crushing Degree：Intermediate Crusher
• Finished Surface：Hole Process
• Certification：CE, ISO, GOST
• Condition：New
• Color：Iron Grey
• Spare Parts Supply：for Whole Year
• Test&Installation：Engineer Assigned
• After-Sale Service：for Whole Using Life
• Export Markets：Global
• Transport Package：Standard Container
• Specification：SGS
• Trademark：Zenith
• Origin：Shanghai, China
• HS Code：8474209000
• Production Capacity：50-1000tph
• Package size per unit product：500.00cm * 300.00cm * 400.00cm
• Gross weight per unit product：5000.000kg

Basic Info.

Model NO. PFW series Crushing Style Impact Compressive Strength (For Crushing) 250-300MPA Crushing Degree Intermediate Crusher Finished Surface Hole Process Certification CE, ISO, GOST Condition New Color Iron Grey Spare Parts Supply for Whole Year Test&Installation Engineer Assigned After-Sale Service for Whole Using Life Export Markets Global Transport Package Standard Container Specification SGS Trademark Zenith Origin Shanghai, China HS Code 8474209000 Production Capacity 50-1000tph

Packaging & Delivery

Package size per unit product 500.00cm * 300.00cm * 400.00cm Gross weight per unit product 5000.000kg

Product Description

new type stone rock heavy duty vertical crusher introduction:

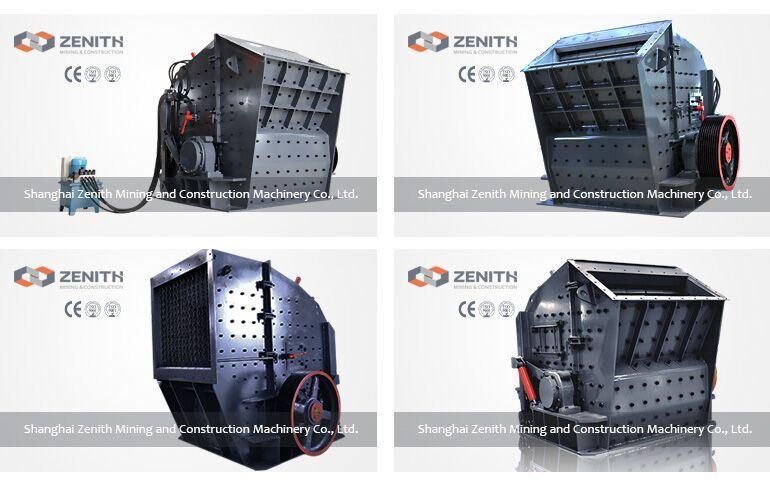

heavy duty vertical crusher are built on advanced technology with a combination of domestic applications. More human-oriented with simple design and reasonable structure, bigger and better cavity, higher capacity. PFW Series Impact Crusher can crush kinds of soft and medium-hard ore, for coarse, medium and fine crushing, in primary and secondary crushing process. The series can be widely used in mining, construction, chemical, cement, metallurgical, etc. Industries.


Features and Benefits for new type stone rock heavy duty vertical crusher:


1. High qualified raw material, less wear, high productivity under any circumstances. Top manufacturing process is the basis for extraordinary machine.
2. Strong product commonality can reduce cost. Two-cavity impact crusher can becomes three-cavity machine by adding grinding racks, and no need to change other parts.
3. Heavy type rotor, finite element endurance analysis, optimized design, reasonable structure and enhancing moment of inertia lead to bigger crushing ratio and better abrasion resistance.
4. Static and dynamic balancing test for the welding rotor should be done before assembling. To make sure the rotor have a smoothly running and long working life.
5. Main shaft is finished by quality forging, adopts keyless design and world advanced cover tightening connection to ensure the reliable working and make the maintenance easier.
6. Unique locking device for hammers makes the tightening moment of force more safe and bigger. And the replacement of hammers can be more simple and convenient.
7. Standard design for liners increase the interchangeability, decrease the repertory and variety of liners.
8. Simple but practical locking device lock the shell 1 and shell 2 together. This device has a easy operation and saves locking time.
9. Unique hydraulic device design is convenient for opening the fame racks to replace wear parts and adjust the discharge size.
10. Simple structure for impact racks and grinding racks. Easy operation, long working life, convenient maintenance and low cost.



new type stone rock heavy duty vertical crusher parameters:


Two-curtain cavity new type stone rock heavy duty vertical crusher

Model	Rotor Φ×L (mm)	Feed Opening (mm)	Max Feeding (mm)	Capacity (t/h)	Power (kw)	Motor Model	Machine Size (mm)
PFW1214II	1150×1400	1100×1430	500	130-200	4-132	Y315M-4/132	2400×2310×2550
PFW1315II	1300×1500	1200×1530	600	180-320	4-160	Y315L1-4/160	2700×2570×2800
PFW1318II	1300×1800	1200×1830	700	240-400	4-200	Y315L2-4/200	2700×2870×2800
PFW1415II	1400×1500	1450×1530	800	240-450	4-200	Y315L2-4/200	3000×2700×3070

Three-curtain cavity hydraulic impact crusher

Model	Rotor Φ×L (mm)	Feed Opening (mm)	Max Feeding (mm)	Capacity (t/h)	Power (kw)	Motor Model	Machine Size (mm)
PFW1214III	1150×1400	570×1430	250	90-170	4-132	Y315M-4/132	2550×2310×2100
PFW1315III	1300×1500	625×1530	300	180-270	4-160	Y315L1-4/160	2960×2570×2380
PFW1318III	1300×1800	625×1830	300	220-300	4-200	Y315L2-4/200	2960×2870×2380
PFW1415III	1400×1500	800×1530	350	280-350	4-200	Y315L2-4/200	3120×2650×2660
