• Model NO.：DS1600
• Control：CNC
• Certification：ISO, CE
• Max. Cut Length：3200 mm 126”
• Max. Cut Width：2200 mm 87”
• Horizontal Blade：Φ400 mm 16”
• Horizontal Blade Motor：15 Kw 20 HP
• Ize (L×w×h)：7×4.3×3.8 M
• Weight：11, 500 Kg
• Spindle Motor：75,90 Kw 102,122 HP
• Lift Stroke：1100,1350 mm 43”,53”
• Transport Package：Plastic Packing
• Specification：Max. blade size Φ 1600 mm 63”
• Trademark：AGA
• Origin：China
• HS Code：84641010
• Production Capacity：200sets,Month

Basic Info.

Model NO. DS1600 Control CNC Certification ISO, CE Max. Cut Length 3200 mm 126” Max. Cut Width 2200 mm 87” Horizontal Blade Φ400 mm 16” Horizontal Blade Motor 15 Kw 20 HP Ize (L×w×h) 7×4.3×3.8 M Weight 11, 500 Kg Spindle Motor 75/90 Kw 102/122 HP Lift Stroke 1100/1350 mm 43”/53” Transport Package Plastic Packing Specification Max. blade size Φ 1600 mm 63” Trademark AGA Origin China HS Code 84641010 Production Capacity 200sets/Month

Product Description

Marble Block Cutter with Horizontal Blade for Processing/Cutting Slabs

1.Product No.:DS1600
2.Good services and warranty.
3.High power and easily operation.



Basic Info:

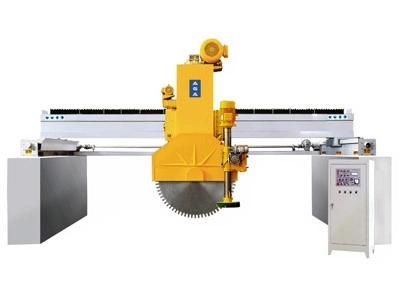

Marble block cutting machine with horizontal blade for slabs
Marble block cutter with horizontal blade to saw the block into slabs suitable for marble, limestone and sandstone. The machine is made of cast iron and works automatically by computer program and also capable of manual operation.

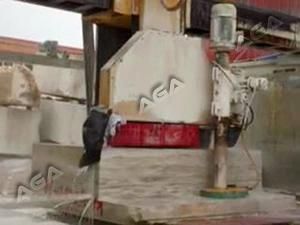

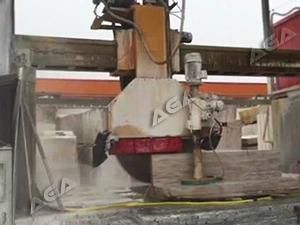

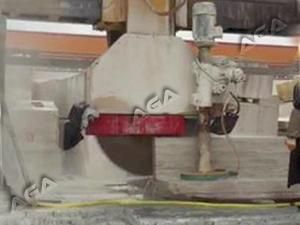

The cutter head goes left and right to saw the block into slabs and when one slab is finished the bridge beam moves backward to start the next slab cutting automatically.

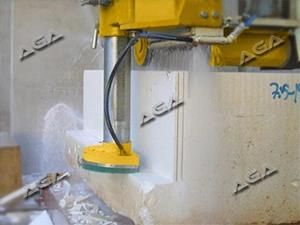

Also both the vertical blade and horizontal blade are working so it is easier to make the cut-through and get off the slab.
The bridge beam is very strong and also locked when cutting that provides excellent balance when working.

Working Detials:





Specification:


Max. blade size	Φ1600 mm  63"
Max. cut length	3200 mm  126"
Max. cut width	2200 mm  87"
Lift stroke	1100/1350 mm  43"/53"
Spindle motor	75/90 Kw  102/122 HP
Horizontal blade	Φ400 mm  16"
Horizontal blade motor	15 Kw  20 HP
Water consumption	8 m³/h
Size (L×W×H)	7×4.3×3.8 m
Weight	11,500 Kg



FAQ:
1, How to pay to you ?
 T/T in advance. We accept 30% deposit , 70% before shipment

2, How long is the delivery time?
For standard machines, it would be 2-5 weeks; For non-standard machines and customized machines according to client s specific requirements, it would be 10 days longer.

3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.

4,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

5, How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
Save space as much as possible for container loading .

Our Company:
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable service. The products include bridge saw,block cutter,polishing machine as well as equipments for other construction stones.The equipments have been successfully exported to world stone market in U.S.A.,Canada, Europe, Mid East, Egypt, India,etc.






AGA understands that machinery creates value for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers  in their pursuit of a true competitive advantage. our philosophy is all about  professional entrepreneurship and perfectly serving our clients and the mission is to help customers because by choosing us you are giving us a chance to make your machine more productive that also make your products unrivaled in the competitive market and we are happy to do that professionally and passionately.

Other products:
Stone cutting machine, multi blades block cutter, automatic bridge cutting machine, bridge saw, edge cutting machine, edge polishing machine, profile cutting machine, arm polisher machine, splitting machine, pressing machine, stone crusher.
